APC NetShelter Rack PDU Advanced

View all APC Power Strips | Adapters - Visit the APC Store (APDU10350ME) - (WCEAPDU10350ME)

NetShelter Rack PDU Advanced - power distribution unit - metered - 17.3 kW - 17300 VA

Efficient power distribution
Advanced connectivity options
Comprehensive circuit protection
Environmental adaptability
Standards compliance

FREE Delivery on orders over €250

2 Available to Ship
Order within 17Hrs 15Mins for: FREE Delivery (8 Jun or 9 Jun)

€2069.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

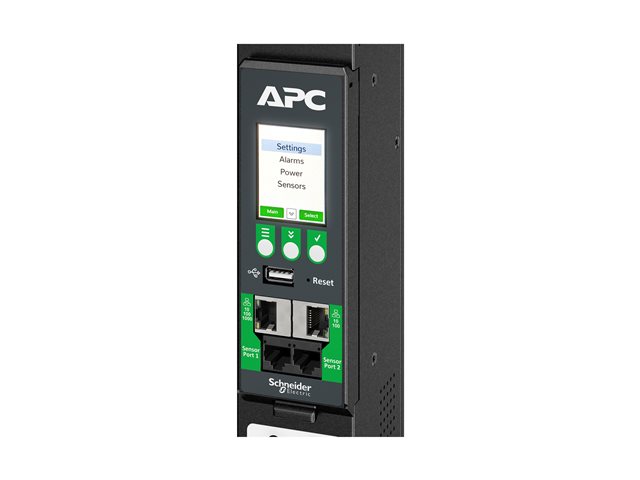

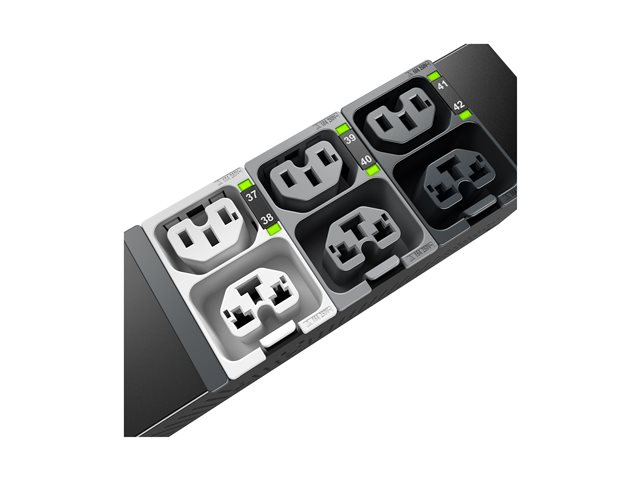

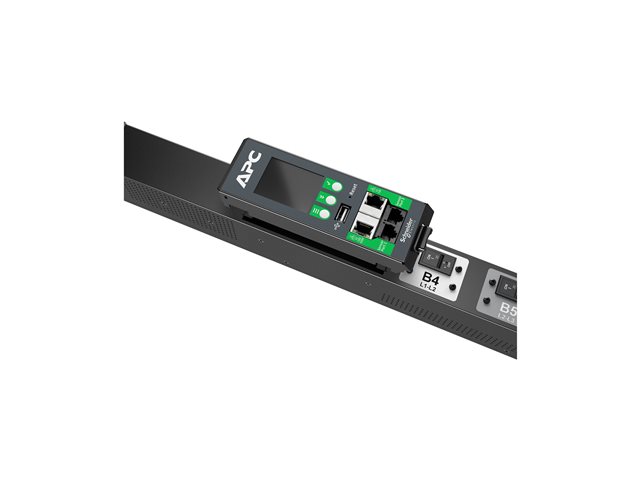

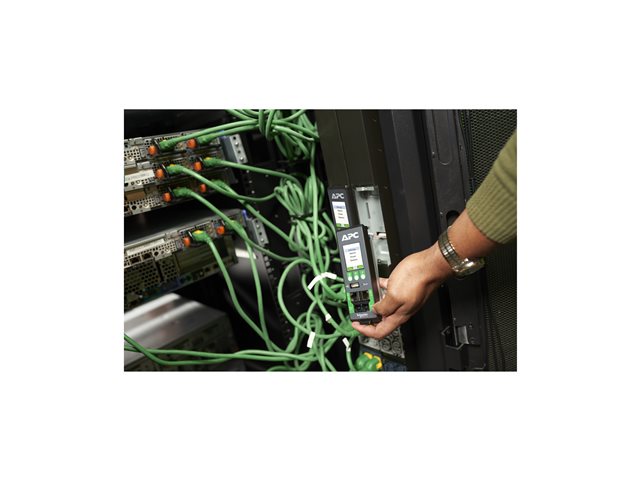

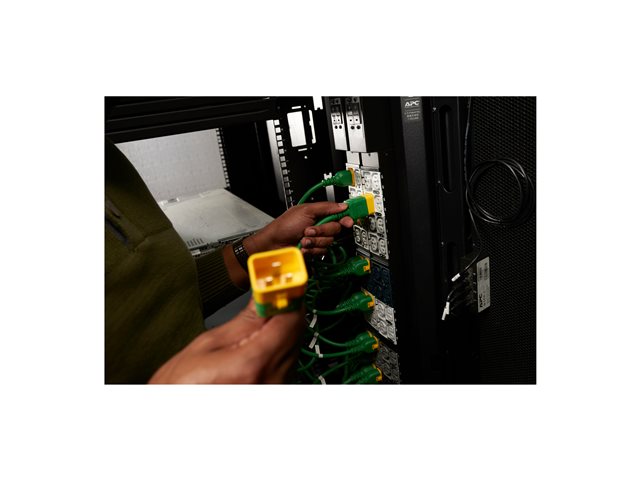

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Specification Summary

Product Description

APC NetShelter Rack PDU Advanced - power distribution unit - metered - 17.3 kW - 17300 VA

Device Type

Power distribution unit - rack-mountable

Cord Length

1.8 m

Rack Size

Weight

8.4 kg

Input Wiring

3-phase

Input Voltage

AC 400/415 V

Output Voltage

AC 240 V

Power Capacity

17.3 kW / 17300 VA

Input Connectors

1 x power IEC 60309 530P6

Output connectors

24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15

Networking

Ethernet 10/100/1000, Ethernet 10/100

Colour

Black

Dimensions (WxDxH)

5.6 cm x 7.5 cm x 178 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0731304439714

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

1.8 m

Colour

Black

Power Device

Input Voltage

AC 400/415 V

Input Voltage Range

AC 346 - 415 V

Input Wiring

3-phase

Frequency Required

50/60 Hz

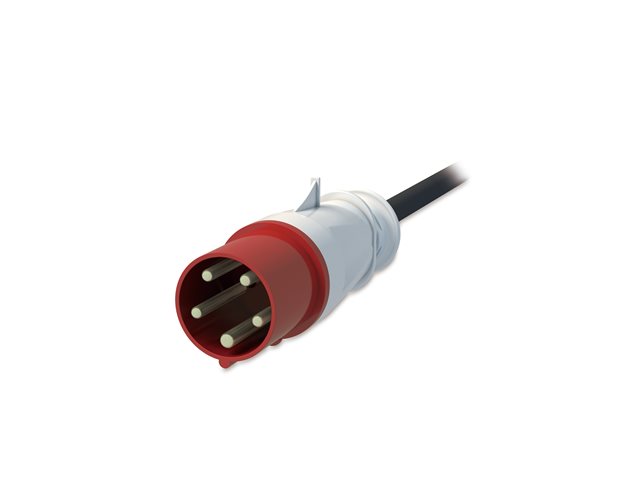

Input Connectors

1 x power IEC 60309 530P6

Power Output Connectors Details

24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15

Output Voltage

AC 240 V

Max Electric Current

30 A

Power Capacity

17.3 kW / 17300 VA

Circuit Protection

Circuit breaker

Networking

Remote Management Interface

Ethernet 10/100/1000, Ethernet 10/100

Expansion / Connectivity

Interfaces

1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ Sensor ¦ Cascading

Miscellaneous

Cables Included

Power cable 1.8 m

Features

Colour-coded, LCD display, cascadable, Hydraulic-Magnetic breakers, environmental sensor ready, remote metered, overload protection

Compliant Standards

CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 B, UKCA, UL 62368-1, RoHS, EU RoHS, China RoHS, WEEE, IEC 62053-21

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.6 cm

Depth

7.5 cm

Height

178 cm

Weight

8.4 kg

Dimensions & Weight (Shipping)

Shipping Width

26.2 cm

Shipping Depth

13.2 cm

Shipping Height

198 cm

Shipping Weight

11.4 kg
