APC NetShelter Rack PDU Advanced

View all APC Power Strips | Adapters - Visit the APC Store (APDU10150SW) - (ECE8425942)

NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched, 230V, 32A - AC 200-240 V - 7.4 kW - 7400 VA - 1-phase - Ethernet 10/100/1000, Ethernet 10/100 - input: IEC 60309 332P6 - output connectors: 40 (20 x IEC 60320 C13/C15/

Efficient power distribution
Advanced connectivity options
Robust environmental compliance

FREE Delivery on orders over €250

0 Available to Ship
Restock 01-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€2490.75~~

€2019.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

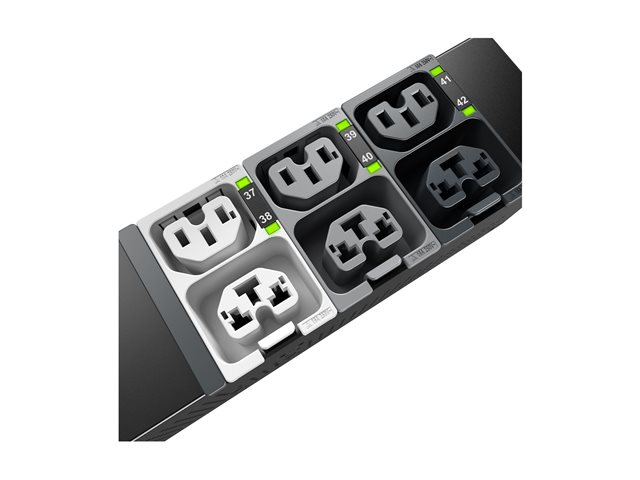

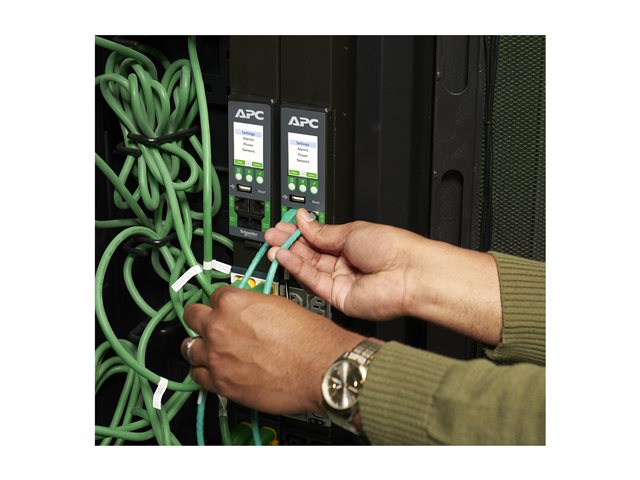

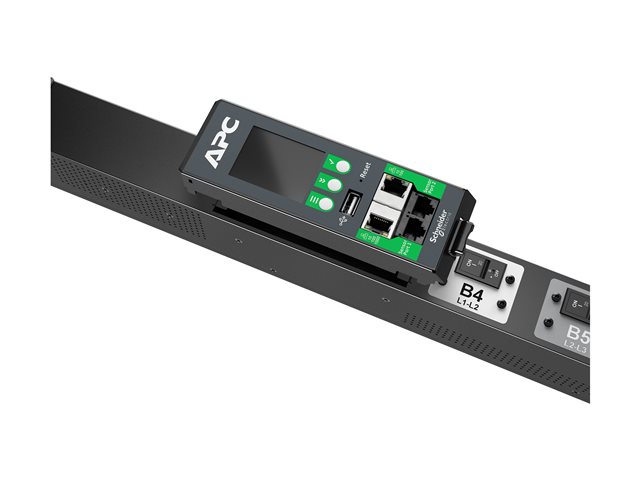

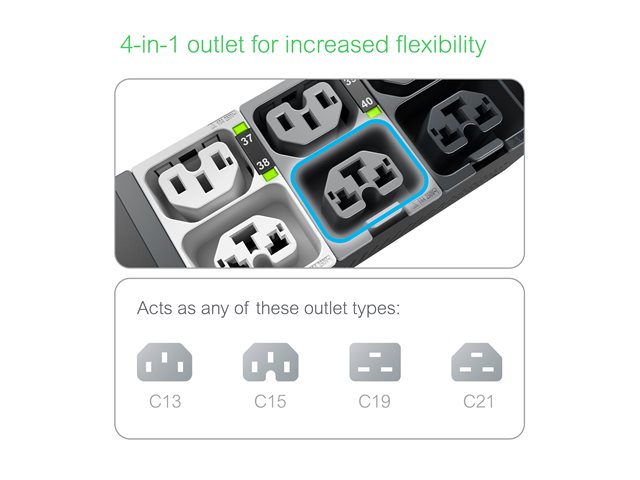

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.

Features Summary

Efficient power distribution
The APC NetShelter Rack PDU Advanced ensures efficient power distribution with a capacity of 7.4 kW, supporting a wide range of operating temperatures from -5°C to 60°C. Its 40 output connectors, including types C13, C15, C19, and C21, cater to diverse power needs, making it a versatile solution for any setup.
Advanced connectivity options
Equipped with management interfaces for both Gigabit and Fast Ethernet, alongside sensor and USB connections, this power distribution unit offers connectivity options. It enables seamless integration and management within any network infrastructure, ensuring reliable power distribution and monitoring.
Robust environmental compliance
Adhering to multiple compliance standards such as China RoHS, EN 62368-1, EU RoHS, REACH, and UKCA, the APC NetShelter Rack PDU Advanced demonstrates a commitment to environmental sustainability and safety. Its TAA compliance further ensures it meets the requirements for government procurement.

Specification Summary

Product Description

APC NetShelter Rack PDU Advanced - power distribution unit - switched, 230V, 32A - 7.4 kW - 7400 VA - TAA Compliant

Device Type

Power distribution unit - rack-mountable

Cord Length

3 m

Rack Size

Weight

7.4 kg

Input Wiring

1-phase

Input Voltage

AC 200-240 V

Output Voltage

AC 230 V

Power Capacity

7.4 kW / 7400 VA

Input Connectors

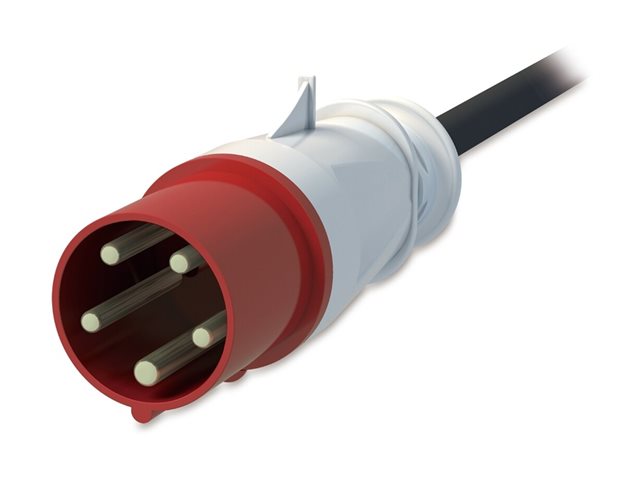

1 x power IEC 60309 332P6

Output connectors

20 x power IEC 60320 C13/C15/C19/C21 ¦ 20 x power IEC 60320 C13/C15

Networking

Ethernet 10/100/1000, Ethernet 10/100

Colour

Black

TAA Compliant

Yes

Dimensions (WxDxH)

5.6 cm x 7.5 cm x 149 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

731304439660

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

3 m

Colour

Black

Power Device

Input Voltage

AC 200-240 V

Input Wiring

1-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 332P6

Power Output Connectors Details

20 x power IEC 60320 C13/C15/C19/C21 ¦ 20 x power IEC 60320 C13/C15

Output Voltage

AC 230 V

Max Electric Current

32 A

Power Capacity

7.4 kW / 7400 VA

Networking

Remote Management Interface

Ethernet 10/100/1000, Ethernet 10/100

Expansion / Connectivity

Interfaces

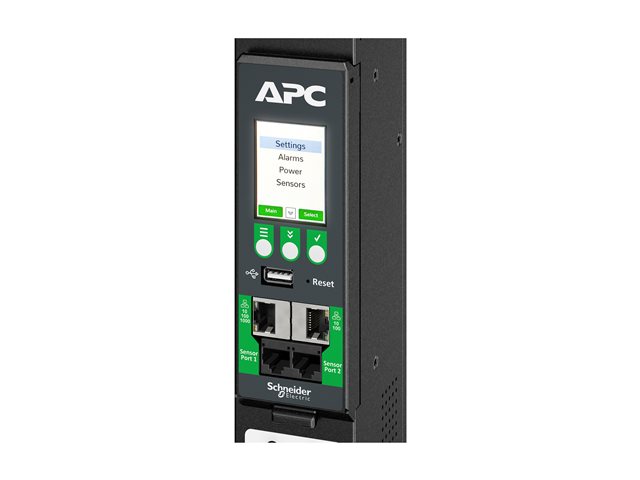

1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x sensor ¦ 1 x USB - 4 pin USB Type A

Miscellaneous

Cables Included

Power cable 3 m

Features

Vertical orientation, switched, LCD display, cascadable, alarm thresholds

Compliant Standards

UKCA, EN 62368-1, China RoHS, REACH, EU RoHS

TAA Compliant

Yes

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.6 cm

Depth

7.5 cm

Height

149 cm

Weight

7.4 kg

Dimensions & Weight (Shipping)

Shipping Width

11.6 cm

Shipping Depth

20.8 cm

Shipping Height

172 cm

Shipping Weight

9.4 kg
