APC Basic Rack-Mount PDU - power distribution stri

Images Manuals

Images for illustrative purposes

APC Basic Rack-Mount PDU

Name: APC Basic Rack-Mount PDU
Brand: APC
SKU: WCEAP9559
Price: 415.58 EUR
Availability: InStock
Rating: 4.7 (2 reviews)

View all APC Power Strips | Adapters - Visit the APC Store (AP9559) - (WCEAP9559)

4.7(2)

Basic Rack-Mount PDU - power distribution strip

Rack-Mountable

FREE Delivery on orders over €250

2 Available to Ship
Order within 5Hrs 17Mins for: FREE Delivery (11 Aug or 12 Aug)

RRP ~~€491.99~~

€415.58 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

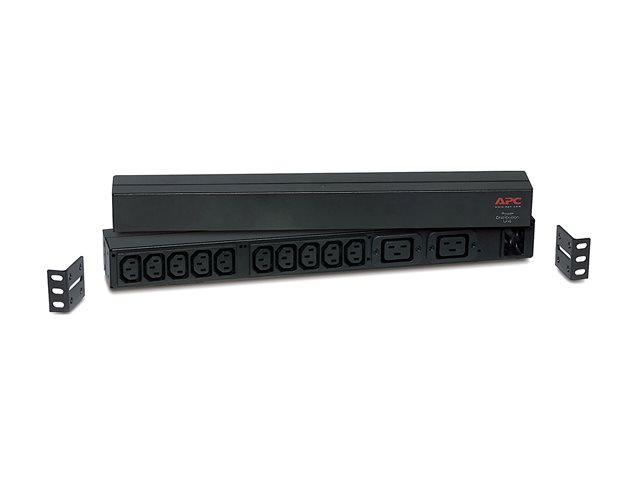

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Features Summary

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Specification Summary

Product Description

APC Basic Rack-Mount PDU - power distribution strip

Device Type

Power distribution strip - rack-mountable

Cord Length

2.49 m

Weight

1 kg

Localisation

Worldwide

Input Voltage

AC 208/230 V

Input Connectors

1 x power IEC 60320 C20

Output connectors

10 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Colour

Black

Dimensions (WxDxH)

44.7 cm x 5.7 cm x 4.5 cm

Manufacturer Warranty

2-year warranty

Designed For

P/N: SCL500RM1U, SCL500RMI1U, SMTL2K2RM2UCL, SMTL2K2RM2UCLNC, SMTL3000RM2UC, SMTL3000RM2UCNC, SMTL3KRM2UCL, SMTL3KRM2UCLNC, SMX1000CUS, SMX1500RM2UCNCUS, SMX1500RM2UCUS, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS, SRTL2K2RM1UWC, SRTL2K2RM1UWNC, SRTL3KRM1UIC, SRTL3KRM1UINC, SRTL3KRM1UWC, SRTL3KRM1UWNC

Specifications

EAN / GTIN:

731304123521

General

Device Type

Power distribution strip - rack-mountable

Cord Length

2.49 m

Colour

Black

Localisation

Worldwide

Power Device

Input Voltage

AC 208/230 V

Input Voltage Range

AC 90 - 250 V

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

10 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Compliant Standards

UL, cUL

Miscellaneous

Rack Mounting Kit

Included

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Min Storage Temperature

-25 °C

Max Storage Temperature

65 °C

Humidity Range Operating

0 - 95%

Humidity Range Storage

0 - 95%

Dimensions & Weight

Width

44.7 cm

Depth

5.7 cm

Height

4.5 cm

Weight

1 kg

Compatibility Information

Designed For

P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL2200RM2UC, SMTL2200RM2UCNC, SMTL2K2RM2UCL, SMTL2K2RM2UCLNC, SMTL3000RM2UC, SMTL3000RM2UCNC, SMTL3KRM2UCL, SMTL3KRM2UCLNC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000CUS, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RM2UCNCUS, SMX1500RM2UCUS, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750US, SPD10KCBL, SPD20KCBL, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLTUS, SRT5KRMXLW-TW, SRT6KRMXLI-6W, SRT6KRMXLIM, SRTL2K2RM1UWC, SRTL2K2RM1UWNC, SRTL3KRM1UIC, SRTL3KRM1UINC, SRTL3KRM1UWC, SRTL3KRM1UWNC, SUA2200ICH-45, SUA3000I-IN, SYAF16KRMICH, SYAF8KRMTX424
