Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

It is a switched rack PDU with a maximum current capacity of 32A and an input voltage of 230V. It features 16 IEC 60320 C13 outlets and an IEC 60309 309 input connection. The PDU has a 2U form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is CE and VDE certified, ensuring high safety and performance standards.


Specification Summary

Product Description

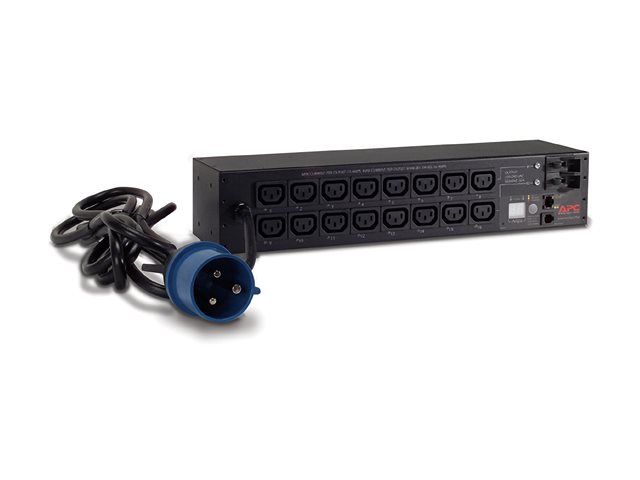

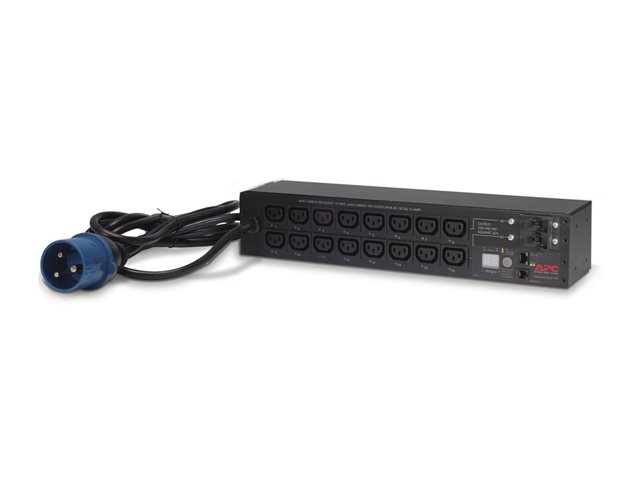

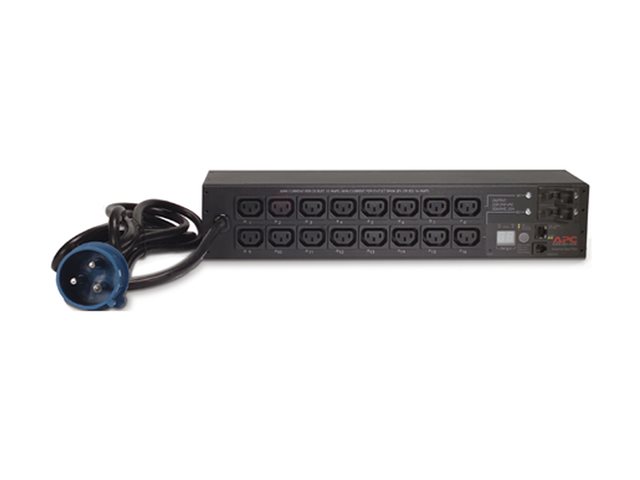

APC Switched Rack PDU AP7922B - power distribution unit
Device Type
Power distribution unit - rack-mountable
Cord Length
3.66 m
Rack Size
2U
Weight
4.49 kg
Input Voltage
AC 230 V
Input Connectors
1 x power IEC 60309 32A
Output connectors
16 x power IEC 60320 C13
Networking
Ethernet 10/100
Remote Management Protocol
SNMP, Telnet, HTTP, SSH
Dimensions (WxDxH)
44.45 cm x 11.43 cm x 8.89 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT1000RMXLI-NC, SRT5KRMXLW-TW, SRVSL1KRARK

Specifications

EAN / GTIN:
731304331636
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Cord Length
3.66 m
Power Device
Input Voltage
AC 230 V
Input Voltage Margin
± 10%
Frequency Required
47 - 63 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
16 x power IEC 60320 C13
Max Electric Current
32 A
Networking
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP, Telnet, HTTP, SSH
Expansion / Connectivity
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x serial - RJ-11
Miscellaneous
Cables Included
Power cable 3.66 m
Features
LED display, current meter, overload protection
Compliant Standards
EN55022, VDE, EN55024, CISPR 22, AS/NZS, EAC
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Dimensions & Weight
Width
44.45 cm
Depth
11.43 cm
Height
8.89 cm
Weight
4.49 kg
Dimensions & Weight (Shipping)
Shipping Weight
6.53 kg
Compatibility Information
Designed For
P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX429, AR4038IX431, AR4038IX432, AR8213, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SRVSL1KRARK, SURT3000XLI-ET, SURT5000XLIX438, SYAF16KRMICH, SYAF8KRMTX424
