Images for illustrative purposes
<%=manufacture1 %> Logo FREE Delivery on orders over €250

0 Available to Ship
Restock 18-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP €1130.37
939.74 Incl Vat




Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

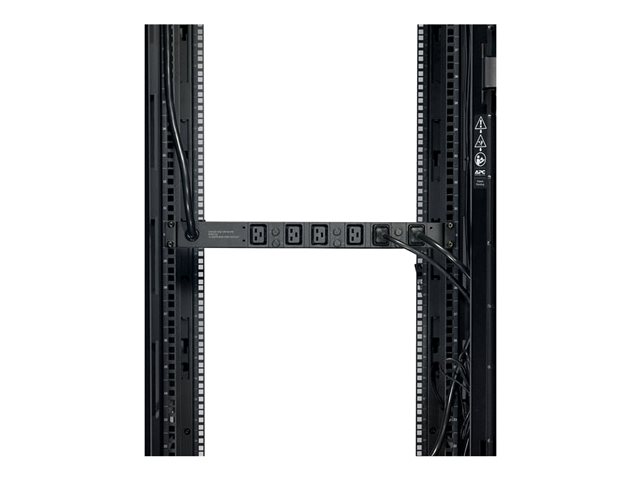

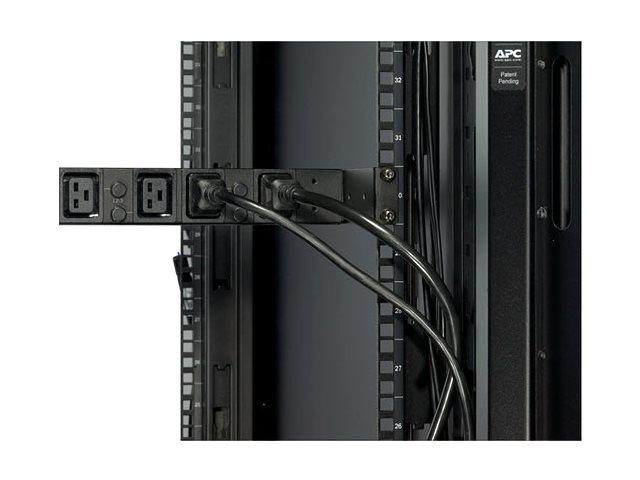

APC NetShelter PDUs help IT pros supply reliable power to their servers and networks. This APC NetShelter Basic Rack PDU comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions. It provides (6) IEC 60320 C19 outlets to supply power to rack equipment. Hydraulic magnetic breakers protect from overloads and enable quick recovery are low profile. Mounting is easy and does not require additional tools in APC NetShelter Enclosures and most third-party racks.


Specification Summary

Product Description

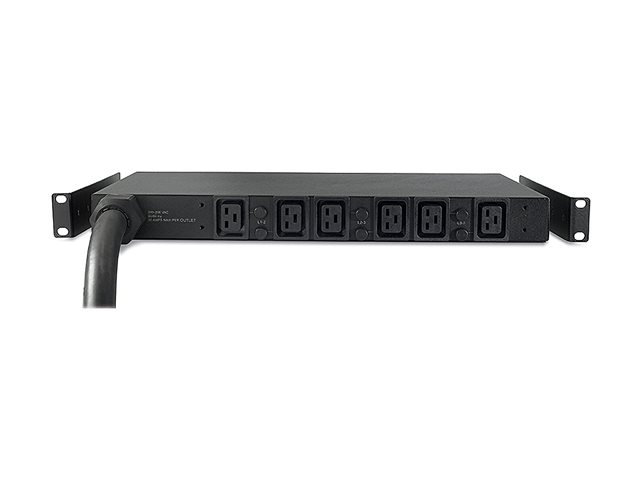

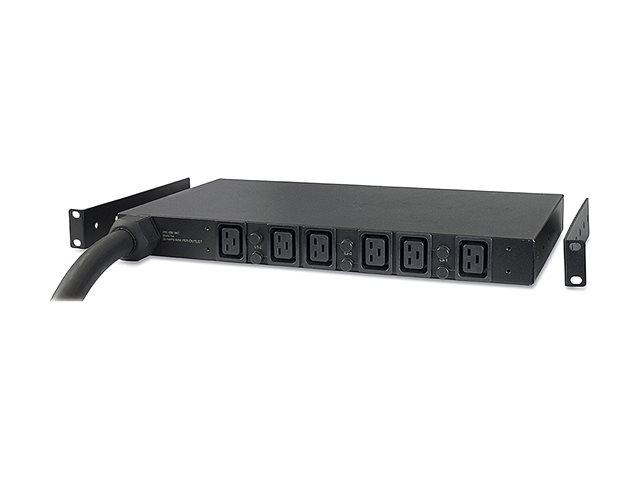

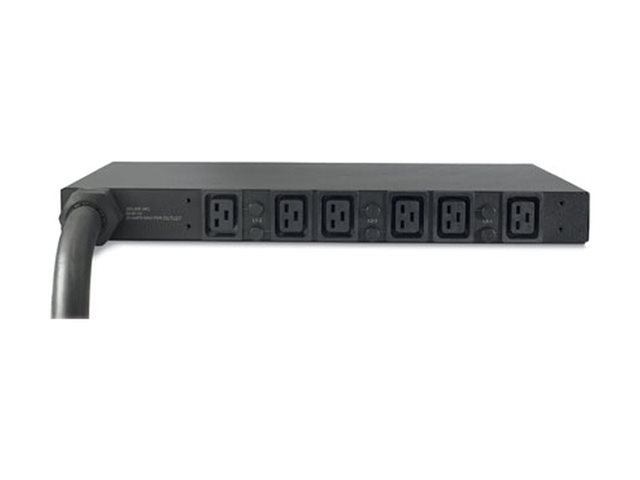

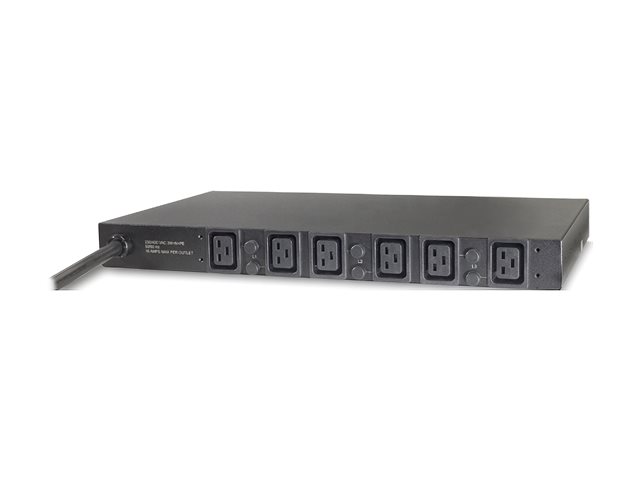

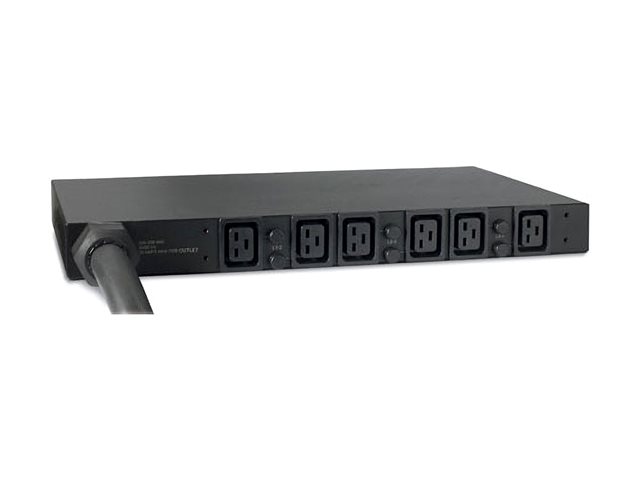

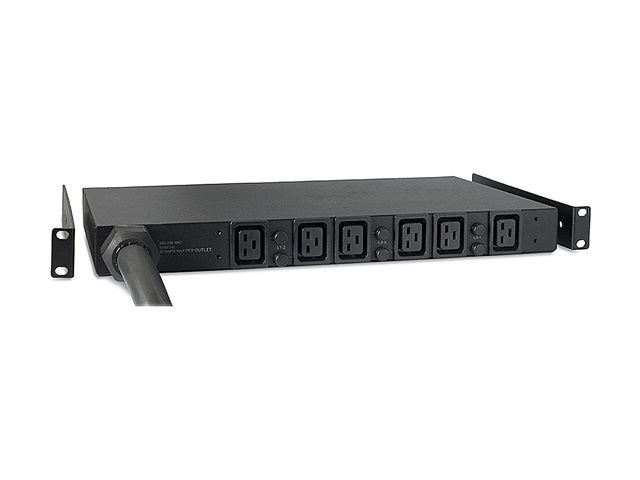

APC Basic Rack PDU - power distribution unit - 22 kW
Device Type
Power distribution unit - rack-mountable
Cord Length
2.44 m
Weight
4.84 kg
Input Wiring
3-phase
Input Voltage
AC 400 V
Output Voltage
AC 230 V
Power Capacity
22 kW
Input Connectors
1 x power IEC 60309
Output connectors
6 x power IEC 60320 C19
Colour
Black
Dimensions (WxDxH)
43.7 cm x 25.4 cm x 4.4 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT1000RMXLI-NC, SRT5KRMXLW-TW

Specifications

EAN / GTIN:
731304232667
General
Device Type
Power distribution unit - rack-mountable
Cord Length
2.44 m
Colour
Black
Power Device
Input Voltage
AC 400 V
Input Wiring
3-phase
Frequency Required
47 - 63 Hz
Input Connectors
1 x power IEC 60309
Power Output Connectors Details
6 x power IEC 60320 C19
Output Voltage
AC 230 V
Max Electric Current
32 A
Power Capacity
22 kW
Miscellaneous
Cables Included
Power cable - integrated - 2.44 m
Features
Overload protection
Compliant Standards
GOST, VDE, RoHS, REACH
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Dimensions & Weight
Width
43.7 cm
Depth
25.4 cm
Height
4.4 cm
Weight
4.84 kg
Dimensions & Weight (Shipping)
Shipping Width
55.9 cm
Shipping Depth
50.2 cm
Shipping Height
24.1 mm
Shipping Weight
6.98 kg
Compatibility Information
Designed For
P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X610, AR3150X617, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SURT3000XLI-ET, SURT5000XLIX438, SYA12K16RMICH, SYAF16KRMICH, SYAF8KRMTX424
