Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

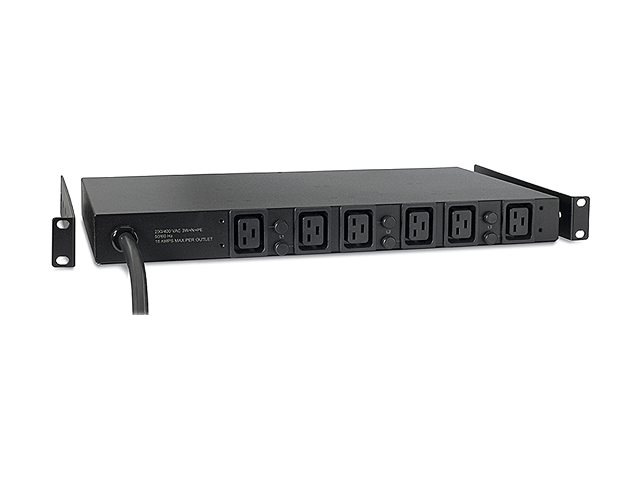

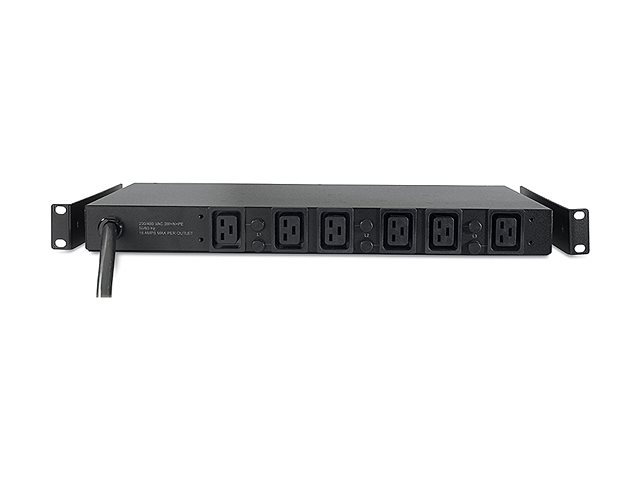

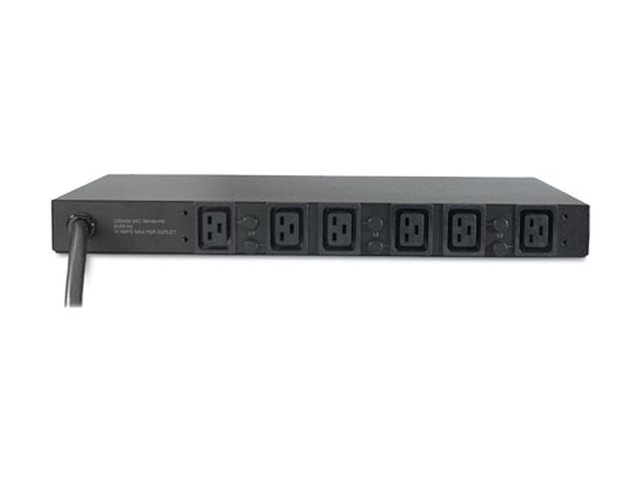

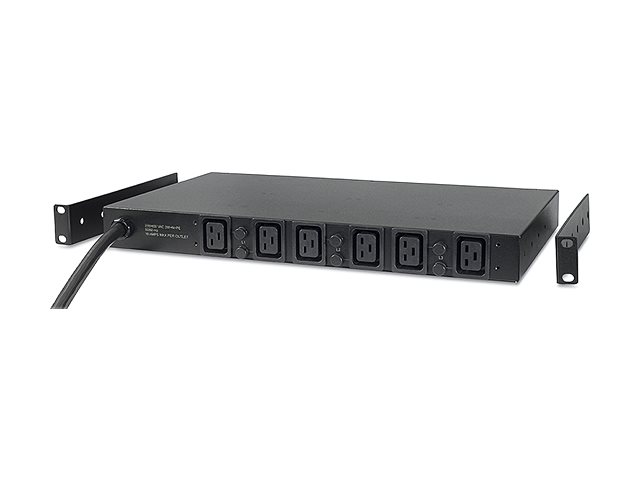

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.


Specification Summary

Product Description
APC Basic Rack PDU - power distribution strip
Device Type
Power distribution strip - rack-mountable
Cord Length
2.4 m
Rack Size
1U
Weight
6.6 kg
Input Wiring
3-phase
Input Voltage
AC 208 V
Input Connectors
1 x Hubbell CS8365C
Output connectors
6 x power IEC 60320 C19
Dimensions (WxDxH)
43.7 cm x 25.4 cm x 4.4 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UCNC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT5KRMXLW-TW

Specifications

EAN / GTIN:
731304232674
General
Device Type
Power distribution strip - rack-mountable
Height (Rack Units)
1U
Cord Length
2.4 m
Power Device
Input Voltage
AC 208 V
Input Voltage Margin
± 10%
Input Wiring
3-phase
Frequency Required
47 - 63 Hz
Input Connectors
1 x Hubbell CS8365C
Power Output Connectors Details
6 x power IEC 60320 C19
Max Electric Current
40 A
Circuit Protection
Circuit breaker
Miscellaneous
Cables Included
Power cable 2.4 m
Compliant Standards
UL, cUL, UL 60950, CSA 22.2 No. 60950
Manufacturer Warranty
Service & Support
2-year warranty
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Dimensions & Weight
Width
43.7 cm
Depth
25.4 cm
Height
4.4 cm
Weight
6.6 kg
Compatibility Information
Designed For
P/N: ACDC2513, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X610, AR3150X617, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR8213, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RM2UCNC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SURT3000XLI-ET, SURT5000XLIX438, SYA12K16RMICH, SYAF16KRMICH, SYAF8KRMTX424
