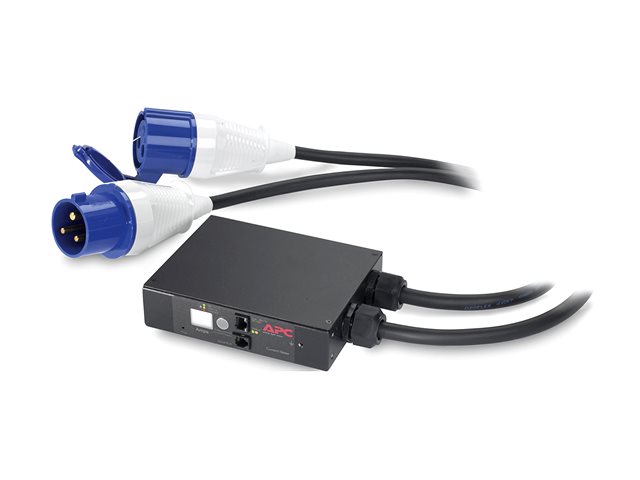

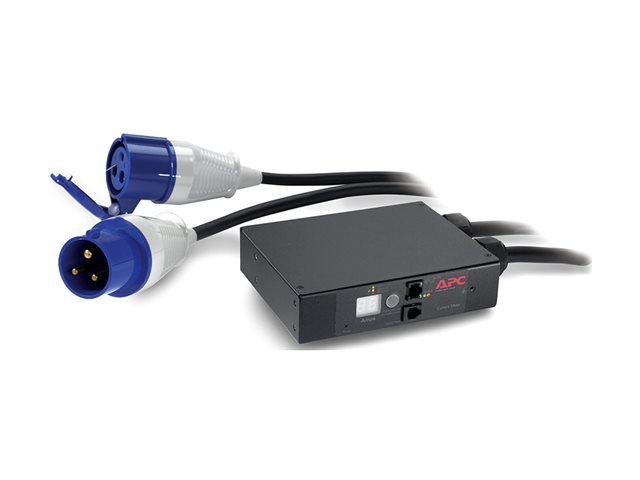

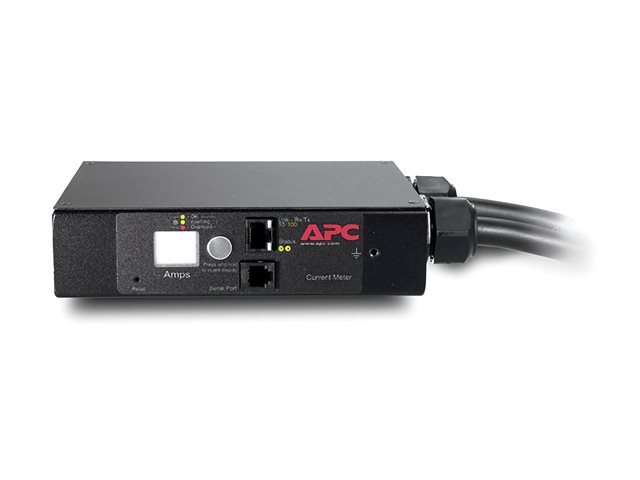

APC In-Line Current Meter AP7155B

View all APC Power Accessories - Visit the APC Store (AP7155B) - (ECE4110137)

In-Line Current Meter AP7155B - Current monitoring device - AC 230 V - Ethernet 10/100, RS-232 - output connectors: 1 - for P/N: SCL500RM1U, SCL500RMI1U, SMTL1000RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS

Network management
Local and web-based monitoring
Flash Upgradeable
Local Current Monitoring Display
Remote Management Capabilities
Single input power source
View More
Alarm Thresholds
InfraStruXure Manager Compatible
Multiple mounting methods

FREE Delivery on orders over €250

0 Available to Ship
Restock 02-Sep-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€724.47~~

€629.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

It is an in-line current meter designed to measure and display the current being drawn by connected equipment. It supports a maximum current of 32A and operates at 230V. The meter features a digital display for real-time monitoring and includes an installation guide.

Features Summary

Network management
Provides proactive power and environmental management via web and/or SNMP
Local and web-based monitoring
Status available to customers both in the data center and remotely
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Multiple mounting methods
Allows for standardization on one product for use in different environments.

Specification Summary

Product Description

APC In-Line Current Meter AP7155B - current monitoring device

Device Type

Current monitoring device

Weight

1.84 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Input Connectors

1 x power IEC 60309 32A

Output connectors

1 x power IEC 60309 32A

Networking

Ethernet 10/100, RS-232

Remote Management Protocol

SNMP, Telnet, HTTP

Dimensions (WxDxH)

17.78 cm x 13.97 cm x 4.39 cm

Designed For

P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, SCL400RMJ1U, SCL500RM1U, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT5KRMXLW-TW

Specifications

EAN / GTIN:

731304331438

General

Device Type

Current monitoring device

Power Device

Input Voltage

AC 230 V

Input Voltage Margin

± 10%

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 32A

Power Output Connectors Details

1 x power IEC 60309 32A

Output Voltage

AC 230 V

Max Electric Current

32 A

Networking

Remote Management Interface

Ethernet 10/100, RS-232

Remote Management Protocol

SNMP, Telnet, HTTP

Expansion / Connectivity

Interfaces

1 x management (Ethernet) - RJ-45 ¦ 1 x management (RS-232) - RJ-11

Miscellaneous

Cables Included

2 x power cable 91 cm

Features

LCD display, LED indicators

Compliant Standards

VCCI, ICES-003, VDE, EN55024, FCC Part 15, EAC, AS/NZS CISPR 22

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 95% (non-condensing)

Dimensions & Weight

Width

17.78 cm

Depth

13.97 cm

Height

4.39 cm

Weight

1.84 kg

Dimensions & Weight (Shipping)

Shipping Width

33.02 cm

Shipping Depth

18.54 cm

Shipping Height

24.63 cm

Shipping Weight

2.37 kg

Compatibility Information

Designed For

P/N: ACDC2513, AP6453CH, AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SURT3000XLI-ET, SURT5000XLIX438, SYAF16KRMICH, SYAF8KRMTX424
