APC Basic Rack PDU AP6038A - power distribution un

Images Manuals

Images for illustrative purposes

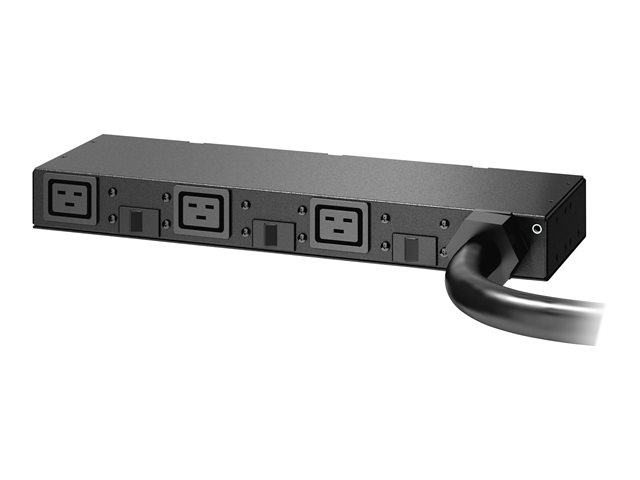

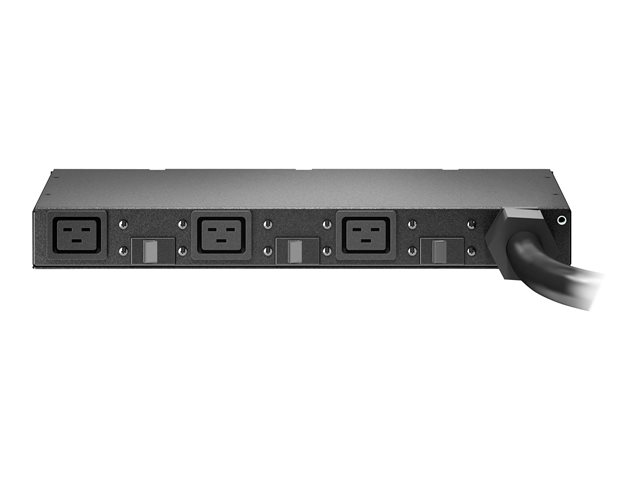

APC Basic Rack PDU AP6038A

View all APC Power Strips | Adapters - Visit the APC Store (AP6038A) - (ECE3911393)

Basic Rack PDU AP6038A - Power distribution unit (rack-mountable) - AC 200-240 V - input: IEC 60309 63A - output connectors: 3 (IEC 60320 C19 16A) - 3.65 m cord - for P/N: SCL500RM1U, SCL500RMI1U, SMTL1000RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C

Efficient power distribution
Advanced environmental adaptability
Comprehensive protection features

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€872.07~~

€729.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 48A and operates at 230V. The PDU features 3 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with an IEC 60309 63A 2P + PE plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.

Specification Summary

Product Description

APC Basic Rack PDU AP6038A - power distribution unit

Device Type

Power distribution unit - rack-mountable

Cord Length

3.65 m

Weight

5.4 kg

Input Voltage

AC 200-240 V

Output Voltage

AC 200-240 V + 6% / - 10%

Input Connectors

1 x power IEC 60309 63A

Output connectors

3 x power IEC 60320 C19 16A

Dimensions (WxDxH)

4.36 cm x 12.57 cm x 38.81 cm

Designed For

P/N: AR3103SP, AR3106SP, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT5KRMXLW-TW

Specifications

EAN / GTIN:

731304321972

General

Device Type

Power distribution unit - rack-mountable

Cord Length

3.65 m

Power Device

Input Voltage

AC 200-240 V

Input Voltage Margin

+ 6% / - 10%

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 63A

Power Output Connectors Details

3 x power IEC 60320 C19 16A

Output Voltage

AC 200-240 V + 6% / - 10%

Max Electric Current

48 A

Miscellaneous

Cables Included

Power cable - integrated - 3.65 m

Features

Breaker protection, over current protection

Compliant Standards

UL, VDE, RoHS 2011/65/EU

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 95% (non-condensing)

Dimensions & Weight

Width

4.36 cm

Depth

12.57 cm

Height

38.81 cm

Weight

5.4 kg

Dimensions & Weight (Shipping)

Shipping Width

39.49 cm

Shipping Depth

19.5 cm

Shipping Height

50.01 cm

Shipping Weight

8.3 kg

Compatibility Information

Designed For

P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR8213, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SURT3000XLI-ET, SURT5000XLIX438, SYAF16KRMICH, SYAF8KRMTX424, VDIM33174
