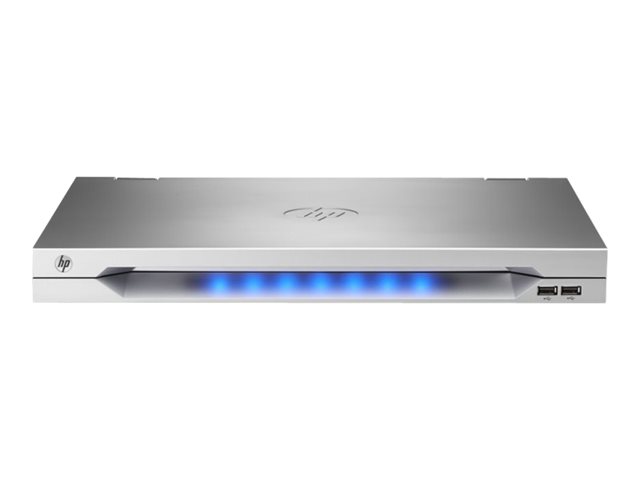

HPE LCD8500

View all HPE Monitors - Visit the HPE Store (AF644A) - (ECE3359917)

LCD 8500 1U Console INTL Kit

Ultra-Dense, High-Performance KVM Console Display and Keyboard
Advanced, Ergonomic Design

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

0 Available to Ship
Restock 01-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€903.93 Incl Vat

Bulk Pricing from €890.37

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Need a console with the latest in KVM technology to manage the servers in your rack? Knowledge is power – know what's going on right at the rack with HPE KVM. HPE KVM Console Kits provides high-performance display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HPE LCD8500 with 18.5-inch WXGA TFT LCD Brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 features a silver enclosure making identification in the rack easier. The integrated keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. Also included, is a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.

Specification Summary

Product Description

HPE LCD8500 - KVM console - 18.51"

Device Type

KVM console - 18.51"

KVM Switch

USB

Features

Keyboard, touchpad

Native Resolution

1600 x 1200 at 60 Hz

Brightness

187 cd/m²

Contrast Ratio

700:1

Response Time

16 ms

Voltage

AC 120/230 V (50/60 Hz)

Colour

Silver

Dimensions (WxDxH)

43.61 cm x 43.3 cm x 4.23 cm

Height (Rack Units)

Weight

5.2 kg

Compliant Standards

WEEE

Manufacturer Warranty

3-year warranty

Designed For

ProLiant DL120 Gen9, DL160 Gen8, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL320e Gen8, DL360e Gen8, DL360p Gen8, DL380 Gen9, DL380e Gen8, DL380p Gen8, DL385p Gen8, DL580 Gen9, DL60 Gen9, DL80 Gen9, MicroServer Gen8, ML110 Gen9, ML150 Gen9, ML310e Gen8, ML350e Gen8

Specifications

EAN / GTIN:

887758933077

General

Display Type

KVM console / TFT active matrix

Diagonal Size

18.51"

Native Resolution

1600 x 1200 at 60 Hz

Brightness

187 cd/m²

Contrast Ratio

700:1

Response Time

16 ms

Controls & Adjustments

Brightness, contrast

OSD Languages

Chinese (simplified), English, German, French, Italian, Spanish, Japanese

Colour

Silver

Dimensions (WxDxH)

43.61 cm x 43.3 cm x 4.23 cm

Height (Rack Units)

Weight

5.2 kg

Input

Type

Keyboard, touchpad

KVM

Keyboard / Mouse Interface

USB

Connectivity

Interfaces

2 x USB

Miscellaneous

Mounting Kit

Included

Compliant Standards

WEEE

Power

Input Voltage

AC 120/230 V (50/60 Hz)

Power Consumption (Typical)

36 Watt

Manufacturer Warranty

Service & Support

Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% (non-condensing)

Compatibility Information

Designed For

HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Base, DL320e Gen8 v2 Entry, DL320e Gen8 v2 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HANA Scale-up Base Configuration, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, MicroServer Gen8, MicroServer Gen8 Base, MicroServer Gen8 Entry, MicroServer Gen8 Performance, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML310e Gen8, ML310e Gen8 v2, ML310e Gen8 v2 Base, ML310e Gen8 v2 Enty, ML310e Gen8 v2 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350e Gen8 v2 Entry
