HPE Server Console Switch 1x4 - KVM switch - 4 por

Images Manuals

Images for illustrative purposes

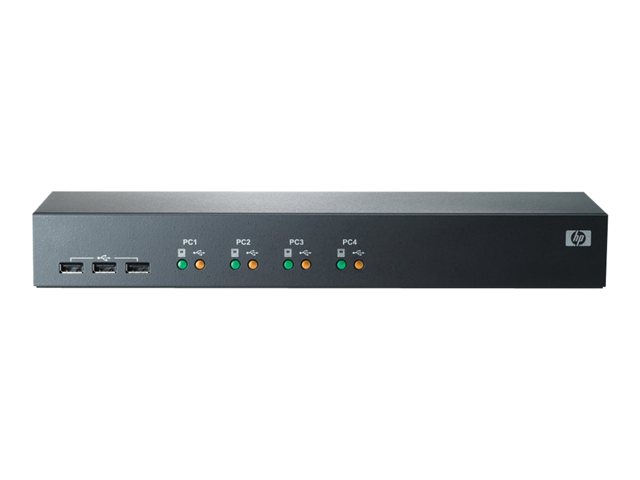

HPE Server Console Switch 1x4

Name: HPE Server Console Switch 1x4
Brand: HPE
SKU: ECE1340090
Price: 269.75 EUR
Availability: OutOfStock

View all HPE KVM Switches - Visit the HPE Store (AF611A) - (ECE1340090)

Model: HPE Server

1x4 USB/PS2 KVM Cnsl Switch

ATEN G2 KVM Switches are Suitable for Installation in Most IT Environments
ATEN G2 KVM Switches for HPE Support Three Different Methods to Select Your Target Device
ATEN G2 KVM Switches for HPE Allow Access to up to 256 Servers Through a Single KVM Installation
ATEN G2 KVM Switches for HPE Provide Security Features to Prevent Unauthorized Users

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€269.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Need a value KVM switch that provides the ideal mix of features, function, and performance in a compact form saving space in your rack or remote office? The HPE 1x4 USB/PS2 KVM Console Switch provides the ideal mix of features, functionality and performance for SMB installations or Data Center rack management. Support for both USB and PS/2 devices, including USB peripherals such as printers, scanners and storage, ensures that customers can buy a KVM switch today that will work for them in the future. High speed USB 2.0 performance improves data transfer speeds when upgrading applications or operating systems at the rack. Flexible mounting allows the switch to work in table top or rack mount applications. This is an easy, secure solution for your rack.

Features Summary

ATEN G2 KVM Switches are Suitable for Installation in Most IT Environments
ATEN G2 KVM Switches for HPE are qualified for integration into HPE racks using HPE Factory Integration Services.
Mounting Hardware is included for easy installation into HPE G2 Advanced and Enterprise Racks.
Attachable foot pads are included for deployment of the switch in a desktop configuration.
ATEN G2 KVM Switches for HPE Support Three Different Methods to Select Your Target Device
ATEN G2 KVM Switches for HPE feature front side push-button selection with LED indicators allow for direct selection of the target device.
Keyboard hot-key support allows target device selection when the switch is inaccessible inside the rack.
A menu-driven multi-lingual OSD (On Screen Display) feature allows for target device selection through a graphical interface on the connected monitor or KVM console.
ATEN G2 KVM Switches for HPE Allow Access to up to 256 Servers Through a Single KVM Installation
ATEN G2 KVM Switches for HPE come in 4, 8, and 16 port models to support up to 16, 64, and 256 devices respectively through two level tiering/cascade technology.
Switch connectivity to individual servers is supported through interface adapter cable options that support servers using USB with both VGA and Display Port video connections.
ATEN G2 KVM Switches for HPE Provide Security Features to Prevent Unauthorized Users
ATEN G2 KVM Switches for HPE feature two level password security so only authorized users view and control connected devices.
ATEN G2 KVM Switches for HPE support up to four separate user profiles and an administrator profile.

Specification Summary

Product Description

HPE Server Console Switch 1x4 - KVM switch - 4 ports - rack-mountable

Device Type

KVM switch - 4 ports - cascadable

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

4 x KVM port(s)

KVM Users Qty

1 local user

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

33 cm x 10 cm x 4.4 cm

Weight

3.1 kg

Designed For

HPE 10XXX G2, 600, 800; Advanced Series Racks 42U 600; ProLiant BL460c Gen8, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL320e Gen8, DL360 Gen9, DL360p Gen8, DL380 G6, DL380 Gen9, DL60 Gen9, DL80 Gen9, e2000 G6, ML110 Gen9, ML150 Gen9, ML350 Gen9, ML350p Gen8; Rack

Specifications

EAN / GTIN:

882780907553

General

Device Type

KVM switch - 4 ports - cascadable

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

4 x KVM port(s)

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

PS/2

Max Resolution

2048 x 1536

Expansion / Connectivity

Interfaces

4 x KVM ¦ 1 x keyboard (PS/2) ¦ 1 x mouse (PS/2) ¦ 1 x VGA HD-15 ¦ 3 x USB 2.0 Type A

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Cables Included

2 x keyboard / mouse / video cable - 1.8 m

Rack Mounting Kit

Included

Compliant Standards

DDC-2B

Dimensions & Weight

Width

33 cm

Depth

10 cm

Height

4.4 cm

Weight

3.1 kg

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 85%

Compatibility Information

Designed For

HPE 10642 G2 1200mm deep Shock Rack, 10647 G2 1200mm deep Shock Rack, 600mm x 1075mm Advanced Pallet Rack, 600mm x 1075mm Advanced Shock Rack, 600mm x 1075mm Enterprise Crate Rack, 600mm x 1075mm Enterprise Pallet Rack, 600mm x 1075mm Enterprise Shock Rack, 600mm x 1200mm Advanced Pallet Rack, 600mm x 1200mm Advanced Shock Rack, 600mm x 1200mm Enterprise Air Duct Rack, 600mm x 1200mm Enterprise Pallet Rack, 600mm x 1200mm Enterprise Shock Network Rack, 600mm x 1200mm Enterprise Shock Rack, 600mm x 1200mm Grey Enterprise Air Duct Rack, 600mm x 1200mm Grey Enterprise Shock Rack, 600mm x 1200mm Network Advanced Shock Rack, 800mm x 1075mm Enterprise Pallet Rack, 800mm x 1075mm Enterprise Shock Rack, 800mm x 1200mm Advanced Pallet Rack, 800mm x 1200mm Advanced Shock Rack, 800mm x 1200mm Enterprise Pallet Rack, 800mm x 1200mm Enterprise Shock Network Rack, 800mm x 1200mm Enterprise Shock Rack, 800mm x 1200mm Grey Enterprise Shock Network Rack, 800mm x 1200mm Grey Enterprise Shock Rack, 800mm x 1200mm Network Advanced Shock Rack ¦ HPE Advanced Series Racks 42U 600mm x 1075mm Kitted Advanced Pallet Rack with Side Panels and Baying, 42U 600mm x 1075mm Kitted Advanced Shock Rack with Side Panels and Baying ¦ HPE ProLiant BL460c Gen8, DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Entry, DL360 Gen9 Performance, DL360p Gen8, DL360p Gen8 CMS, DL380 G6, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, e2000 G6, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350p Gen8 ¦ HPE Rack

Essential Bundles

Options

System & Power Cables
	(ECE1340089 - AF612A) Availability: 0 HPE - 1x4 KVM Console 6ft PS2 Cable	€31.71
(ECE1340089 - AF612A) Availability: 0 HPE - 1x4 KVM Console 6ft PS2 Cable
Repeaters & Transceivers
	(ECE989309 - 262588-B21) Availability: 0 HPE - Rack Option - IP/KVM (CAT5 based) Console Interface adapter (single pack)	€122.66
(ECE989309 - 262588-B21) Availability: 0 HPE - Rack Option - IP/KVM (CAT5 based) Console Interface adapter (single pack)
	(ECE1239163 - AF604A) Availability: 0 HPE - Rack Option - PS2/USB Virtual Media Interface Adapter (Single Pack)	€146.87
(ECE1239163 - AF604A) Availability: 0 HPE - Rack Option - PS2/USB Virtual Media Interface Adapter (Single Pack)
	(ECE1340099 - AF605A) Availability: 0 HPE - BLc KVM Interface Adapter	€234.91
(ECE1340099 - AF605A) Availability: 0 HPE - BLc KVM Interface Adapter
Network Devices
	(ECE1005990 - 373035-B21) Availability: 0 HPE - Rack Option - KVM Console Switch Serial Interface Adapter (Cat 5) -Single Pack with power supply	€353.93
(ECE1005990 - 373035-B21) Availability: 0 HPE - Rack Option - KVM Console Switch Serial Interface Adapter (Cat 5) -Single Pack with power supply
Network Cables
	(ECE914872 - 263474-B24) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (20ft, 4 Pack)	€72.04
(ECE914872 - 263474-B24) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (20ft, 4 Pack)
	(ECE914875 - 263474-B22) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (6ft, 8 Pack)	€137.15
(ECE914875 - 263474-B22) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (6ft, 8 Pack)
	(ECE914871 - 263474-B23) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (12ft, 8 Pack)	€189.75
(ECE914871 - 263474-B23) Availability: 0 HPE - Rack Option - CPU to IP/KVM Switch CAT5 cable (12ft, 8 Pack)
