Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

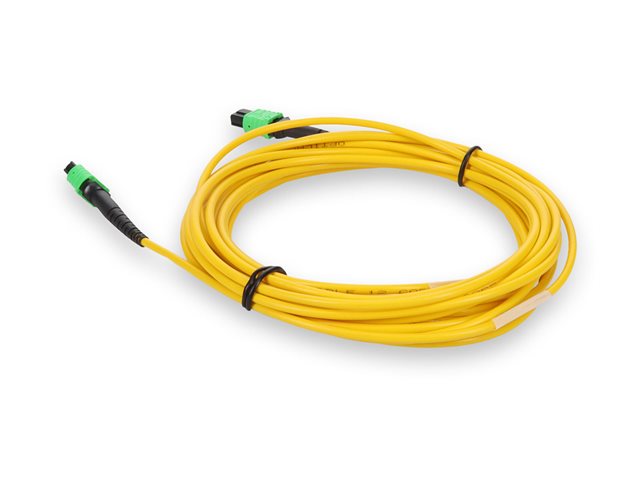

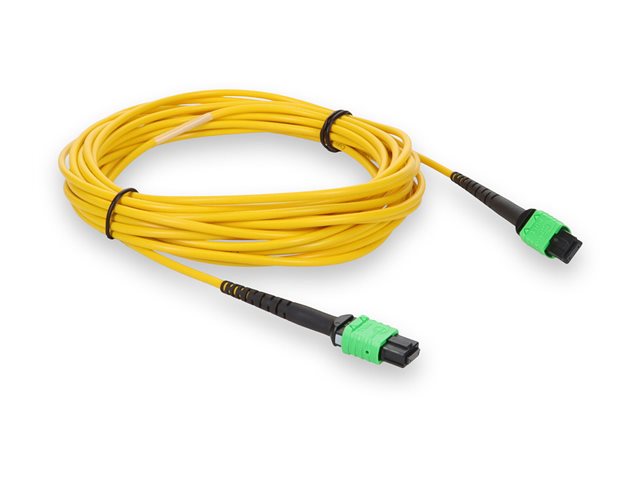

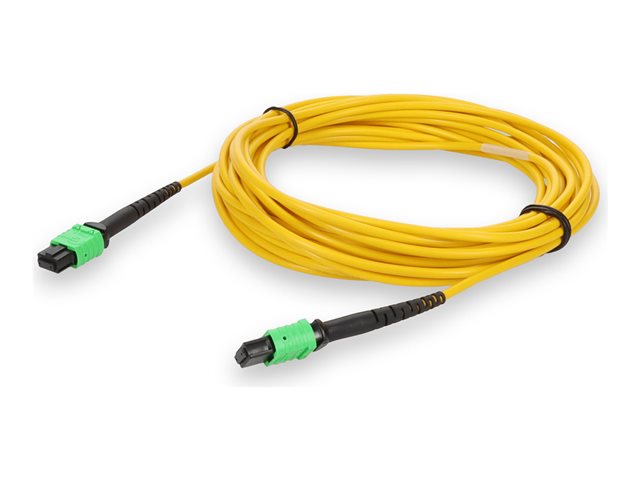

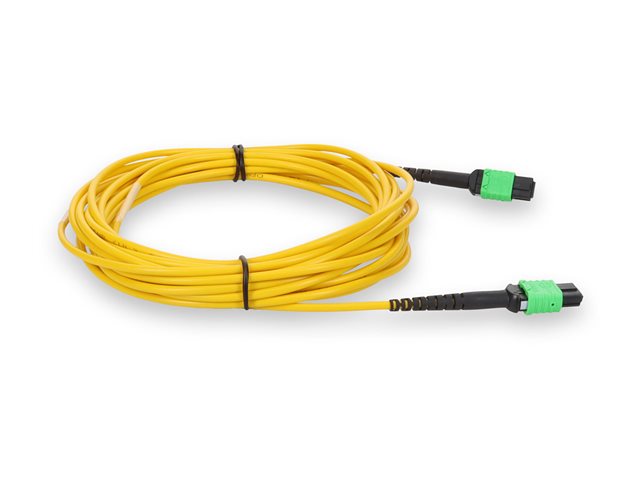

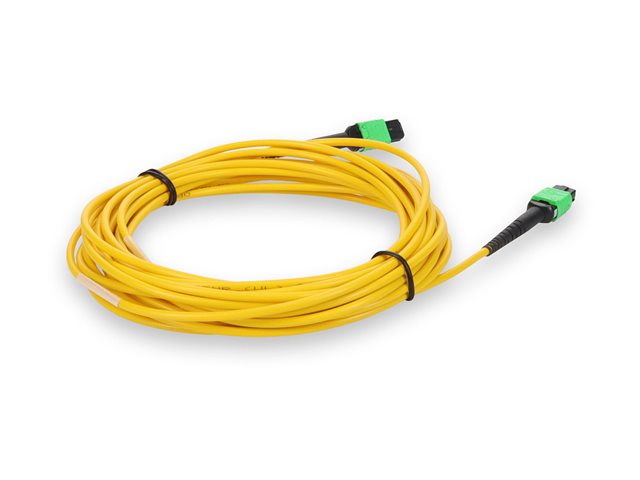

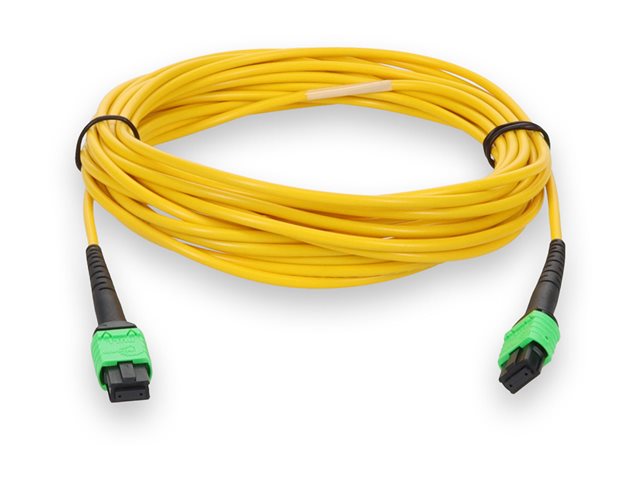

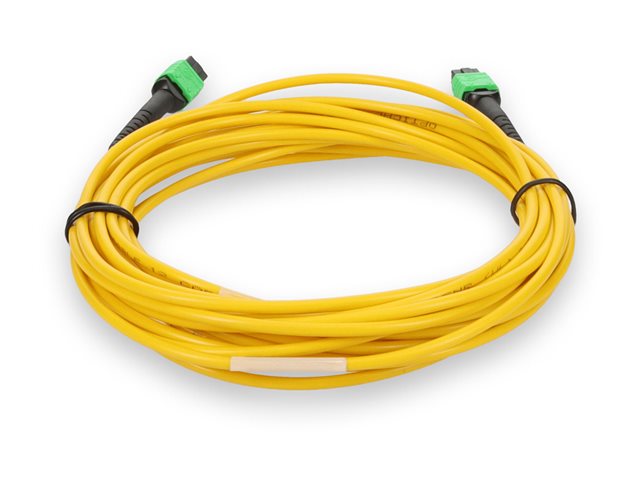

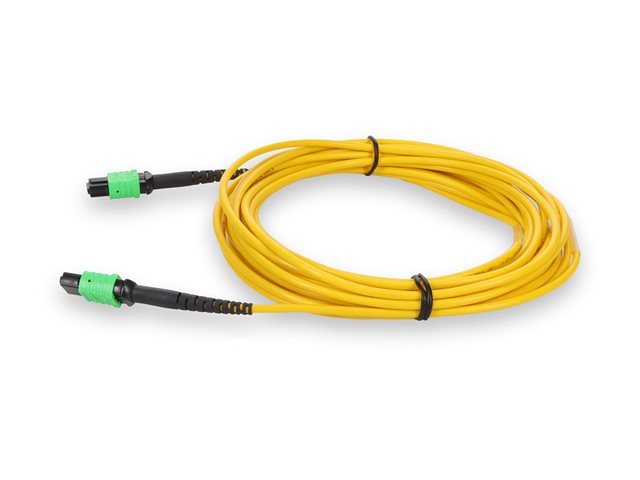

This is a MSA compliant 7m angled MPO (female) to angled MPO (female) 12-strand yellow OS2 crossover polarity-B LSZH fiber patch cable. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This low smoke zero halogen cable reduces the amount of toxic and corrosive gas emitted during combustion. This type of material is typically used in poorly ventilated areas such as aircrafts, rail cars or ships and will self-extinguish. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
Specification Summary
Product Description
AddOn crossover cable - 7 m - yellow
Type
Crossover cable - OS2
Type of Fibre Optics
Singlemode
Features
Halogen-free, reversed polarity (Method B)
Core / Cladding Diameter
9 / 125 micron
Connector
MPO/APC single-mode - female
Connector (Second End)
MPO/APC single-mode - female
Manufacturer Warranty
Limited lifetime warranty
