Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

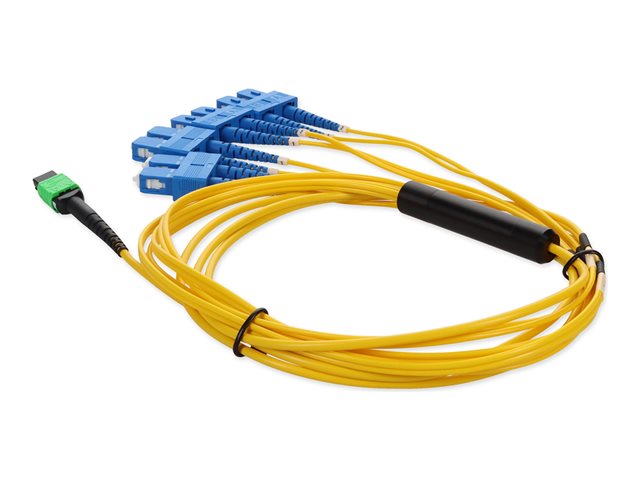

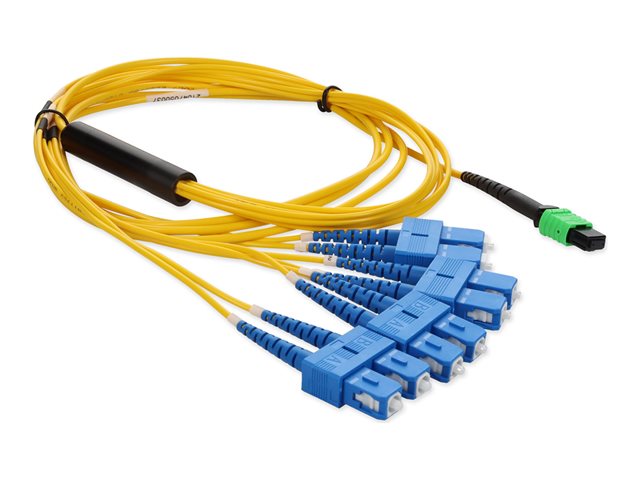

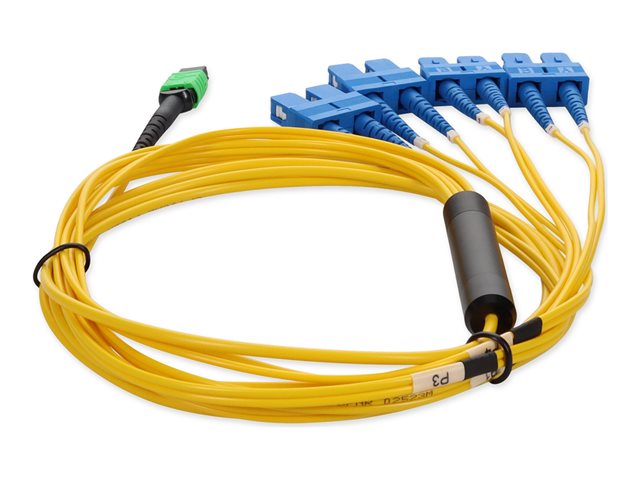

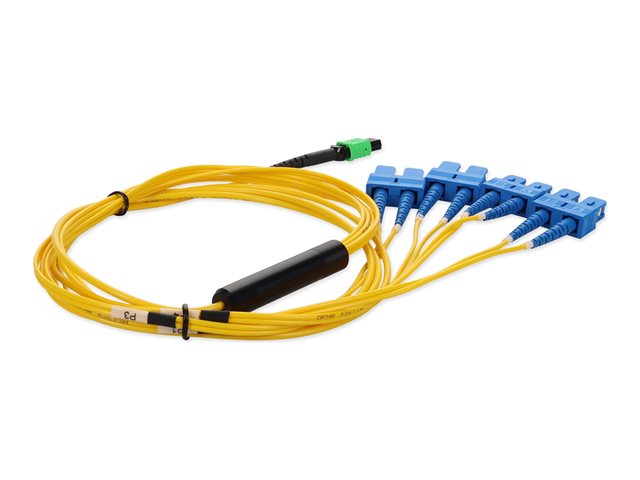

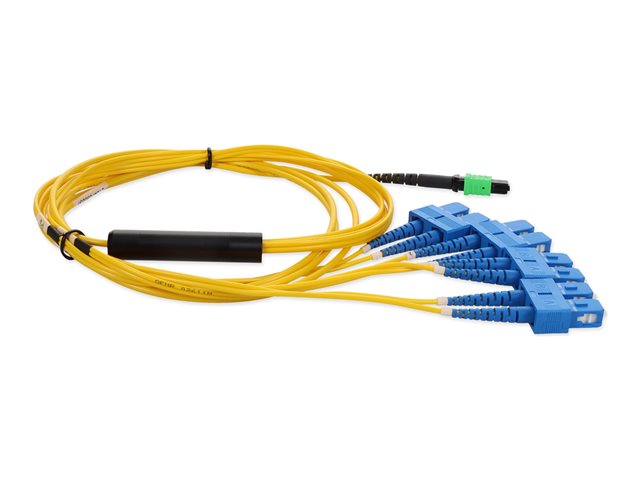

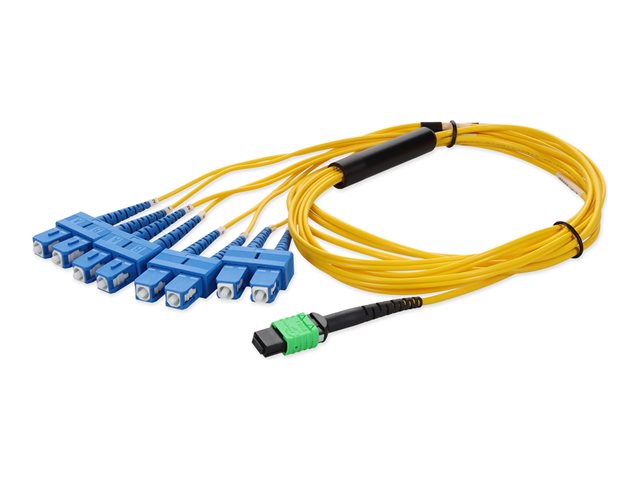

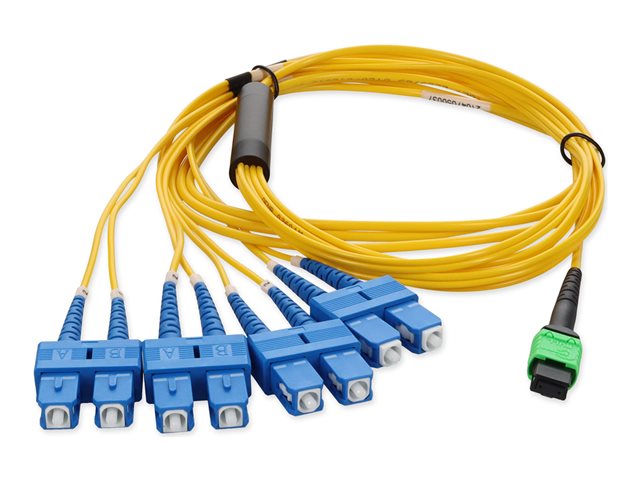

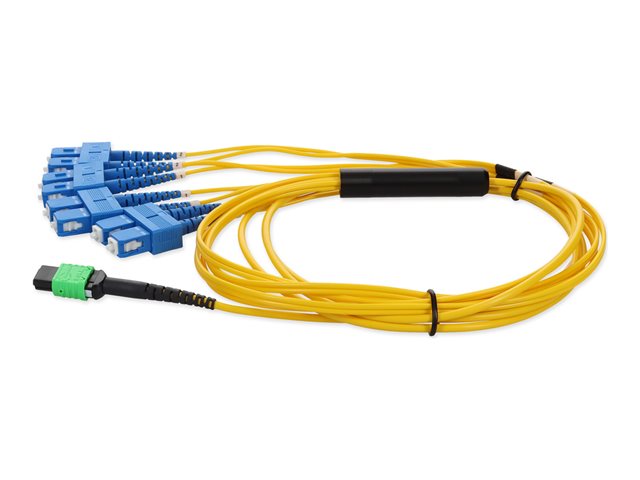

This is an MPO (female) to 8xSC (male) 8-strand duplex riser fiber fanout cable. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This optical fiber, non-conductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. This patch cable is 100% compliant for all of your networking needs.
Specification Summary
Product Description
AddOn patch cable - 5 m - yellow
Type of Fibre Optics
Singlemode
Features
Riser, non-conductive, Angled Physical Contact (APC)
Core / Cladding Diameter
9 / 125 micron
Connector
MPO/APC single-mode - female
Connector (Second End)
8 x SC/APC single-mode - male
Manufacturer Warranty
Limited lifetime warranty
