Product Type

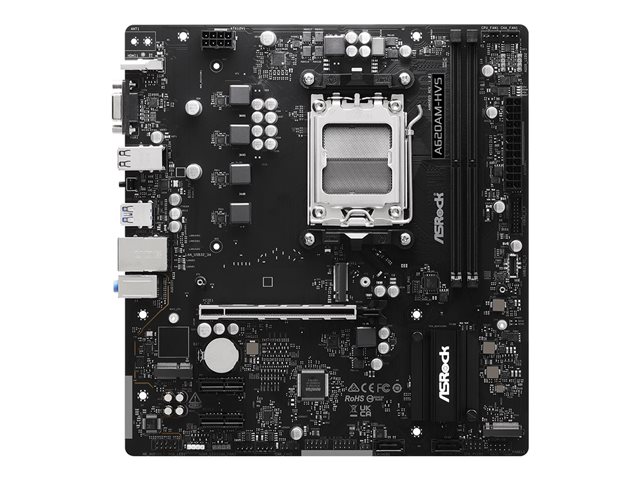

Motherboard - micro ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Bus Clock
6800 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 4 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x USB-C 3.2 Gen 1 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Hardware Features
4+1+1 Phase Power Design, Dr.MOS MOSFET, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), 15µ Gold Contact, Hi-Density Power Connectors, 2oz Copper PCB, ASRock Polychrome RGB
Included Accessories
1 x M.2 screw, IO shield
Cables Included
2 x Serial ATA cable
Software Included
ASRock A-Tuning, ASRock Polychrome SYNC
Compliant Standards
ErP Ready, EuP Ready, FCC
