Platform Technology
Intel vPro Platform
Product Form Factor

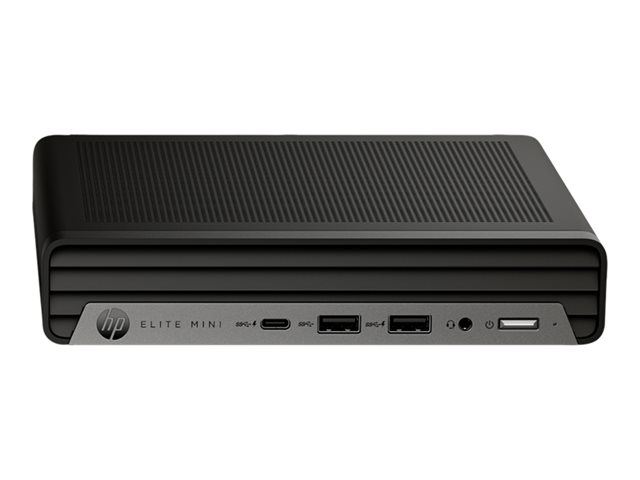

Mini desktop
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Localisation
Language: English / region: United Kingdom
Bundled with
Microsoft Team Rooms
CPU
Intel Core i7 (13th Gen) 13700T
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0
Installed Size
L3 Cache - 30 MB
Cache Per Processor
30 MB
Installed Size
16 GB (installed) / 64 GB (max)
Effective Memory Speed
4800 MHz
Rated Memory Speed
4800 MHz
Form Factor
SO-DIMM 262-pin
Slots
2 (Total) / 0 (empty)
Configuration Features
2 x 8 GB
Interface Type
PCI Express
Features
NVM Express (NVMe)
Controller Interface Type
SATA-600 / NVMe
Graphics Processor
Intel UHD Graphics 770 Dynamic Video Memory Technology
Video Interfaces
HDMI, DisplayPort
Max Sampling Rate
192 kHz
Compliant Standards
High Definition Audio
Interface (Bus) Type
PCI Express Mini Card (M.2)
Ethernet Controller
Intel I219-LM
Wireless LAN Supported
Yes
Wireless NIC
Intel Wi-Fi 6E AX 211
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Remote Management Protocol
SNMP 2
Features
Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), MU-MIMO Support, PXE 2.1 support, dual stream (2x2)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.3az, IEEE 802.11r, IEEE 802.11v
Bays
1 (total) / 1 (free) x internal 2.5"
Slots
1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage)
Interfaces
1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 1 x DisplayPort/USB-C 3.2 Gen 1 (1 rear) (one of them is 15W charging) ¦ 1 x USB-C 3.2 Gen 1 (1 rear) (15W charging) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) (two of them with wake functionality, one of them is charging) ¦ 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) ¦ 2 x DisplayPort 1.4a (2 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x HDMI input (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) (up to 25W PoE) ¦ 1 x LAN (1 rear)
Theft/Intrusion Protection
Security lock slot (cable lock sold separately), retractable padlock loop
Security Slot Type
Kensington security slot
Device Type
Power adapter
Voltage Required
AC 90-264 V (50/60 Hz)
Efficiency
89% (230VAC), 88% (115VAC)
Power Factor Correction
Yes (active)
Operating System / Software
OS Provided
Windows 11 IoT Enterprise English
Software
HP Image Assistant (free download), HP Sure Sense, Microsoft Teams Rooms, Poly Lens management software, HP Manageability Integration Kit (free download), HP Sure Start Gen7, HP Console Control, HP Sure Start
Sustainability Information
TCO Certified
TCO Certified Desktops 9
Dimensions & Weight (Shipping)
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
