Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

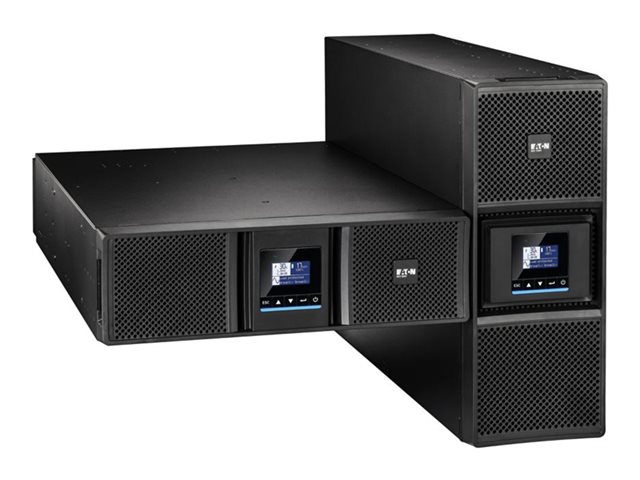

The Eaton 9SX Gen2 UPS is designed to provide reliable power protection for critical equipment. With an 8000 VA power capacity and a high efficiency rating of 97.3%, it ensures optimal performance while maintaining energy savings. This rack-mountable unit features an internal bypass as well as deep discharge protection, making it a dependable choice for users. Equipped with hot-swappable batteries and automatic external battery detection, the 9SX Gen2 can adapt to varying power demands while ensuring continuous operation. Operating in environments with humidity levels between 0% to 95% and a temperature range of 0°C to 40°C, the Eaton 9SX Gen2 is robust against diverse conditions. Its user-friendly LCD display provides real-time monitoring, while various communication interfaces, including RS-232 and USB, allow for easy management and integration into existing systems. This UPS complies with multiple environmental standards ensuring minimal impact on the ecosystem, making it a choice for modern businesses.


Features Summary

  • Versatile connectivity
    Equipped with interfaces including RS-232, USB, and relay output, the Eaton 9SX Gen2 facilitates easy connection to different management systems.
  • High operational efficiency
    With an efficiency rating of 97.3% and an Eco mode efficiency of 99.5%, this UPS helps to minimize energy consumption while delivering reliable power.
  • Expandable battery options
    The Eaton 9SX Gen2 features an expandable battery design allowing users to enhance runtime based on specific power needs.
  • Environmental compliance
    This UPS adheres to environmental standards like ENERGY STAR, RoHS, and WEEE, reflecting a commitment to sustainable practices.
  • Effective sound emission
    Operating at a sound level of just 37 dB, the Eaton 9SX Gen2 operates quietly to maintain a comfortable working environment.

Specification Summary

Product Description
Eaton 9SX Gen2 9SX8KIG2 - UPS - 8000 Watt - 8000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable
Rack Size
4U
Weight
78.8 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240/250 V
Output Voltage
AC 200/208/220/230/240 V ± 1%
Power Capacity
8000 Watt / 8000 VA
Input Connectors
1 x hardwire
Output connectors
8 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire
Battery
Lead Acid expandable - 7 Ah
Batteries Qty
20
Run Time (Up To)
3.5 min at full load
Networking
RS-232, USB
Included Accessories
3 cable glands, tower support stands
Colour
Black
Dimensions (WxDxH)
44 cm x 72.4 cm x 17.4 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
3553340710674
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable
Height (Rack Units)
4U
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 100 - 276 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
40 - 70 Hz
Input Connectors
1 x hardwire
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity
8000 Watt / 8000 VA
Output Waveform
Sinewave
Efficiency
97.3%, 99.5% Eco mode
Power Factor (PF)
0.99
Battery
Type
Expandable
Quantity
20
Technology
Lead Acid
Voltage Provided
12 V
Capacity
7 Ah
Run Time (Up To)
3.5 min at full load ¦ 10.6 min at half load
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) ¦ 1 x management (USB) ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
3 cable glands, tower support stands
Cables Included
2 x power cable (IEC) - external - 1.2 m ¦ USB cable - external - 1.8 m
Features
Double conversion, internal bypass, LCD display, hot-swappable batteries, automatic shut down, Advance Battery Management+ (ABM+), automatic battery test, deep discharge protection, automatic external battery detection
Compliant Standards
LVD, EMC, RoHS, REACH, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, cULus, UKCA, CM, UKR, RCM, KCC, BSMI
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
37 dB
Dimensions & Weight
Width
44 cm
Depth
72.4 cm
Height
17.4 cm
Weight
78.8 kg
