Eaton 9SX 9SX6KIRT - UPS - 5400 watt - 6000 VA

Images Manuals

Images for illustrative purposes

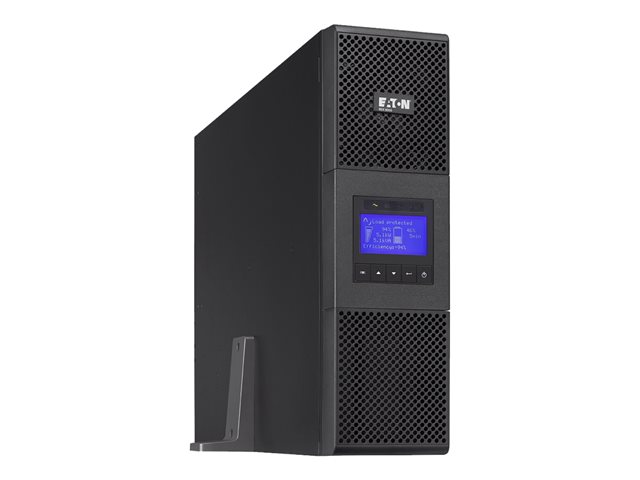

Eaton 9SX 9SX6KIRT

Name: Eaton 9SX 9SX6KIRT
Brand: EATON
SKU: ECE2575227
Price: 4215.48 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9SX6KIRT) - (ECE2575227)

Model: Eaton 9SX

9SX 9SX6KIRT - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 5400 watt - 6000 VA - RS-232, USB - PFC - 3U - 19"

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€4215.48 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.

Specification Summary

Product Description

Eaton 9SX 9SX6KIRT - UPS - 5400 watt - 6000 VA

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Rack Size

19" - 3U

Weight

48 kg

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V ± 1%

Power Capacity

5400 watt / 6000 VA

Input Connectors

Hardwire

Output connectors

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire

Battery Form Factor

Plug-in module

Run Time (Up To)

3 min at full load

Networking

RS-232, USB

Included Accessories

Tower stand

Dimensions (WxDxH)

44 cm x 68.5 cm x 13 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

743172039354

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Battery Enclosure Type

Plug-in module

Height (Rack Units)

Rack Size

19"

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 176 - 276 V

Frequency Provided

50/60 Hz

Frequency Required

40 - 70 Hz

Input Connectors

Hardwire

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire

Output Voltage

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Max Electric Current

25.2 A

Power Capacity

5400 watt / 6000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Circuit Protection

Fuse

Battery

Voltage Provided

12 V

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Included Accessories

Tower stand

Cables Included

2 x power cable - external ¦ Serial cable - external ¦ USB cable - external

Rack Mounting Kit

Included

Features

Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, cold-start function, automatic self-test

Compliant Standards

UL, CISPR 22 Class A, ISO 9001, ISO 140001, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA 22.2, IEC 61000-2-2, EN 62040-1-1, EN 62040-2

Software / System Requirements

Software Included

Intelligent Power Software Suite

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Sound Emission

45 dB

Dimensions & Weight

Width

44 cm

Depth

68.5 cm

Height

13 cm

Weight

48 kg
