Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware - causing hours of lost productivity and expensive repairs.


Specification Summary

Product Description

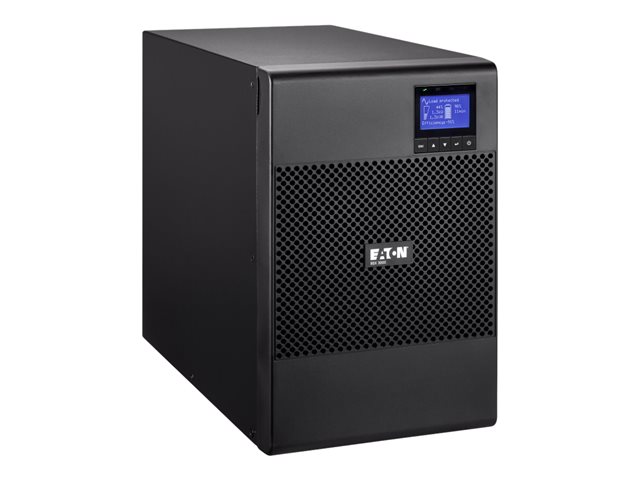

Eaton 9SX - UPS - 2700 Watt - 3000 VA
Device Type
UPS - Power Factor Correction (PFC) - external
Weight
33.84 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240/250 V
Output Voltage
AC 200/208/220/230/240 V + 2% / - 2%
Power Capacity
2700 Watt / 3000 VA
Input Connectors
1 x power IEC 60320 C20
Output connectors
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Battery
Lead Acid expandable - 9 Ah
Batteries Qty
8
Run Time (Up To)
6 min
Networking
RS-232, USB
Included Accessories
BS input cord
Colour
Black
Dimensions (WxDxH)
32 cm x 57.5 cm x 49 cm
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
3553340620485
General
Device Type
UPS - Power Factor Correction (PFC) - external
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 140 - 276 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C20

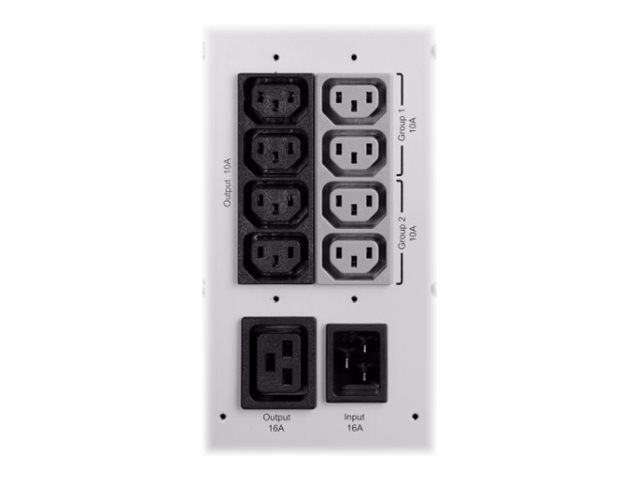

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V + 2% / - 2% - 50/60 Hz
Power Capacity
2700 Watt / 3000 VA
Output Waveform
Sinewave
Efficiency
92.4%, 97.4% Eco mode
Power Factor (PF)
0.9
Battery
Type
Expandable
Quantity
8
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ Remote power off ¦ Relay output
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
BS input cord
Cables Included
Serial cable - external ¦ USB cable - external ¦ Power cable - external - 1.8 m
Features
LCD display, hot-swappable batteries, Advance Battery Management (ABM), internal bypass, double conversion, deep discharge protection, automatic shut down
Compliant Standards
TUV, cULus, CSA 22.2, FCC Part 15 Class B, CISPR 22 Class B, EN 62040-1, IEC 62040-1, UL 1778, EN 62040-2, IEC 62040-2, EAC
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
45 dB
Dimensions & Weight
Width
32 cm
Depth
57.5 cm
Height
49 cm
Weight
33.84 kg
