Eaton 9SX 9SX2000IRBS - UPS - 1800 Watt - 2000 VA

Images Manuals

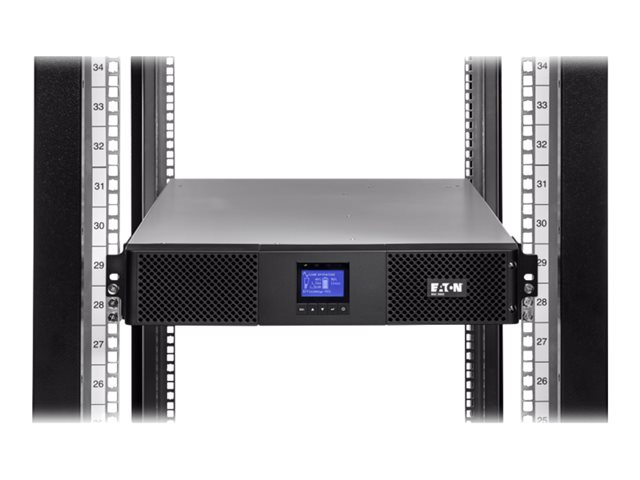

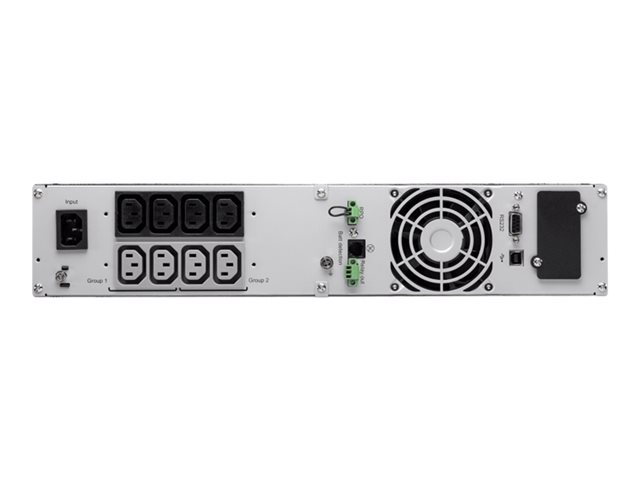

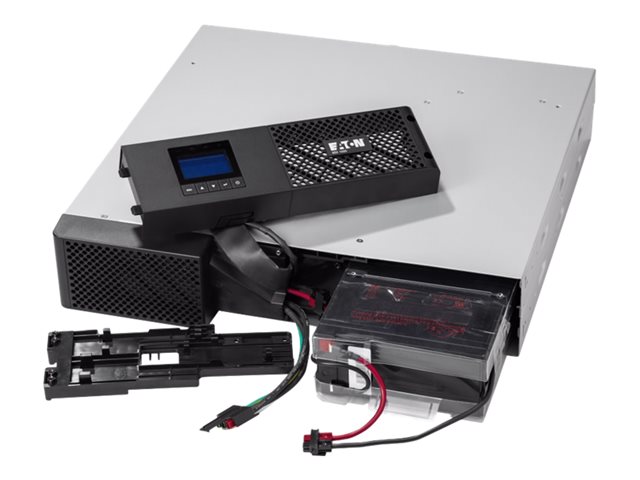

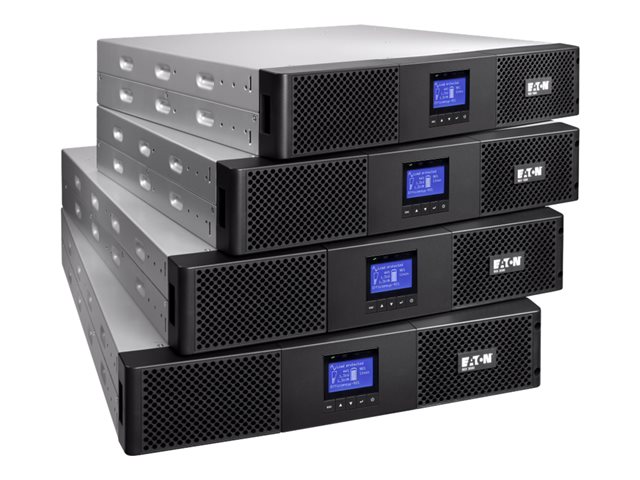

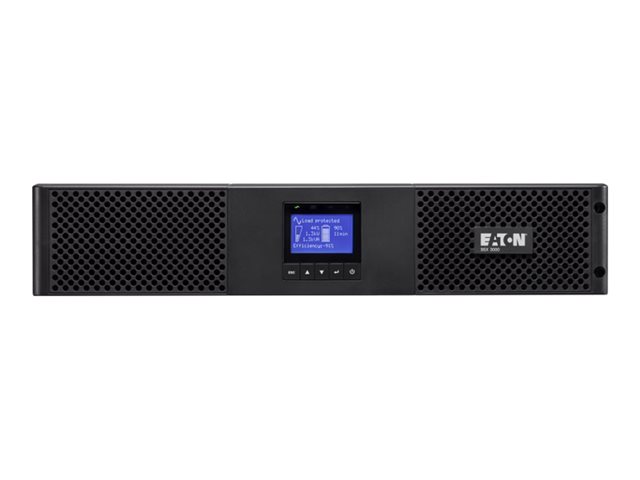

Images for illustrative purposes

Eaton 9SX 9SX2000IRBS

Name: Eaton 9SX 9SX2000IRBS
Brand: EATON
SKU: ECE7221578
Price: 2136.88 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9SX2000IRBS) - (ECE7221578)

Model: Eaton 9SX

9SX 9SX2000IRBS - UPS (rack-mountable) - AC 200/208/220/230/240/250 V - 1800 Watt - 2000 VA - 1-phase - 7 Ah - RS-232, USB - output connectors: 8 - PFC - 2U - 19" - black

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€2136.88 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware - causing hours of lost productivity and expensive repairs.

Specification Summary

Product Description

Eaton 9SX 9SX2000IRBS - UPS - 1800 Watt - 2000 VA

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable

Rack Size

19" - 2U

Weight

26.9 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240/250 V

Output Voltage

AC 200/208/220/230/240 V + 2% / - 2%

Power Capacity

1800 Watt / 2000 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

8 x power IEC 60320 C13

Battery

Lead Acid expandable - 7 Ah

Batteries Qty

Run Time (Up To)

4.5 min at full load

Networking

RS-232, USB

Included Accessories

BS input cord

Colour

Black

Dimensions (WxDxH)

58 cm x 78 cm x 24 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

3553340620478

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable

Height (Rack Units)

Rack Size

19"

Colour

Black

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240/250 V

Input Voltage Range

AC 140 - 276 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V + 2% / - 2% - 50/60 Hz

Power Capacity

1800 Watt / 2000 VA

Output Waveform

Sinewave

Efficiency

92%, 98% Eco mode

Power Factor (PF)

0.9

Battery

Type

Expandable

Quantity

Technology

Lead Acid

Voltage Provided

12 V

Capacity

7 Ah

Run Time (Up To)

4.5 min at full load

Features

Sealed

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Included Accessories

BS input cord

Cables Included

2 x power cable (IEC) - external ¦ Serial cable - external ¦ USB cable - external

Rack Mounting Kit

Included

Features

Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, temperature-compensated battery charging, double conversion

Compliant Standards

TUV, CISPR 22 Class B, UL 1778, IEC 62040-2, cULus, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, FCC Part 15 Class B

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 96% (non-condensing)
