EAN / GTIN:
3553340620430
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 120 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz

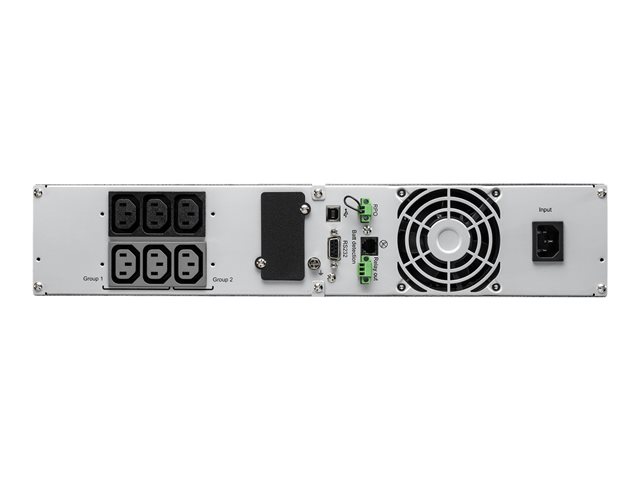

Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Power Capacity
900 Watt / 1000 VA
Efficiency
89%, 95% Eco mode
Run Time (Up To)
6 min at full load
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) ¦ Relay output
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Cables Included
2 x power cable (IEC) - external ¦ Serial cable - external ¦ USB cable - external
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, temperature-compensated battery charging, double conversion, power measuring
Compliant Standards
TUV, CISPR 22 Class B, UL 1778, IEC 62040-2, cULus, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, FCC Part 15 Class B
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 96% (non-condensing)
Dimensions & Weight (Shipping)
