Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS

Images for illustrative purposes

Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS

Name: Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS
Brand: EATON
SKU: ECE4994289
Price: 1239.75 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9SX1000) - (ECE4994289)

Model: Eaton 9SX

9SX 1000VA 900W 120V Online Double-Conversion UPS - 6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup - UPS - AC 100/110/120/125 V - 900 watt - 1000 VA - RS-232, USB - output connectors: 6 - black - for P/N: 7

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€1239.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9SX UPS provides reliable double-conversion online power you expect from a 9-series UPS in a convenient and compact tower. The 9SX UPS is ideal for light industrial, automations and other mission critical IT applications where space is limited, but premium power reliability is essential.

Specification Summary

Product Description

Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS - 6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup - UPS - 900 watt - 1000 VA

Device Type

UPS - external

Weight

14.8 kg

Input Voltage

AC 100/110/120/125 V

Output Voltage

AC 100/110/120/125 V

Power Capacity

900 watt / 1000 VA

Input Connectors

1 x power NEMA 5-15P

Output connectors

6 x power NEMA 5-15R

Battery

Lead Acid

Run Time (Up To)

6 min at full load

Networking

RS-232, USB

Colour

Black

Dimensions (WxDxH)

16 cm x 38.6 cm x 25.1 cm

Manufacturer Warranty

2-year warranty

Designed For

P/N: 744-A4311

Specifications

EAN / GTIN:

743172091239

General

Device Type

UPS - external

Colour

Black

Power Device

UPS Technology

On-line

Input Voltage

AC 100/110/120/125 V

Input Voltage Range

AC 100 - 138 V

Input Voltage Range (Adjustable)

AC 60 - 144 V

Frequency Provided

50/60 Hz

Frequency Required

40 - 70 Hz

Input Connectors

1 x power NEMA 5-15P

Power Output Connectors Details

6 x power NEMA 5-15R

Output Voltage

AC 100/110/120/125 V 50/60 Hz

Power Capacity

900 watt / 1000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Efficiency

88%

Power Factor (PF)

0.99

Battery

Technology

Lead Acid

Features

Sealed

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Cables Included

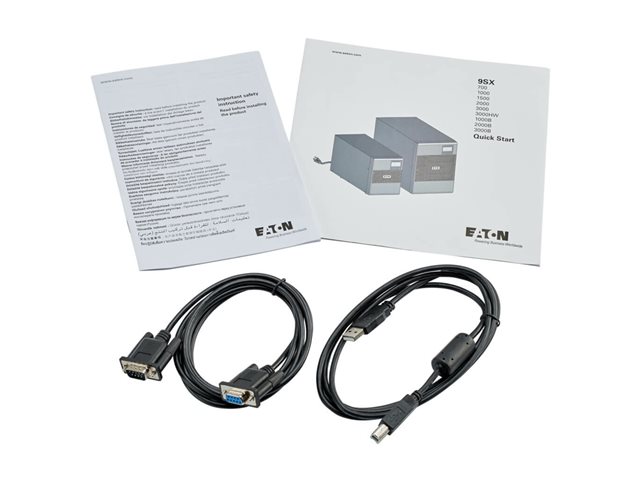

Serial cable - external - 1.83 m ¦ USB cable - external - 1.83 m ¦ Power cable 2.44 m

Features

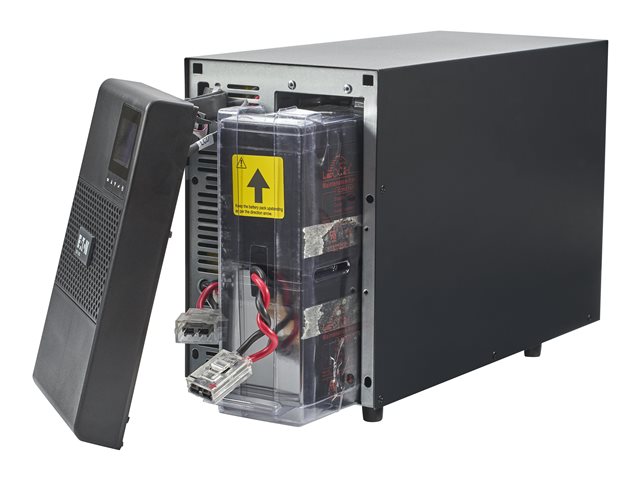

Advance Battery Management (ABM), hot-swappable batteries, LCD display, double conversion, 3-stage charging

Compliant Standards

FCC, cULus

Software / System Requirements

Software Included

Intelligent Power Manager

Manufacturer Warranty

Service & Support

Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 96% (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

16 cm

Depth

38.6 cm

Height

25.1 cm

Weight

14.8 kg

Compatibility Information

Designed For

P/N: 744-A4311
