Eaton 9PX G2 9PX6KIRTNG2 - UPS - 6000 Watt - 6000

Images Manuals

Images for illustrative purposes

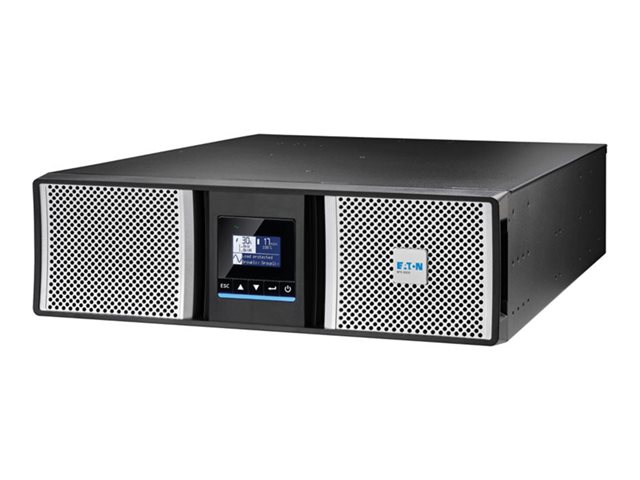

Eaton 9PX G2 9PX6KIRTNG2

Name: Eaton 9PX G2 9PX6KIRTNG2
Brand: EATON
SKU: ECE11794824
Price: 5382.89 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9PX6KIRTNG2) - (ECE11794824)

Model: Eaton 9PX

9PX G2 9PX6KIRTNG2 - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 6000 watt - 6000 VA - 1-phase - 5 Ah - Ethernet 10/100/1000, RS-232, USB - output connectors: 13 - PFC - 3U - 19" - black, silver

Efficient Power Usage
Advanced Battery Management
Versatile Connectivity Options
Rack-Mountable Design
Comprehensive Environmental Standards

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€8246.26~~

€5382.89 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9PX G2 is a reliable UPS solution designed to provide uninterrupted power for critical systems. With a power capacity of 6000 VA and an efficiency of 96.5%, this unit ensures stable voltage and minimal downtime. The dual conversion technology enhances output waveform to sinewave, which is essential for sensitive electronics, while its double conversion feature maximizes power delivery efficiency. Equipped with advanced battery management technology, including hot-swappable batteries and automatic battery tests, the Eaton 9PX G2 promotes longevity and peak performance. The unit operates quietly with a sound emission of only 40 dB, meeting a wide range of environmental standards and supports various networking options through its management interface. Ideal for rack-mounted setups, the Eaton 9PX G2 combines technology and practicality, ensuring essential equipment remains powered during outages.

Specification Summary

Product Description

Eaton 9PX G2 9PX6KIRTNG2 - UPS - 6000 Watt - 6000 VA

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Rack Size

19" - 3U

Weight

43.1 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V ± 1%

Power Capacity

6000 Watt / 6000 VA

Input Connectors

1 x hardwire

Output connectors

6 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C39 ¦ 1 x hardwire

Battery

Lead Acid expandable - 5 Ah

Batteries Qty

Run Time (Up To)

2 min at full load

Networking

Ethernet 10/100/1000, RS-232, USB

Included Accessories

3 cable glands, network management card, tower support stands

Colour

Black, silver

Dimensions (WxDxH)

44 cm x 68.4 cm x 13 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340710575

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Height (Rack Units)

Rack Size

19"

Colour

Black, silver

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 100 - 276 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x hardwire

Power Output Connectors Details

6 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C39 ¦ 1 x hardwire

Output Voltage

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Power Capacity

6000 Watt / 6000 VA

Output Waveform

Sinewave

Circuit Protection

Circuit breaker

Efficiency

96.5%

Power Factor (PF)

0.99

Battery

Type

Expandable

Quantity

Technology

Lead Acid

Voltage Provided

12 V

Capacity

5 Ah

Run Time (Up To)

2 min at full load ¦ 7 min at half load

Features

Sealed

Networking

Remote Management Interface

Ethernet 10/100/1000, RS-232, USB

Expansion / Connectivity

Interfaces

1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) - mini terminal block ¦ 1 x relay output - mini terminal block ¦ 1 x management (Gigabit Ethernet) - RJ-45

Expansion Slots

1 (total) / 0 (free) x Expansion Slot

Miscellaneous

Included Accessories

3 cable glands, network management card, tower support stands

Cables Included

2 x power cable (IEC) - external - 1.2 m ¦ USB cable - external - 1.8 m

Rack Mounting Kit

Included

Features

Advance Battery Management+ (ABM+), automatic battery test, deep discharge protection, automatic external battery detection, double conversion, LCD display, internal bypass, automatic shut down, hot-swappable batteries

Compliant Standards

LVD, EMC, RoHS, REACH, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, cULus, UKCA, CM, UKR, RCM

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - electronics - 3 years ¦ Limited warranty - battery - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature
