Eaton 9PX 3000i RT3U HotSwap - UPS - 3000 watt - 3

Images Manuals

Images for illustrative purposes

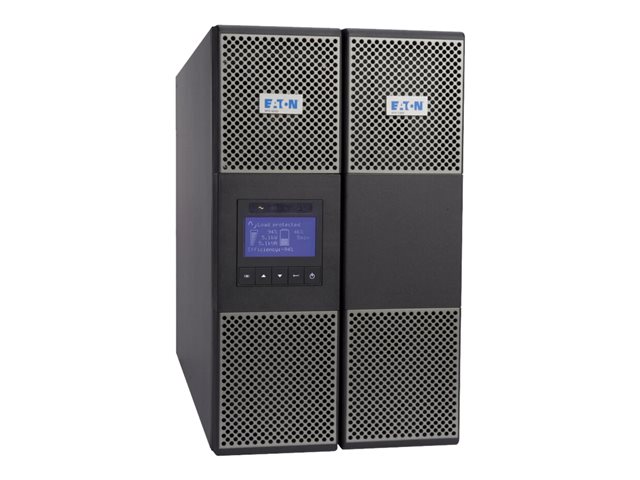

Eaton 9PX 3000i RT3U HotSwap

Name: Eaton 9PX 3000i RT3U HotSwap
Brand: EATON
SKU: ECE3893792
Price: 3393.77 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9PX3000IRTBPH) - (ECE3893792)

Model: Eaton 9PX

9PX 3000i RT3U HotSwap - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 3000 watt - 3000 VA - 1-phase - RS-232, USB - PFC - 3U

Graphical LCD display
Availability and flexibility
Paralleling functionality
Load segment control

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€3393.77 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Features Summary

Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing.
Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems.
Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology!
Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.

Specification Summary

Product Description

Eaton 9PX 3000i RT3U HotSwap - UPS - 3000 watt - 3000 VA

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Rack Size

Weight

27.4 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V

Power Capacity

3000 watt / 3000 VA

Input Connectors

Output connectors

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A ¦ Hardwire

Networking

RS-232, USB

Dimensions (WxDxH)

44 cm x 48.5 cm x 13 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

7431720815996

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Height (Rack Units)

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 176 - 276 V

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A ¦ Hardwire

Output Voltage

AC 200/208/220/230/240 V

Power Capacity

3000 watt / 3000 VA

Efficiency

98%

Battery

Run Time (Up To)

60 min at 300 Watts ¦ 36 min at 500 Watts ¦ 23 min at 800 Watts ¦ 13 min at 1200 Watts ¦ 7 min at 1800 Watts ¦ 4 min at 2500 Watts

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (USB) ¦ 1 x management (RS-232)

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Features

LCD display, built-in maintenance bypass, internal bypass

Compliant Standards

FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Software / System Requirements

Software Included

Intelligent Power Software Suite

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Sound Emission

40 dB

Dimensions & Weight

Width

44 cm

Depth

48.5 cm

Height

13 cm

Weight

27.4 kg
