EAN / GTIN:
3553340620263
Device Type

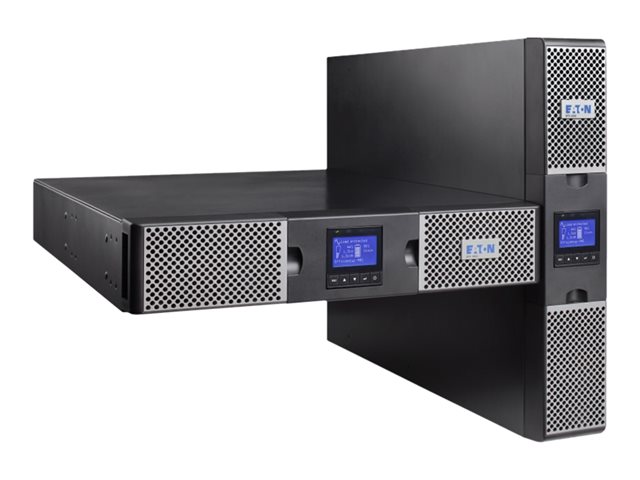

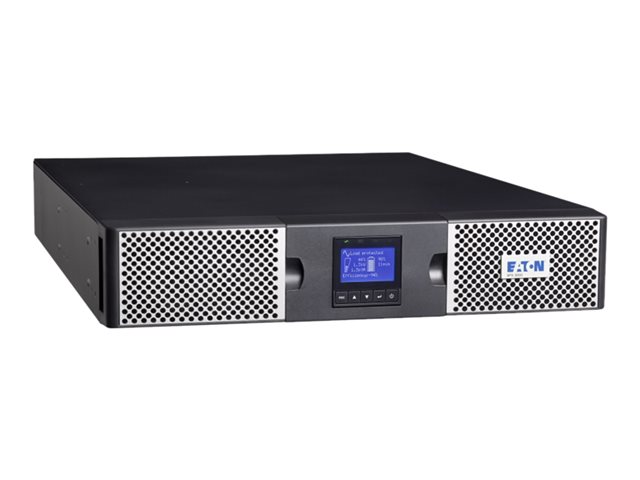

UPS - rack-mountable / external
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 100 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power BS

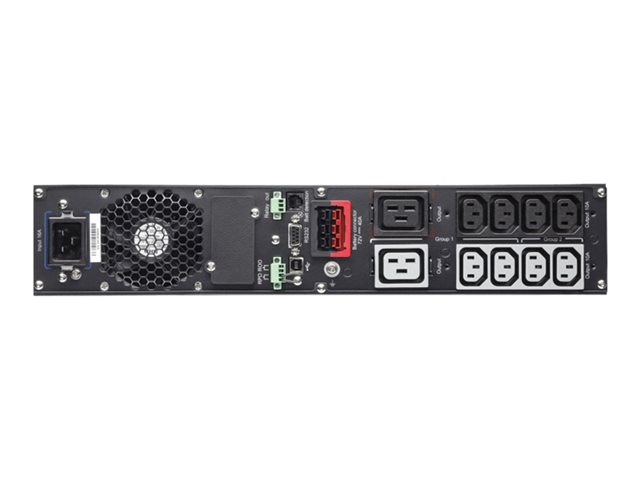

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity
3000 Watt / 3000 VA
Efficiency
98% Eco mode, 94% online mode
Run Time (Up To)
3 min at full load ¦ 60 min at 300 Watts ¦ 36 min at 500 Watts ¦ 22 min at 800 Watts ¦ 13 min at 1200 Watts ¦ 7 min at 1800 Watts ¦ 4 min at 2500 Watts
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - mini terminal block ¦ 1 x remote power off - mini terminal block ¦ 1 x relay output - mini terminal block
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Included Accessories

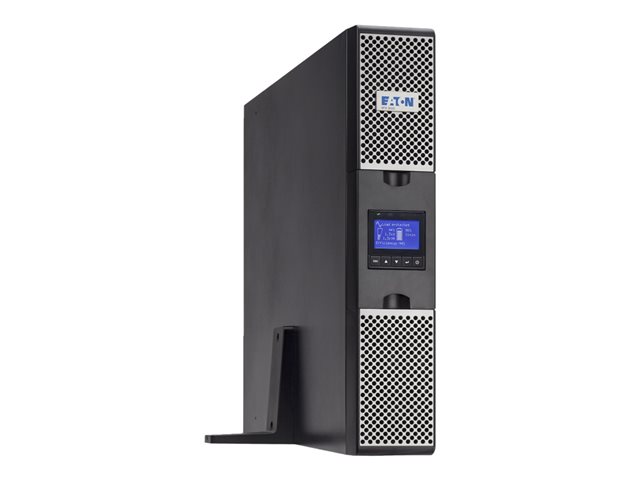

Tower stand
Cables Included
2 x power cable - external ¦ USB cable - external ¦ Serial cable - external ¦ Power cable - external - 1.8 m

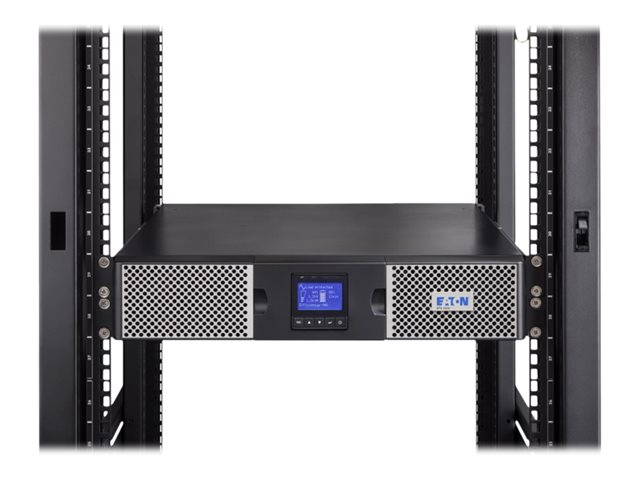

Rack Mounting Kit
Included
Features

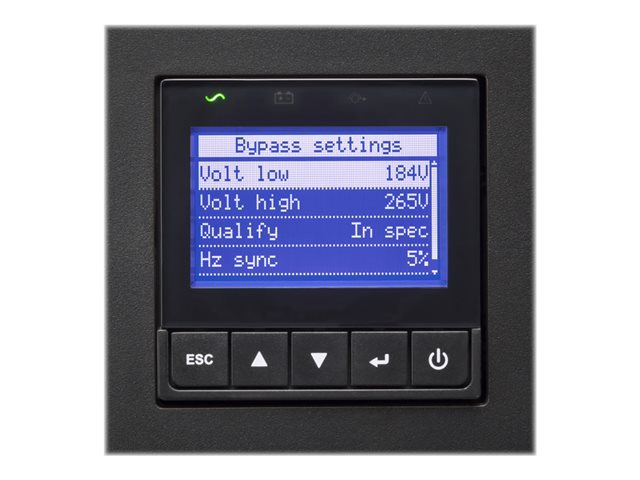

Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, double conversion
Compliant Standards
TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B
Sustainability Information
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 96% (non-condensing)
