Eaton 9PX 1500i RT2U - UPS - 1500 Watt - 1500 VA

Images Manuals

Images for illustrative purposes

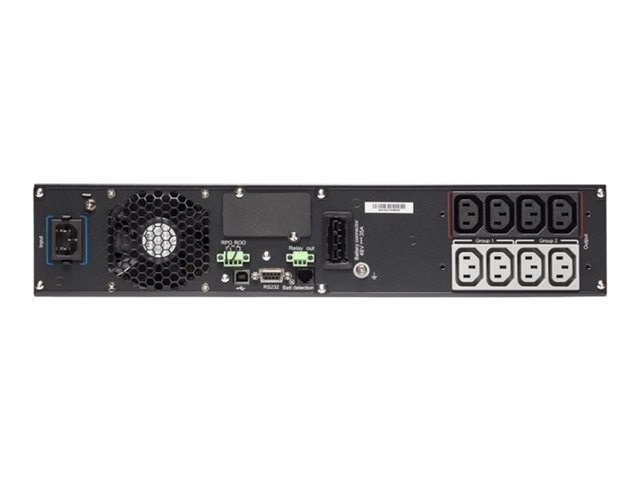

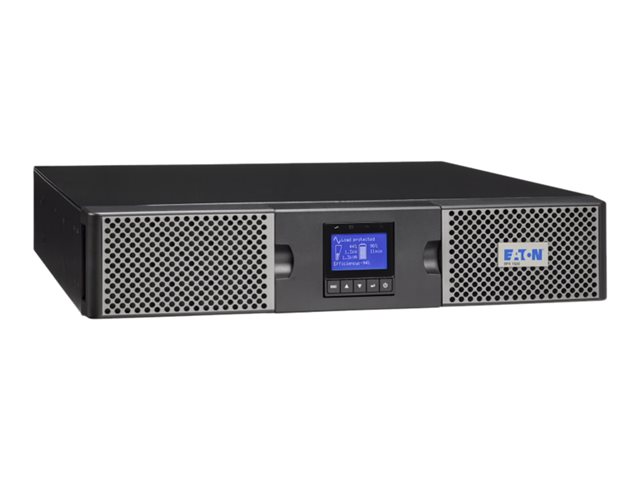

Eaton 9PX 1500i RT2U

Name: Eaton 9PX 1500i RT2U
Brand: EATON
SKU: MMECE92149
Price: 2323.94 EUR
Availability: InStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9PX1500IRTNBS) - (MMECE92149)

Model: Eaton 9PX

9PX 1500i RT2U - UPS - 1500 Watt - 1500 VA

Graphical LCD display
Availability and flexibility
Paralleling functionality
Load segment control

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

4 Available to Ship
Order within 5Hrs 21Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€3185.43~~

€2323.94 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 9PX UPS provides advanced protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).

Features Summary

Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing.
Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems.
Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology!
Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.

Specification Summary

Product Description

Eaton 9PX 1500i RT2U - UPS - 1500 Watt - 1500 VA

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Rack Size

19" - 2U

Weight

18.9 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V ± 1%

Power Capacity

1500 Watt / 1500 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

8 x power IEC 60320 C13

Battery

Lead Acid

Run Time (Up To)

5 min at full load

Networking

RS-232, USB, Ethernet

Remote Management Protocol

SNMP

Included Accessories

BS input cord, 2 mounting brackets, tower stand

Colour

Black/silver

Dimensions (WxDxH)

44 cm x 45 cm x 8.65 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340620324

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Height (Rack Units)

Rack Size

19"

Colour

Black/silver

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 176 - 276 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Power Capacity

1500 Watt / 1500 VA

Output Waveform

Sinewave

Efficiency

92.5%, 97.5% Eco mode

Battery

Technology

Lead Acid

Features

Sealed

Networking

Remote Management Interface

RS-232, USB, Ethernet

Remote Management Protocol

SNMP

Expansion / Connectivity

Interfaces

1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x remote power (on/off) - terminal block ¦ 1 x relay output - terminal block ¦ 3 x dry contact output ¦ 1 x dry contact input

Expansion Slots

1 (total) / 0 (free) x Expansion Slot

Miscellaneous

Included Accessories

BS input cord, 2 mounting brackets, tower stand

Cables Included

2 x power cable (IEC) - external ¦ USB cable - external ¦ Serial cable - external

Rack Mounting Kit

Included

Features

LCD display, internal bypass, automatic shut down

Software / System Requirements

Software Included

Eaton Intelligent Power Protector, Intelligent Power Manager

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Dimensions & Weight

Width

44 cm

Depth

45 cm

Height

8.65 cm

Weight

18.9 kg
