Eaton 9PX

Name: Eaton 9PX
Brand: EATON
SKU: MMECE92183
Price: 1493.61 EUR
Availability: InStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (9PX1000IRT2UBS) - (MMECE92183)

Model: Eaton 9PX

9PX - UPS - 1000 Watt - 1000 VA

Graphical LCD display
Availability and flexibility
Paralleling functionality
Load segment control

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

1 Available to Ship
Order within 8Hrs 9Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€2029.88~~

€1493.61 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

As an industry professional, and because of rising energy costs and the business need for energy-efficient performance, you'll be looking for ways to reduce costs and consumption. The Eaton 9PX UPS enables you to secure all your mission-critical applications, giving you the reductions in energy usage and costs you need.

Essentially, the Eaton 9PX UPS gives you the chance to optimize power density and minimize capital and operating expenditure, along with the assurance that, should the power go down, critical processes will be maintained in your IT infrastructures and other applications.

Features Summary

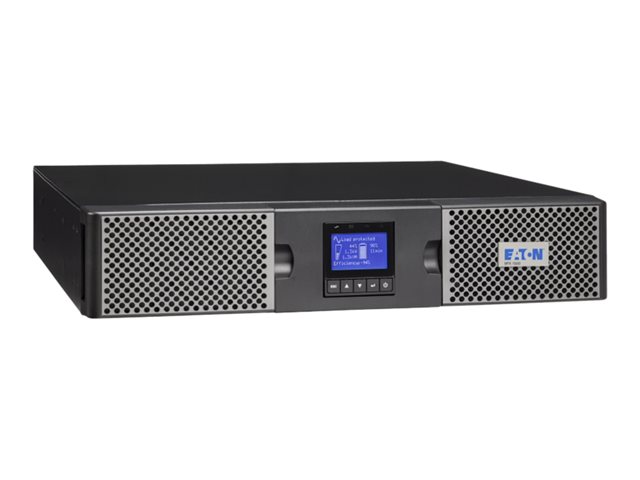

Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing.
Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems.
Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology!
Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.

Specification Summary

Product Description

Eaton 9PX - UPS - 1000 Watt - 1000 VA

Device Type

UPS - rack-mountable / external

Rack Size

19" - 2U

Weight

17.4 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V ± 1%

Power Capacity

1000 Watt / 1000 VA

Input Connectors

1 x power BS

Output connectors

8 x power IEC 60320 C13

Battery

Lead Acid expandable - 7 Ah

Batteries Qty

Run Time (Up To)

6 min at full load

Networking

RS-232, USB

Included Accessories

Tower stand

Colour

Black, silver

Dimensions (WxDxH)

44 cm x 45 cm x 8.65 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340620294

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Rack Size

19"

Colour

Black, silver

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 100 - 276 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power BS

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Power Capacity

1000 Watt / 1000 VA

Output Waveform

Sinewave

Efficiency

91.5% online mode, 97.5% Eco mode

Power Factor (PF)

0.99

Battery

Type

Expandable

Quantity

Technology

Lead Acid

Voltage Provided

12 V

Capacity

7 Ah

Run Time (Up To)

6 min at full load ¦ 16 min at half load ¦ 9 min at 800 Watts ¦ 28 min at 300 Watts

Features

Sealed

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

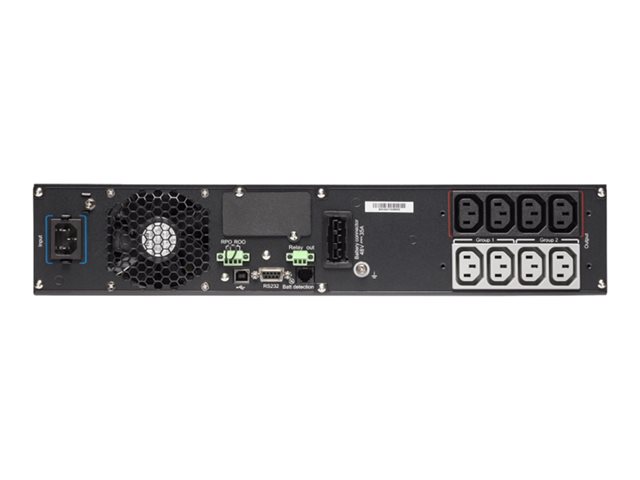

1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - mini terminal block ¦ 1 x relay output - mini terminal block ¦ 1 x remote power off - mini terminal block

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Included Accessories

Tower stand

Cables Included

3 x power cable - external ¦ USB cable - external ¦ Serial cable - external

Rack Mounting Kit

Included

Features

Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, double conversion

Compliant Standards

TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature
