BenQ ST6504 ST04 Series - 65" LED-backlit LCD disp

Images Manuals

Images for illustrative purposes

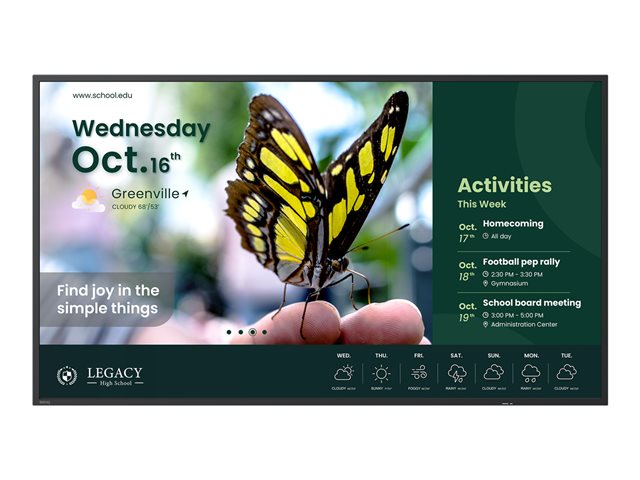

BenQ ST6504 ST04 Series

View all BENQ Digital Signage | Large Displays - Visit the BENQ Store (9H.S46TB.RE2) - (MMECO90167)

ST6504 ST04 Series - 65" LED-backlit LCD display - 4K - for digital signage

Vibrant display quality
Advanced connectivity options
Robust operational endurance
User-friendly management features
Flexible installation options

FREE Delivery on orders over €250

2 Available to Ship
Order within 3Hrs 12Mins for: FREE Delivery (8 Jun or 9 Jun)

€1689.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The BenQ ST6504 is designed for commercial use, featuring a 65-inch LED-backlit LCD flat panel display with a resolution of 3840 x 2160, suitable for digital signage. With a maximum brightness of 350 cd/m2 and a wide viewing angle of 178 degrees, this display ensures clear visuals from various positions. The ADS panel technology delivers vibrant colors, supporting a 99% sRGB color gamut, making it suitable for presentations and informational displays.

Equipped with a powerful ARM Cortex-A73 quad-core processor and 4 GB of RAM, the ST6504 provides reliable performance for multimedia applications. With 32 GB of internal storage, users can manage content through its two USB 2.0 ports. The device is ENERGY STAR certified, signifying efficient operation while being environmentally conscious. With up to 18 hours of operating time and multiple connectivity options such as HDMI, LAN, and USB, the BenQ ST6504 serves as a dependable display solution for businesses.

Features Summary

Vibrant display quality
The ST6504 features a 16:9 aspect ratio and an image contrast ratio of 1200:1, providing visual depth and clarity essential for capturing attention in commercial applications.
Advanced connectivity options
Equipped with multiple ports including HDMI, USB, and LAN, users can easily integrate devices, making it convenient for presentations and media sharing.
Robust operational endurance
With an operational power consumption of 76 W and a standby mode of just 0.5 W, the device is designed for long hours of usage while saving energy in downtime.
User-friendly management features
Support for BenQ Device Management Solution (DMS) allows for easy monitoring and control of display settings, enhancing user experience and efficiency.
Flexible installation options
The VESA compatibility and flat panel mount interface of 400 x 400 mm allow for versatile mounting configurations, simplifying integration into various environments.

Specification Summary

Product Description

BenQ ST6504 ST04 Series - 65" LED-backlit LCD display - 4K - for digital signage

Product Type

LED-backlit LCD flat panel display

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/2266206

Diagonal Class

65"

Commercial Use

Yes - digital signage

Platform

Android

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Frame Rate & Enhancement Technology

60 Hz Frame Rate

Video Interface

HDMI

HDMI Ports Qty

2 ports

Connectivity

LAN

Technology

ADS

LCD Backlight Technology

Direct LED

Image Aspect Ratio

16:9

TV Tuner

No tuner

Commercial Features

BenQ Device Management Solution (DMS), Real-Time Clock (RTC)

Picture Enhancements

99% sRGB colour gamut, 72% Colour Gamut NTSC

Speaker System

2 speakers

Storage Capacity

32 GB

USB

2 ports

Included Accessories

Remote control, X-Sign Software, X.Sign Broadcast

Voltage

AC 100-240 V (50/60 Hz)

Energy Class

Class G

Power Consumption Operational

76 Watt

Power Consumption Stand by

0.5 Watt

Dimensions (WxDxH)

145.29 cm x 5.97 cm x 82.92 cm

Weight

16.9 kg

Environmental Standards

ENERGY STAR Qualified

Specifications

EAN / GTIN:

4718755096150

General

Product Type

LED-backlit LCD flat panel display

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/2266206

Energy Class

Class G

Power Consumption Operational

76 Watt

Power Consumption SDR (On mode)

132 kWh/1000h

Diagonal Class

65"

Commercial Use

Yes - digital signage

Series

ST04 Series

Platform

Android

Operating System

Android OS 14

TV Tuner

No tuner

TV Tuner Presence

Sensors

Infrared (IR)

Video Interface

HDMI

HDMI Ports Qty

2 ports

Modes

Portrait mode, landscape mode

Picture Enhancements

99% sRGB colour gamut, 72% Colour Gamut NTSC

Width

145.29 cm

Depth

5.97 cm

Height

82.92 cm

Weight

16.9 kg

Display

LCD Display Technology

ADS

Pixel Pitch

0.37 mm

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Frame Rate

LCD Backlight Technology

Direct LED

Coating

Anti-glare, 25% haze, matte

Image Contrast Ratio

1200:1

Brightness

350 cd/m²

Viewing Angle

178 degrees

Response Time

8 ms

Display Menu Language

Multilingual

Backlight Life

30,000 hour(s)

Commercial Features

BenQ Device Management Solution (DMS), Real-Time Clock (RTC)

Operation Hours / Days

18 / 7

Features

10-bit support

Stands & Mounts

Flat Panel Mount Interface

400 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

USB Ports Qty

Configuration

ARM Cortex-A73 Quad-Core - 4 GB - 32 GB - Mali-G52 MC1

Remote Control

Type

Remote control

Audio System

Speaker System

2 speakers

Output Power / Total

24 Watt

Speakers

2 x main channel speaker - 12 Watt

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Fast Ethernet

Connect & Share

InstaShare 2

Connections

Connector Type

2 x HDMI input ¦ LAN ¦ RS-232 ¦ 2 x USB 2.0

Miscellaneous

Included Accessories

X-Sign Software, X.Sign Broadcast

Cables Included

HDMI cable - 1.5 m ¦ RS-232 cable - 1.8 m

Compliant Standards

CEC

Sustainability Information

ENERGY STAR Certified

Yes

Power

Power Device

Power supply

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption Stand by

0.5 Watt

Dimensions & Weight (Shipping)

Width (Shipping)

163.5 cm

Depth (Shipping)

15.9 cm

Height (Shipping)

98.7 cm

Weight (Shipping)

25.3 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 80% RH (non-condensing)
