Datalogic Memor 17 - data collection terminal - An

Images Manuals

Images for illustrative purposes

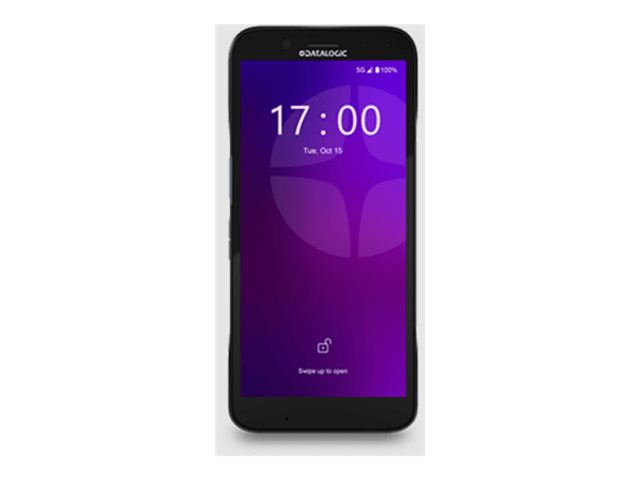

Datalogic Memor 17

Name: Datalogic Memor 17
Brand: DATALOGIC
SKU: MMECO10075
Price: 826.60 EUR
Availability: InStock

View all DATALOGIC Data Collection Terminals - Visit the DATALOGIC Store (944950003) - (MMECO10075)

Model: Datalogic Memor

Memor 17 - data collection terminal - Android 13 or later - 64 GB - 6" - 5G

Robust battery life
High-performance processing
Versatile connectivity options
Advanced scanning features
Durable and rugged design

FREE Delivery on orders over €250

**Note: PLEASE CHECK, most manufacturers do not provide cables with Handheld Scanners

16 Available to Ship
Order within 6Hrs 19Mins for: FREE Delivery (8 Jun or 9 Jun)

€826.60 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Datalogic Memor is a pocket-sized Windows powered mobile computer. This extremely compact, lightweight, and versatile device combines fully integrated automatic data capture (1D bar code) and communication capabilities.

The Datalogic Memor system architecture is based on the blend of Intel XScale series processors coupled with the Windows CE operating system and it was developed to meet the most demanding customer needs. A huge quantity of on-board memory is available and the possibility to expand it through an externally accessible SD card slot enables the user to adapt the terminal for any specific need.

A customized layout keyboard and a sharp and brilliant touch screen display make the Datalogic Memor an easy-to-use tool for your daily work. Thanks to its great ergonomics and the state of the art architecture, the Datalogic Memor is the right answer to enhance your business opportunities.

Features Summary

Robust battery life
The Datalogic Memor 17 is equipped with a 4000 mAh lithium-ion battery that supports long hours of operation, minimizing downtime and enhancing productivity.
High-performance processing
Powered by a Qualcomm 4490 processor with 8 cores running at 2.4 GHz, this terminal ensures swift processing capabilities for seamless data handling.
Versatile connectivity options
With support for multiple wireless standards including 5G and Bluetooth 5.3, the device facilitates fast and reliable connectivity for various operational needs.
Advanced scanning features
The device incorporates a standard-range imager and supports Green Spot technology, making scanning intuitive and efficient in diverse work environments.
Durable and rugged design
Built to withstand harsh conditions, the Datalogic Memor 17 features water and dust resistance (IP67) along with drop-resistance, ensuring longevity and reliability in the field.

Specification Summary

Product Description

Datalogic Memor 17 - data collection terminal - Android 13 or later - 64 GB - 6" - 5G

Product Type

Data collection terminal - rugged

Operating System

Android 13 or later

Display

6" colour LTPS - LED backlight - 1080 x 2160 - Multi-Touch

Processor

Qualcomm qualcomm 4490 (8-core)

Processor Clock Speed

2.4 GHz

Storage

64 GB UFS

RAM

6 GB

Supported Flash Memory Cards

microSD

Cellular Technology

Cellular Protocols

FR1, 5G NR, LTE Advanced, GSM, WCDMA

Wireless Connectivity

802.11a/b/g/n/ac/ax (Wi-Fi 6E), 802.11 d/h/i/k/r/v/w/mc, Bluetooth 5.3, NFC

Rear Camera

13 Megapixel focus: automatic

Front Camera

8 Megapixel - fixed focus

Navigation System

A-GPS/GPS/GLONASS/Gallileo/Beidou

Barcode Reader

Yes (2D imager)

RFID Specification

ISO 14443A, ISO 14443B, ISO 15693, Felica, Mifare

Features

USB host

Dimensions (WxDxH)

7.67 cm x 1.35 cm x 16.5 cm

Weight

245 g

Colour

Black

Manufacturer Warranty

1-year warranty

Specifications

General

Product Type

Data collection terminal - rugged

Operating System

Android 13 or later

Display

Type

6" colour LTPS - LED backlight

Resolution

1080 x 2160

Touchscreen

Multi-Touch

Image Aspect Ratio

18:9

Image Brightness

450 cd/m²

Features

5-point multi-touch, capacitive touch screen, Corning Gorilla glass 7, optical bonding, glove touch mode, stylus touch mode, anti-fingerprint, water rejection

Processor

Qualcomm qualcomm 4490

Processor Clock Speed

2.4 GHz

Number of Cores

8-core

Memory

Storage

64 GB UFS

RAM

6 GB

Supported Flash Memory Cards

microSD

Max Supported Capacity

2 TB

Communications

SIM Card Type

Nano SIM, Electronic SIM card (e-SIM)

Cellular Technology

Cellular Protocols

FR1, 5G NR, LTE Advanced, GSM, WCDMA

Wireless Connectivity

802.11a/b/g/n/ac/ax (Wi-Fi 6E), 802.11 d/h/i/k/r/v/w/mc, Bluetooth 5.3, NFC

Security Protocols & Features

WPA3-Enterprise, MIMO technology

Rear Camera

Sensor Resolution

13 Megapixel

Focus Adjustment

Automatic

Light Source

LED flash

Features

Torch mode

Front Camera

Sensor Resolution

8 Megapixel

Focus Adjustment

Fixed focus

Navigation System

Receiver

A-GPS/GPS/GLONASS/Gallileo/Beidou

Multimedia

Audio

2 noise-cancelling microphones, speaker

Input Device

Type

Push-to-talk button, 2 side scan keys, touch-screen

Barcodes

Barcode Reader

Yes

Scan Element Type

2D imager

Max Working Distance

100 cm

RFID

RFID Specification

ISO 14443A, ISO 14443B, ISO 15693, Felica, Mifare

Software

Preloaded Software

Datalogic Shield, Launcher, Enterprise Browser, Scan2Deploy Studio, OEMConfig, Datalogic SoftSpot, Google Mobile Services, SOTI MobiControl, VMWare Workspace ONE UEM, Microsoft Intune, 42Gears SureMDM, Ivanti Avalanche, Stay-Linked SmartTE, Zello

Expansion and Connectivity

Expansion Slots

1 x microSD

Interfaces

1 x USB-C 3.2 Gen 1 ¦ 1 x USB-C 2.0

USB Host

Yes

Battery

Technology

Lithium Ion

Capacity

4000 mAh

Miscellaneous

Colour

Black

Sensors

Vibration sensor, 3-axis accelerometer and gyroscope, ambient light sensor, proximity sensor, magnetometer, barometer

Features

Green Spot technology, drop-resistant, chemical-resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), standard-range imager, water-resistant, dust protection, Qi Wireless Charging, Voice over Long-Term Evolution (VoLTE)

Vibrating Alert

Yes

Compliant Standards

MIL-STD-810H, IP65, IP67, EU RoHS

Dimensions & Weight

Width

7.67 cm

Depth

1.35 cm

Height

16.5 cm

Weight
