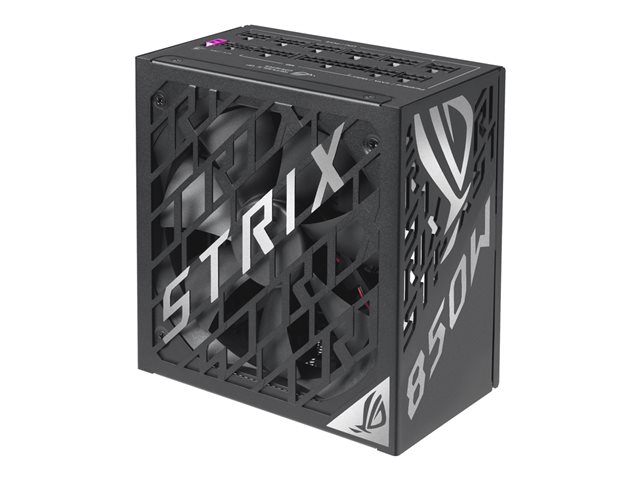

ASUS ROG Strix - power supply - 850 Watt

Images Manuals

Images for illustrative purposes

ASUS ROG Strix

Name: ASUS ROG Strix
Brand: ASUSTEK
SKU: WCE90YE00W2B0NA00
Price: 197.96 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

View all ASUSTEK PSU - Visit the ASUSTEK Store (90YE00W2-B0NA00) - (WCE90YE00W2B0NA00)

5.0(2)

ASUS ROG Strix - power supply - 850 Watt

Built to run cool
Heart of gold
Outshine the competition

FREE Delivery on orders over €250

4 Available to Ship
Order within 22Hrs 1Mins for: Delivery (9 Jun or 10 Jun)

€197.96 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.

Features Summary

Built to run cool
The ROG Strix 1000 W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1000 W Gold Aura Edition, so it's all set to integrate with the Aura Sync illumination ecosystem - adding aesthetic style to raw power.

Specification Summary

Product Description

ASUS ROG Strix - power supply - 850 Watt

Device Type

Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance

ATX12V 3.1/ EPS12V

80 PLUS Certification

80 PLUS Platinum

Weight

2.8 kg

Input Voltage

AC 100-240 V

Output Voltage

+3.3, +5, ±12 V, -12V, +5Vsb V

Power Capacity

850 Watt

Output Current

+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 70.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A

Output connectors

1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power

Modular Cable Management

Yes

Included Accessories

ROG Strix DIY sticker

Dimensions (WxDxH)

15 cm x 16 cm x 8.6 cm

Manufacturer Warranty

10 years warranty

Specifications

EAN / GTIN:

4711387594520

General

Device Type

Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance

ATX12V 3.1/ EPS12V

PSU Form Factor

ATX

Power Device

Input Voltage

AC 100-240 V

Power Output Connectors Details

Output Voltage

+3.3, +5, ±12 V, -12V, +5Vsb V

Power Capacity

850 Watt

Output Current

+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 70.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A

Efficiency

92%

Modular Cable Management

Yes

80 PLUS Certification

80 PLUS Platinum

Miscellaneous

Included Accessories

ROG Strix DIY sticker

Cables Included

AC power cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 1 m ¦ 16-pin 12VHPWR power modular cable 75 cm ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 2 x 15 pin Serial ATA power modular cable 64 cm ¦ 4 pin power modular cable 70 cm

MTBF

120,000 hours

Features

Dual ball bearing cooling fan, fully modular, overpower protection, over voltage protection, undervoltage protection, short-circuit protection, over current protection, overheat protection, 0dB fan button, Zero RPM fan mode, GaN MOSFET, GPU-FIRST voltage stabiliser

Compliant Standards

RoHS, UL 1581, UL 758

Manufacturer Warranty

Service & Support

Limited warranty - 10 years

Dimensions & Weight

Width

15 cm

Depth

16 cm

Height

8.6 cm
