EAN / GTIN:
4711636288194

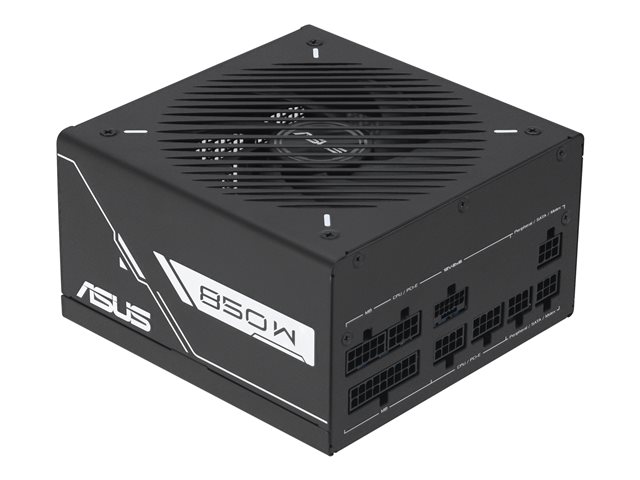

Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1/ EPS12V
Input Voltage
AC 100-240 V
Power Output Connectors Details
1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 12VHPWR ¦ 1 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Output Current
+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.5 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Gold
Cybenetics Certification
Cybenetics Gold
Cables Included
AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 60 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 80 cm ¦ 16-pin 12VHPWR power modular cable 60 cm ¦ Power 8 pin PCIe with detachable 2 pin section modular cable 60 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 80 cm ¦ 15 pin Serial ATA power modular cable 52 cm ¦ 15 pin Serial ATA power modular cable 64 cm ¦ 4 pin internal power modular cable 85 cm
Features
Fully modular, dual ball bearing cooling fan, overheat protection, over current protection, surge & inrush protection, overload protection, short-circuit protection, undervoltage correction
Compliant Standards
RoHS, UL1581, UL758
Service & Support
Limited warranty - 8 years
