Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.


Features Summary

  • ROG heatsinks
    ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
  • Axial-tech fan design
    Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, ASUS has scaled that design to 120 mm so it keeps things cool at low RPMs while producing less noise.
  • Dual ball fan bearings
    The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
  • 0 dB technology
    To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
  • ATX 3.0 compatible
    The power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600 W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
  • ARGB-illuminated fan and Aura Sync
    The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

Specification Summary

Product Description

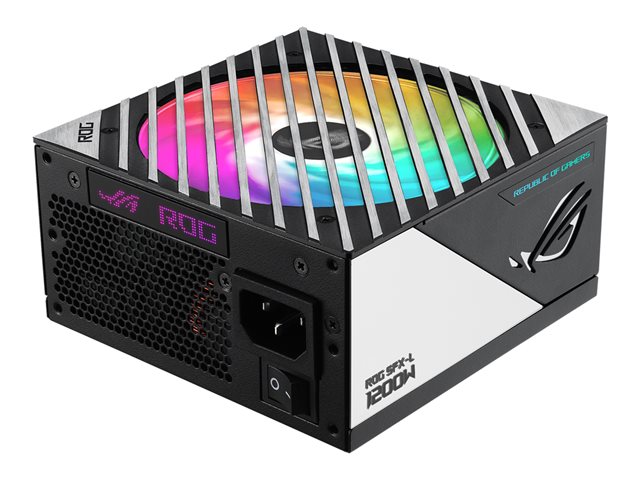

ASUS ROG Loki SFX-L - power supply - 1200 Watt
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX 3.0 / SFX-L
80 PLUS Certification
80 PLUS Titanium
Weight
2.15 kg
Input Voltage
AC 100-240 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1200 Watt
Output Current
+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A
Output connectors
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Modular Cable Management
Yes
Cooling System
120 mm fan
Included Accessories
SFX to ATX bracket
Dimensions (WxDxH)
12.5 cm x 12.5 cm x 6.35 cm
Manufacturer Warranty
10 years warranty

Specifications

EAN / GTIN:
4711081721574
General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX 3.0 / SFX-L
PSU Form Factor
SFX-L
Power Device
Input Voltage
AC 100-240 V
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1200 Watt
Output Current
+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Titanium
Miscellaneous
Included Accessories
SFX to ATX bracket
Cables Included
AC input cable - external ¦ Power 24 pin ATX modular cable 45 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 55 cm ¦ 2 x 16-pin 12VHPWR power cable 45 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 45 cm ¦ 2 x 3x Serial ATA modular cable ¦ ARGB sync cable 80 cm ¦ 4 pin internal power cable
Cooling System
120 mm fan
Features
Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, ARGB fan
Compliant Standards
RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 10 years ¦ Limited warranty - RGB LEDs - 3 years
Dimensions & Weight
Width
12.5 cm
Depth
12.5 cm
Height
6.35 cm
Weight
2.15 kg
