Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

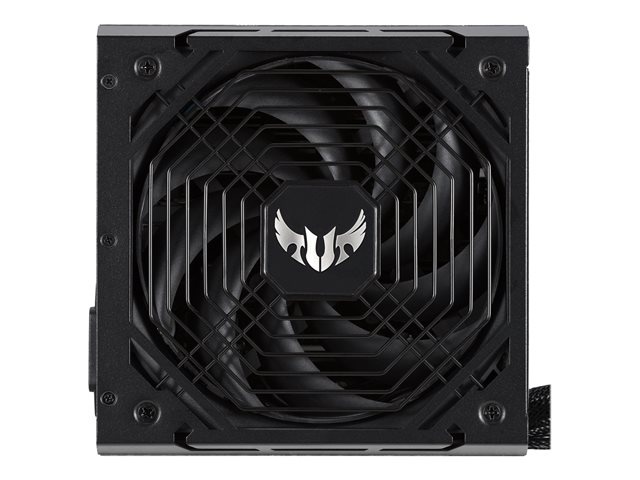

The ASUS TUF-GAMING-650B power supply is designed to provide reliable performance for high-demand systems. With a robust power output of 650 W, it seamlessly supports various components while ensuring optimal stability and efficiency. Compliant with the 80 PLUS Bronze certification, this power supply effectively reduces energy consumption and keeps power costs low. Equipped with a dual ball bearing cooling fan and 0db Technology, it maintains quiet operation even under heavy loads.
Safety is a priority with the ASUS TUF-GAMING-650B, featuring a comprehensive set of protection measures including overheat, overcurrent, overvoltage, overpower, undervoltage, and short-circuit protection. It adheres to ATX12V and EPS12V specifications, allowing it to integrate easily into a wide range of systems. With multiple connectors, including detachable options, it adapts to meet the needs of modern gaming and workstation builds.
Specification Summary
Product Description

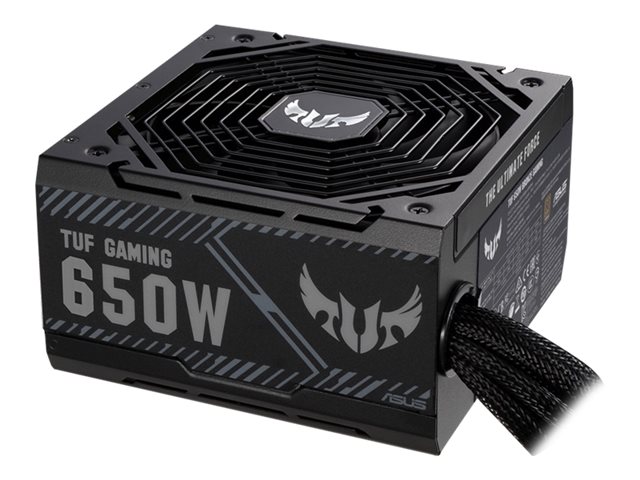

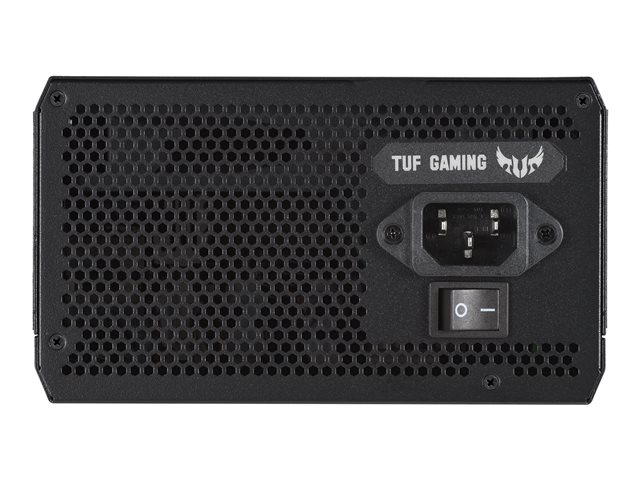

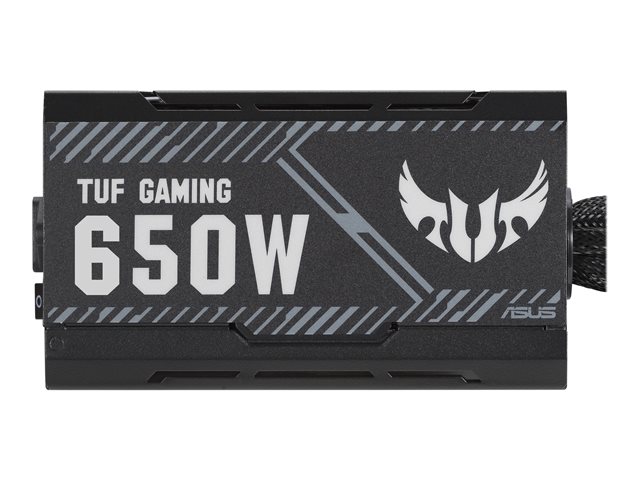

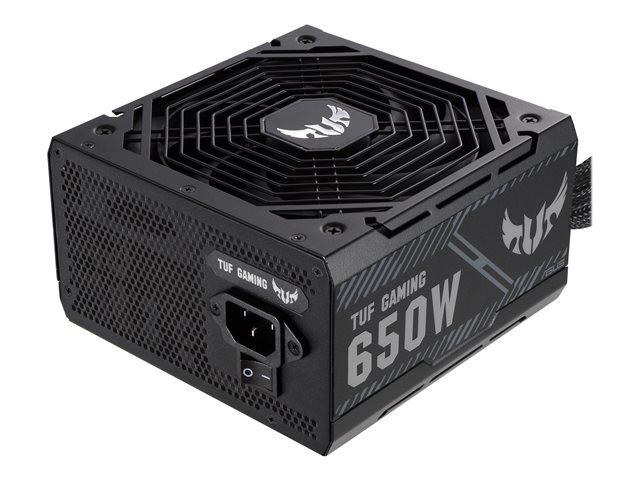

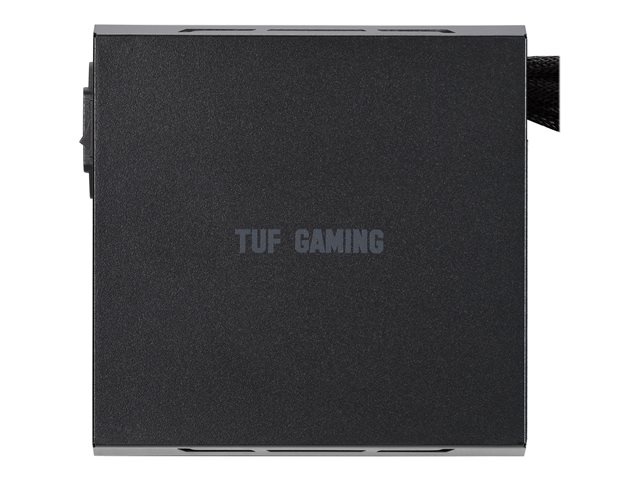

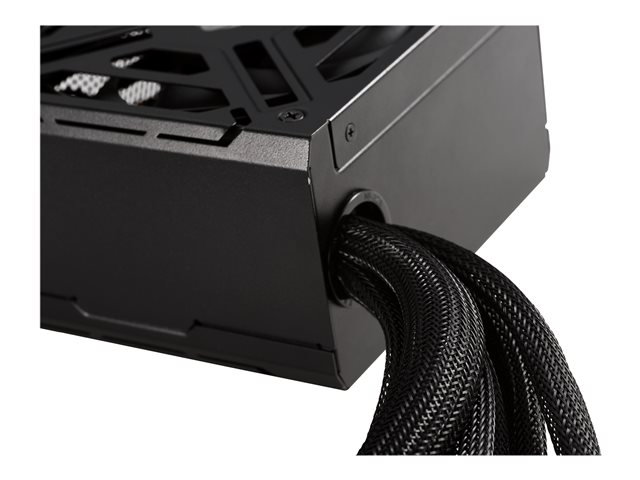

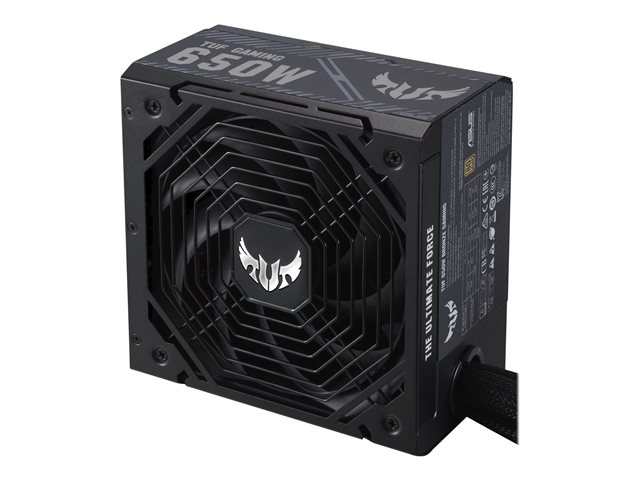

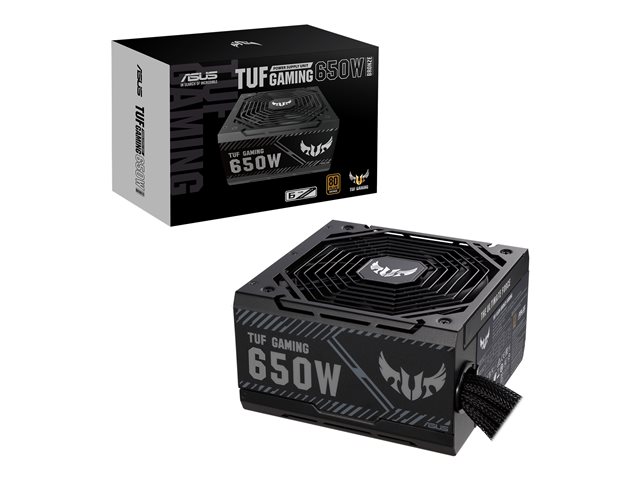

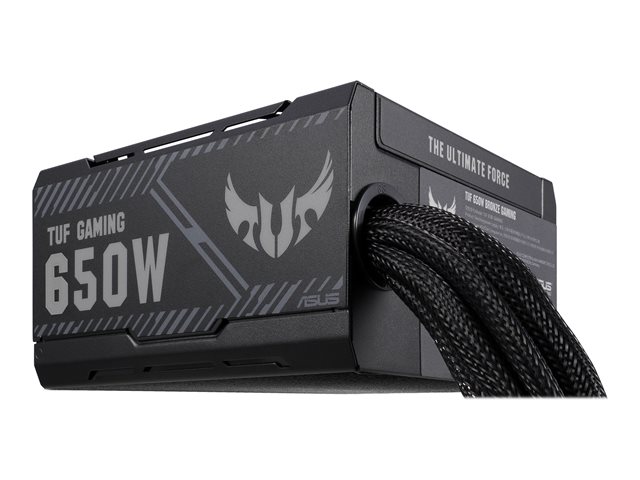

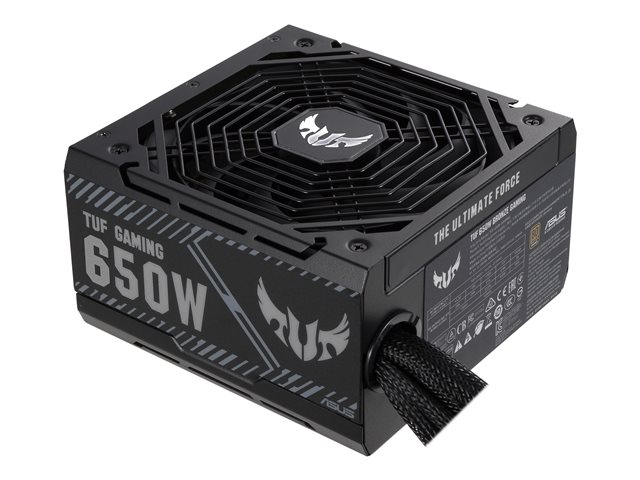

ASUS TUF-GAMING-650B - power supply - 650 Watt
Device Type
Power supply - internal
Specification Compliance
ATX12V / EPS12V
80 PLUS Certification
80 PLUS Bronze
Input Voltage
AC 100-240 V
Output Voltage
+3.3, +5, ±12 V
Output Current

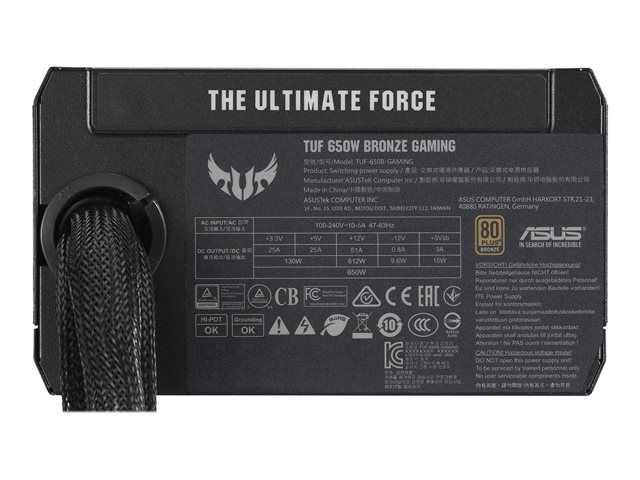

+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 51 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Output connectors
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Included Accessories
TUF Gaming sticker
Dimensions (WxDxH)
15 cm x 15 cm x 8.6 cm
Manufacturer Warranty
6-year warranty
