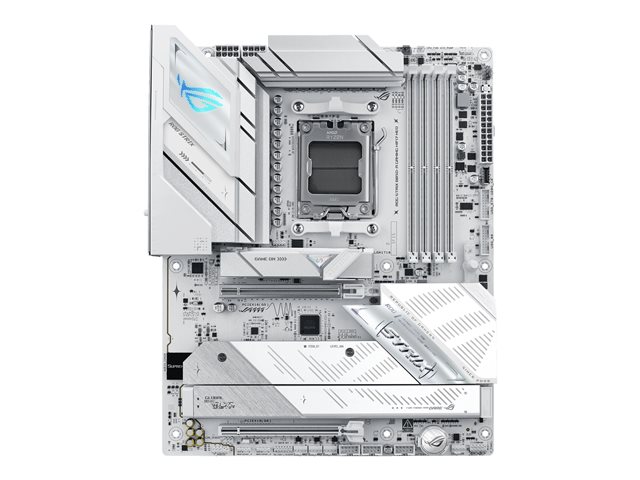

ASUS ROG STRIX B850-A GAMING WIFI7 NEO

Name: ASUS ROG STRIX B850-A GAMING WIFI7 NEO
Brand: ASUSTEK
SKU: WCE90MB1P10M0EAY0
Price: 295.86 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1P10-M0EAY0) - (WCE90MB1P10M0EAY0)

Model: ASUS

ASUS ROG STRIX B850-A GAMING WIFI7 NEO - motherboard - ATX - Socket AM5 - AMD B850

Powerful audio experience
Versatile expansion slots
Broad compatibility
Extensive connectivity options
Enhanced cooling solutions

FREE Delivery on orders over €250

2 Available to Ship
Order within 6Hrs 34Mins for: FREE Delivery (8 Jun or 9 Jun)

€295.86 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS ROG STRIX B850-A GAMING WIFI7 NEO motherboard delivers a robust platform for gaming enthusiasts, featuring high-definition audio with SupremeFX, Dolby Atmos support, and an array of expansion slots. With compatibility for Ryzen processors and supporting DDR5 RAM, this motherboard ensures performance and speed for your gaming rig. The advanced cooling solutions and comprehensive connectivity options, including USB-C and multiple SATA ports, provide flexibility and efficiency for all your gaming needs.

Specification Summary

Product Description

ASUS ROG STRIX B850-A GAMING WIFI7 NEO - motherboard - ATX - Socket AM5 - AMD B850

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered

Storage Ports

2 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports

2 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Specifications

EAN / GTIN:

4711636446518

General

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8400 MT/s (O.C.), 8200 MT/s (O.C.), 9000 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (ALC4080)

Compliant Standards

High Definition Audio, Dolby Atmos

LAN

Network Controller

Mediatek MT7925

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4/x2 modes) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (5Gigabit Ethernet) ¦ 2 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out

Internal Interfaces

1 x Thunderbolt 4 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 6 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), LANGuard, Clear CMOS Button, BIOS FlashBack button, Start button, ASUS Asynchronous Clock, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, BIOS FlashBack LED, CrashFree BIOS 3, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 14+2+2 Phase Power Design, AI Cache Boost, AI Cooling II, chipset heatsink, AI Networking II, AMD Precision Boost Overdrive (PBO), Savitech SV3H712 amplifier, Preboot eXecution Environment (PXE)

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, 4 x M.2 rubbers

Cables Included

2 x Serial ATA cable

Software Included

Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, WinRAR (40 days trial)

Width

30.5 cm

Depth

24.4 cm
