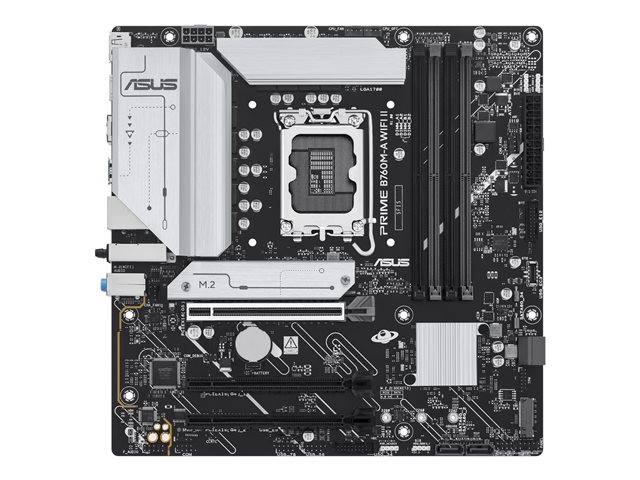

ASUS PRIME B760M-A WIFI II

Name: ASUS PRIME B760M-A WIFI II
Brand: ASUSTEK
SKU: WCE90MB1NF0M0EAY0
Price: 139.75 EUR
Availability: InStock

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1NF0-M0EAY0) - (WCE90MB1NF0M0EAY0)

Model: ASUS

ASUS PRIME B760M-A WIFI II - motherboard - micro ATX - LGA1700 Socket - B760

Efficient Power Management
Advanced Audio Capabilities
Multiple Connectivity Options
Robust Design Features
Flexible Storage Support

FREE Delivery on orders over €250

4 Available to Ship
Order within 12Hrs 56Mins for: Delivery (8 Jun or 9 Jun)

€139.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS PRIME B760M-A WIFI II motherboard offers features and compatibility for building a powerful computing system. Designed with the Intel B760 chipset, it supports a range of 12th, 13th, and 14th Generation Intel processors, making it a versatile choice for various computing needs. The motherboard features 4 DIMM slots supporting DDR5 SDRAM with speeds up to 7200 MT/s and comes equipped with 2.5 Gigabit Ethernet for high-speed networking. Connectivity is enhanced with multiple USB 3.2 Gen 2 and USB-C ports, along with HDMI and DisplayPort outputs for flexible display options. The inclusion of Intel Rapid Storage Technology allows for RAID configurations, ensuring data protection and performance. With features like ASUS EZ Flash 3 and Q-Design, this motherboard is tailored for a DIY-friendly experience while ensuring efficient power management and durability. The integrated audio solution delivers high definition audio quality, making it suitable for multimedia applications.

Features Summary

Efficient Power Management
The motherboard features ASUS DIGI+ VRM ensuring optimal power delivery to the CPU for improved performance and stability during demanding tasks.
Advanced Audio Capabilities
With high definition audio support and a 7.1-channel configuration, this motherboard provides an immersive audio experience for gaming and multimedia.
Multiple Connectivity Options
Equipped with various interfaces including HDMI, DisplayPort, and multiple USB ports, the motherboard allows seamless connection to a wide range of peripherals.
Robust Design Features
The ASUS Prime B760M-A WIFI II includes Stack Cool 3+ and a 6 Layer PCB, enhancing thermal management and overall durability for long-term use.
Flexible Storage Support
With four SATA ports and two M.2 slots, this motherboard accommodates extensive storage options, catering to various data requirements and RAID setups.

Specification Summary

Product Description

ASUS PRIME B760M-A WIFI II - motherboard - micro ATX - LGA1700 Socket - B760

Product Type

Motherboard - micro ATX

Chipset Type

Intel B760

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 5 x USB 2.0 via headers)

Audio

High Definition Audio (7.1-channel)

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.4

Specifications

EAN / GTIN:

4711636275439

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel B760

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4800 MT/s, 5000 MT/s, 5200 MT/s, 5400 MT/s, 5600 MT/s, 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

High Definition Audio (7.1-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 (x1 mode)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial

Internal Interfaces

5 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, UEFI BIOS

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS ProCool, ASUS Aura Sync, ASUS EZ DIY, ASUS Fan Xpert 2+, 6 Layer PCB, Stack Cool 3+, ASUS OptiMem II, ASUS Enhanced Memory Profile (AEMP) II, DIY Friendly Design

Miscellaneous

Included Accessories

IO shield, ASUS Wi-Fi Q-antenna, 1 x M.2 rubber package, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, MyAsus, Norton 360 Deluxe (60 days trial), WinRAR

Compliant Standards

DisplayPort 1.4

Width

24.4 cm

Depth
