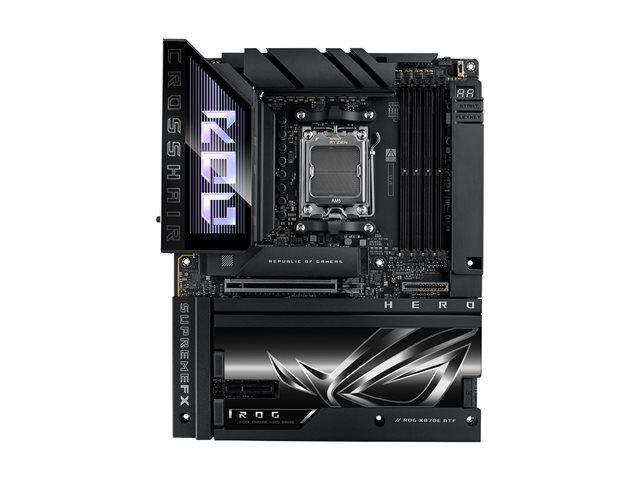

ASUS ROG CROSSHAIR X870E HERO BTF

Name: ASUS ROG CROSSHAIR X870E HERO BTF
Brand: ASUSTEK
SKU: WCE90MB1MX0M0EAY0
Price: 729.75 EUR
Availability: InStock
Rating: 4.4 (124 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1MX0-M0EAY0) - (WCE90MB1MX0M0EAY0)

4.4(124)

Model: ASUS

ASUS ROG CROSSHAIR X870E HERO BTF - motherboard - ATX - Socket AM5 - AMD X870E

Powerful performance
Immersive audio experience
Extensive expansion options
Superior networking capabilities
Advanced cooling design

FREE Delivery on orders over €250

13 Available to Ship
Order within 1Hrs 2Mins for: FREE Delivery (8 Jun or 9 Jun)

€729.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS ROG CROSSHAIR X870E HERO BTF motherboard is designed for high-performance computing, providing versatility for gamers and content creators. Supporting the AMD Ryzen 7000, 8000, and 9000 Series processors, it combines features such as a powerful 18+2+2 Phase Power Design for optimal power management and enhanced performance. With support for DDR5 SDRAM up to 8600 MT/s, users can experience rapid data processing and improved multitasking capabilities. Equipped with audio output from the SupremeFX ALC4082 and ESS ES9219 codecs, this motherboard delivers immersive sound through high definition audio technology and Dolby Atmos compliance. The motherboard also features various expansion slots, including M.2 Key M slots and PCIe 4.0 and 5.0 connections, ensuring rapid storage options and the flexibility to upgrade. Additionally, with networking options like 5 Gigabit and 2.5 Gigabit Ethernet, along with Wi-Fi 7 capabilities and Bluetooth 5.4, staying connected becomes effortless.

Features Summary

Powerful performance
The 18+2+2 Phase Power Design ensures stable power delivery for overclocking and heavy workloads, allowing for improved CPU performance and thermal management.
Immersive audio experience
With support for high definition audio and Dolby Atmos, the motherboard delivers rich sound quality, perfect for gaming and media consumption.
Extensive expansion options
Equipped with multiple M.2 Key M slots and PCIe 4.0 and 5.0 slots, this motherboard accommodates a wide array of storage solutions and graphics cards.
Superior networking capabilities
The presence of 5 Gigabit and 2.5 Gigabit Ethernet, alongside Wi-Fi 7 and Bluetooth 5.4, enables fast and reliable connectivity for gaming and streaming.
Advanced cooling design
Integrated cooling solutions and innovative features like AI Cooling II help manage thermal performance, ensuring that components operate effectively under load.

Specification Summary

Product Description

ASUS ROG CROSSHAIR X870E HERO BTF - motherboard - ATX - Socket AM5 - AMD X870E

Product Type

Motherboard - ATX

Chipset Type

AMD X870E

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 5 x M.2

USB / FireWire Ports

2 x USB4 + 2 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711636227094

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870E

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8200 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX ALC4082 / ESS ES9219

Compliant Standards

High Definition Audio, Dolby Atmos

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

2 x Thunderbolt 4/DisplayPort/USB4 ¦ 2 x USB-C 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out

Internal Interfaces

2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors, 12V-2X6 power connector, 8-pin PCI Express power connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), Clear CMOS Button, BIOS FlashBack button, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, FlexKey button, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, metal backplate, MicroFine Alloy Chokes, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, Start button, VRM heatsink design, Polymo Lighting II, 18+2+2 Phase Power Design, AI Cooling II, AI Networking II, AI Overclocking, AMD Precision Boost Overdrive (PBO), Core Flex technology, chipset heatsink, Advanced BTF design

Miscellaneous

Included Accessories

ARGB RGB extension cable, 2 x M.2 Q-Latch, 3 x M.2 Q-Slide, 5 x M.2 rubber package, ASUS Wi-Fi Q-antenna, Q-Connector, ROG bottle opener, ROG stickers, ROG thank you card, USB drive

Cables Included

4 x SATA Express cable

Software Included

Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), Drivers & Utilities

Width

30.5 cm

Depth

24.4 cm
