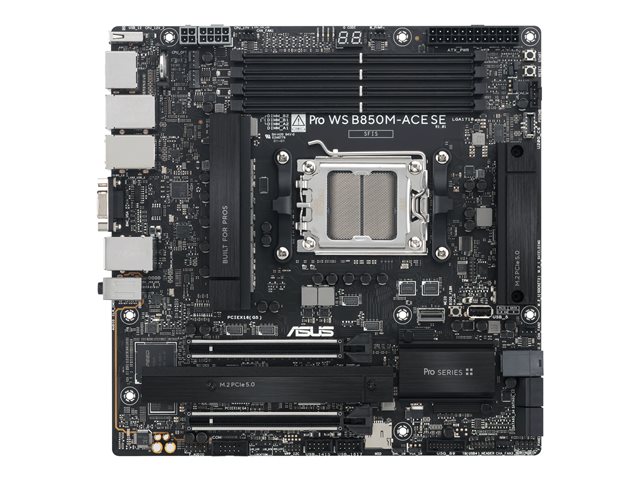

ASUS Pro WS B850M-ACE SE

Name: ASUS Pro WS B850M-ACE SE
Brand: ASUSTEK
SKU: WCE90MB1MN0M0EAY0
Price: 409.75 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1MN0-M0EAY0) - (WCE90MB1MN0M0EAY0)

Model: ASUS

ASUS Pro WS B850M-ACE SE - motherboard - micro ATX - Socket AM5 - AMD B850

Efficient connectivity
Advanced audio technology
Robust storage options
Smart cooling design
Reliable power management

FREE Delivery on orders over €250

19 Available to Ship
Order within 12Hrs 20Mins for: FREE Delivery (25 Jun or 26 Jun)

€409.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS Pro WS B850M-ACE SE motherboard offers a robust foundation for building powerful systems, supporting AMD Ryzen 7000, 8000, and 9000 Series processors with the Socket AM5 design. This micro ATX board features four DIMM slots for DDR5 SDRAM, with speeds reaching up to 5600 MT/s, enabling effective dual-channel memory architecture and AMD EXPO technology. Designed for performance, it provides connectivity options including USB 3.2 Gen 2, USB-C, and a selection of audio and network interfaces for high-definition audio and fast Ethernet connections. Multiple M.2, U.2, and SATA ports allow flexible storage configurations and RAID capabilities, ensuring system responsiveness and reliability for various applications.

Specification Summary

Product Description

ASUS Pro WS B850M-ACE SE - motherboard - micro ATX - Socket AM5 - AMD B850

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series/AMD EPYC 4005 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, ECC, on-die ECC, non-ECC, unbuffered

Storage Ports

1 x MCIO, 4 x M.2, 1 x U.2, 4 x SATA-600 (RAID)

USB / FireWire Ports

1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Graphics

ASPEED AST2600

Audio

HD Audio (8-channel)

LAN

10 Gigabit Ethernet

Specifications

EAN / GTIN:

4711636258753

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series/AMD EPYC 4005 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

5600 MT/s

Supported RAM Integrity Check

ECC, on-die ECC, non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Graphics

Graphics Controller

ASPEED AST2600

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

10 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x microSD

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 5.0 -connectors: 1 x MCIO

RAID Features

AMD RAID Xpert2 Technology

Interfaces

3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2/DisplayPort ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet)/management ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

1 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt 4 - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, Clear CMOS Button, reset button, Start button, BIOS FlashBack button, ASUS 5X Protection III, ESD Guards, ASUS DIGI+ VRM, ASUS Overvoltage Protection, aluminium heatsink design, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, M.2 heatsink, M.2 Q-Latch, overcurrent protection, Q-Code, Q-Connector, Q-LED, Q-Slot, 8+2+1 Phase Power Design, 8 Layer PCB

Miscellaneous

Included Accessories

IO shield, Q-Connector, 1 x M.2 rubber package, ACC Express Activation Key Card

Cables Included

2 x Serial ATA cable

Software Included

Adobe Creative Cloud (free trial), Armoury Crate, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), TurboV Core, WinRAR (40 days trial), ASUS Control Center Express

Width

24.4 cm

Depth

24.4 cm
