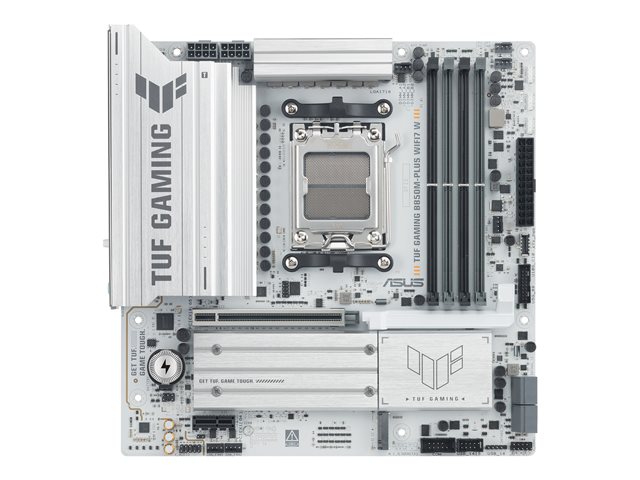

ASUS TUF GAMING B850M-PLUS WIFI7 W

Name: ASUS TUF GAMING B850M-PLUS WIFI7 W
Brand: ASUSTEK
SKU: WCE90MB1MD0M0EAY0
Price: 224.23 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1MD0-M0EAY0) - (WCE90MB1MD0M0EAY0)

Model: ASUS

ASUS TUF GAMING B850M-PLUS WIFI7 W - motherboard - micro ATX - Socket AM5 - AMD B850

Powerful chipset
Extensive RAM support
High quality audio
Versatile connectivity options
Efficient cooling design

FREE Delivery on orders over €250

9 Available to Ship
Order within 21Hrs 35Mins for: Delivery (18 Aug or 19 Aug)

€224.23 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS TUF GAMING B850M-PLUS WIFI7 W motherboard combines robust performance and essential features for gaming enthusiasts. Built on the AMD B850 chipset, it supports Ryzen 7000/8000/9000 Series processors and offers a dual-channel memory architecture with support for DDR5 SDRAM, achieving speeds up to 8000 MT/s when overclocked. With four DIMM slots and extensive storage options including multiple M.2 and Serial ATA interfaces, this motherboard provides flexibility for advanced gaming setups. Equipped with a Realtek ALC1220P sound card enabling high definition audio, the TUF GAMING B850M-PLUS WIFI7 W ensures an immersive auditory experience. Connectivity is enhanced with USB-C, multiple USB 3.2 ports, and 2.5 Gigabit Ethernet for superior networking. The motherboard features ASUS TUF Protection and a comprehensive cooling solution including an M.2 heatsink to maintain optimal performance during intense gaming sessions.

Features Summary

Powerful chipset
Utilizes the AMD B850 chipset, providing a robust foundation for gaming and high-performance computing.
Extensive RAM support
Supports up to four DIMM slots for DDR5 SDRAM, allowing for improved multitasking and memory-heavy applications.
High quality audio
Equipped with a Realtek ALC1220P audio codec for immersive sound quality and an 8-channel audio output.
Versatile connectivity options
Features multiple USB ports including USB-C and 2.5 Gigabit Ethernet for fast wired connections.
Efficient cooling design
Incorporates M.2 heatsinks and ASUS TUF protection to ensure reliable performance and thermal management.

Specification Summary

Product Description

ASUS TUF GAMING B850M-PLUS WIFI7 W - motherboard - micro ATX - Socket AM5 - AMD B850

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet

Specifications

EAN / GTIN:

4711636167451

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8000 MT/s (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220P

Compliant Standards

High Definition Audio

LAN

Network Controller

Mediatek MT7925

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS Aura Sync, TUF LANGuard, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack button, BIOS FlashBack LED, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, VRM heatsink design, 14+2+1 Phase Power Design, DIY Friendly Design, chipset heatsink, 8 Layer PCB, TUF 5K black metallic capacitors, PCH heatsink

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, TUF GAMING sticker, 1 x M.2 rubber package, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, Norton 360 for Gamers (60 days trial), TurboV Core, WinRAR (40 days trial), DTS Audio Processing

Width

24.4 cm

Depth

24.4 cm
