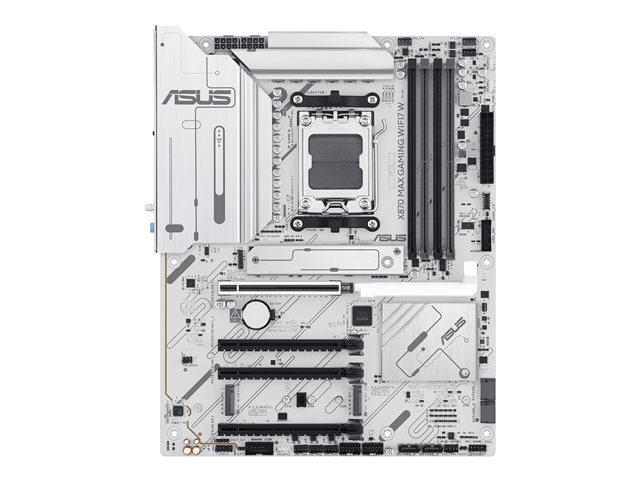

ASUS X870 MAX GAMING WIFI7 W

Name: ASUS X870 MAX GAMING WIFI7 W
Brand: ASUSTEK
SKU: ECE11808586
Price: 329.75 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1LZ0-M0EAY0) - (ECE11808586)

Model: ASUS

ASUS X870 MAX GAMING WIFI7 W - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Versatile connectivity options
Advanced memory support
Comprehensive networking capabilities
Robust power delivery system
Enhanced protection features

HOT

FREE Delivery on orders over €250

6 Available to Ship
Order within 5Hrs 20Mins for: FREE Delivery (8 Jun or 9 Jun)

Was €336.60 -2%

€329.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS X870 MAX GAMING WIFI7 W motherboard is engineered for performance and expandability, designed to support the needs of gamers and high-performance users. With a robust AMD X870 chipset and compatibility with Ryzen 7000/8000/9000 Series processors, this motherboard offers memory support with four DIMM slots for DDR5 SDRAM, ensuring connectivity of up to 4000 MHz. It includes features like AMD RAID Xpert2 Technology and supports multiple M.2 storage options, making it easy to enhance storage capabilities. Networking options are expansive with dual 2.5 Gigabit Ethernet ports and Wi-Fi 7 support, enabling rapid data transfer and seamless online gaming experiences. The ASUS EZ DIY features simplify setup and maintenance, while enhanced protection mechanisms like ASUS SafeSlot and TUF LANGuard ensure reliability. With various connectivity options, including USB4 and HDMI, the X870 MAX GAMING WIFI7 W is suitable for building a future-proof gaming rig.

Specification Summary

Product Description

ASUS X870 MAX GAMING WIFI7 W - motherboard - ATX - Socket AM5 - AMD X870

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

2 x USB4 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711636007856

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 2 x M.2 socket (2280 M.2 slot) ¦ M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), 12+2+1 Phase Power Design, CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 16+2+1 Phase Power Design, AI Overclocking, AI Cooling II, AI Networking II, chipset heatsink, AMD Precision Boost Overdrive (PBO), 8 Layer PCB

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, 2 x M.2 rubber package, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Width

30.5 cm

Depth

24.4 cm
