ASUS X870 MAX GAMING WIFI7 - motherboard - ATX - S

Images Manuals

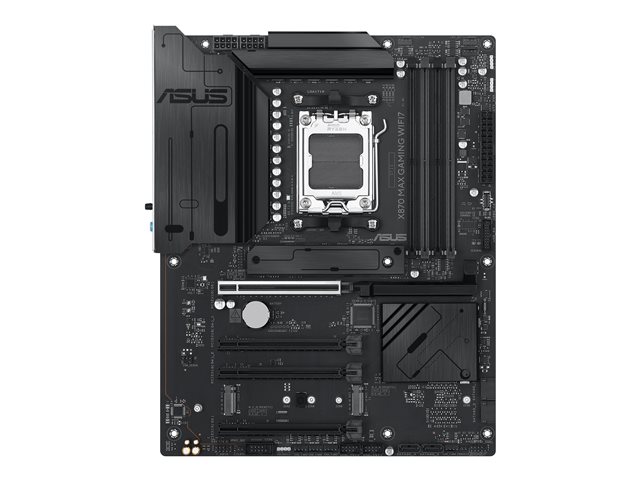

Images for illustrative purposes

ASUS X870 MAX GAMING WIFI7

Name: ASUS X870 MAX GAMING WIFI7
Brand: ASUSTEK
SKU: ECE11808585
Price: 284.45 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1LY0-M0EAY0) - (ECE11808585)

Model: ASUS

ASUS X870 MAX GAMING WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Processor Support
Expansion Options
High-Speed Connectivity
Thermal Management
Customizable Lighting

FREE Delivery on orders over €250

2 Available to Ship
Order within 1Hrs 30Mins for: FREE Delivery (7 Aug or 10 Aug)

Was €314.89 -10%

€284.45 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS X870 MAX GAMING WIFI7 motherboard offers a robust foundation for gaming and computing performance. Equipped with support for Ryzen 7000/8000/9000 Series processors, this motherboard utilizes the AMD X870 chipset and provides an array of features that ensure fast data processing and an enhanced user experience. With support for DDR5 RAM running up to 4000 MHz, users can enjoy faster load times and better multitasking capabilities.

Connectivity is optimized with a range of high-speed options, including multiple USB ports, 2.5 Gigabit Ethernet, and Wi-Fi 7 technology. For gamers and professionals seeking reliability, this motherboard includes features such as ASUS Q-Design for easy installation, extensive thermal management options, and ASUS Aura Sync for customizable RGB lighting. Whether building a new system or upgrading an existing setup, the X870 MAX GAMING WIFI7 offers the necessary tools to achieve high performance in any computing task.

Features Summary

Processor Support
Compatible with Ryzen 7000/8000/9000 Series processors, ensuring optimal performance for gaming and demanding applications.
Expansion Options
Features various expansion slots including 4 PCIe slots and M.2 connectors for increased storage and graphics capabilities.
High-Speed Connectivity
Offers USB 3.2 Gen 2, USB-C, and 2.5 Gigabit Ethernet for rapid data transfers and network access.
Thermal Management
Includes features like a dedicated heatsink design and M.2 heatsink to prevent overheating and maintain performance.
Customizable Lighting
ASUS Aura Sync compatibility allows for personalized RGB lighting setups that enhance the aesthetic of any build.

Specification Summary

Product Description

ASUS X870 MAX GAMING WIFI7 - motherboard - ATX - Socket AM5 - AMD X870

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

2 x USB4 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711636007849

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 2 x M.2 socket (2280 M.2 slot) ¦ M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), 12+2+1 Phase Power Design, CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 16+2+1 Phase Power Design, AI Overclocking, AI Cooling II, AI Networking II, chipset heatsink, AMD Precision Boost Overdrive (PBO), 8 Layer PCB

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, 2 x M.2 rubber package, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Width

30.5 cm

Depth

24.4 cm
