ASUS B850M MAX GAMING WIFI - motherboard - micro A

Images Manuals

Images for illustrative purposes

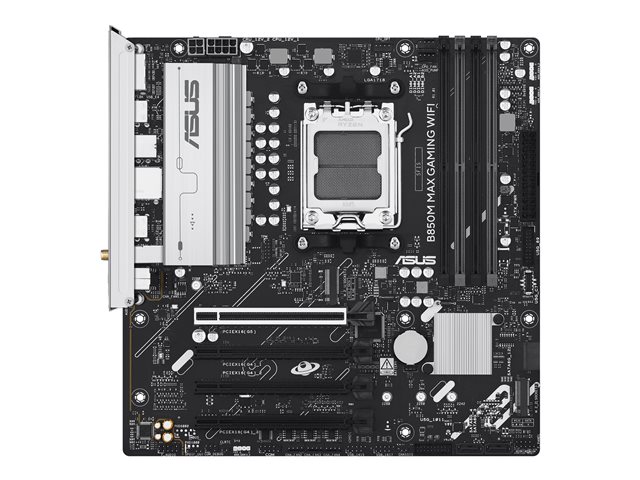

ASUS B850M MAX GAMING WIFI

Name: ASUS B850M MAX GAMING WIFI
Brand: ASUSTEK
SKU: WCE90MB1LL0M0EAY0
Price: 165.98 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1LL0-M0EAY0) - (WCE90MB1LL0M0EAY0)

5.0(2)

Model: ASUS

ASUS B850M MAX GAMING WIFI - motherboard - micro ATX - Socket AM5 - AMD B850

Versatile connectivity options
Efficient cooling design
Reliable RAID performance
Advanced audio capabilities
Future-proof your system

FREE Delivery on orders over €250

10 Available to Ship
Order within 3Hrs 51Mins for: Delivery (11 Aug or 12 Aug)

Was €169.75 -2%

€165.98 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS B850M MAX GAMING WIFI motherboard is designed to meet the needs of gamers and tech enthusiasts alike. With support for AMD Ryzen processors, including Ryzen 7000, 8000, and 9000 Series, this motherboard ensures compatibility and performance. The micro ATX form factor fits easily into various case sizes, while the DDR5 SDRAM support allows for faster data processing speeds, enhancing system performance during gaming and productivity tasks. Connectivity options are abundant, featuring multiple USB ports including USB-C 3.2 Gen 2 and high-speed Ethernet for reliable networking. The robust power design with 8+2+1 phase delivers stability, and ASUS DIGI+ VRM technology optimizes performance while maintaining temperature levels. Upgrading is hassle-free, thanks to ASUS EZ Flash 3 and BIOS FlashBack features, allowing users to keep their systems current without complications. With the B850M MAX GAMING WIFI, experience a balance of performance, versatility, and ease of use.

Specification Summary

Product Description

ASUS B850M MAX GAMING WIFI - motherboard - micro ATX - Socket AM5 - AMD B850

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax, Bluetooth 5.4, Gigabit Ethernet

Specifications

EAN / GTIN:

4711636062343

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8000 MT/s (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax, Bluetooth 5.4, Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 3 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 5 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, 8+2+1 Phase Power Design, chipset heatsink, 6 Layer PCB

Miscellaneous

Included Accessories

ASUS Wi-Fi moving aerial, 2 x M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial)

Width

24.4 cm

Depth

24.4 cm
