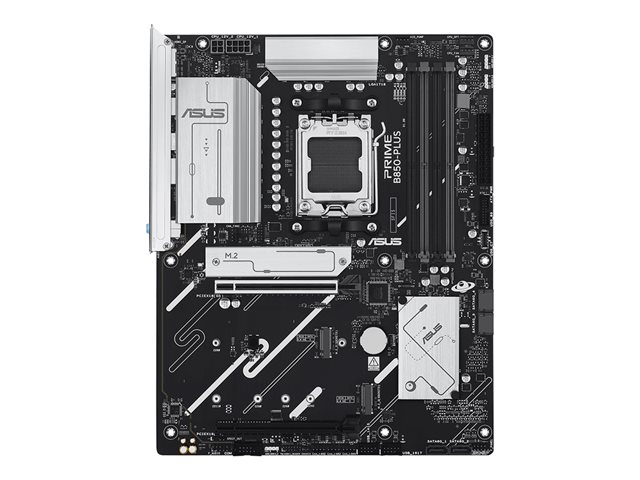

ASUS PRIME B850-PLUS-CSM

Name: ASUS PRIME B850-PLUS-CSM
Brand: ASUSTEK
SKU: WCE90MB1LC0M0EAYC
Price: 189.75 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1LC0-M0EAYC) - (WCE90MB1LC0M0EAYC)

Model: ASUS

ASUS PRIME B850-PLUS-CSM - motherboard - ATX - Socket AM5 - AMD B850

Robust connectivity options
Efficient thermal management
Advanced audio capabilities
User-friendly BIOS features
Networking flexibility

FREE Delivery on orders over €250

16 Available to Ship
Order within 13Hrs 1Mins for: Delivery (8 Jun or 9 Jun)

€189.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS PRIME B850-PLUS-CSM is a versatile motherboard designed for high-performance computing. This ATX form factor board supports the AMD B850 chipset and is compatible with Ryzen 7000/8000/9000 Series processors, allowing for advanced processing capabilities. It features 4 DIMM slots supporting DDR5 SDRAM at speeds of up to 4000 MHz (O.C.), ensuring ample room for memory expansion and efficient operation.

Equipped with multiple USB interfaces, including USB 3.2 Gen 2 and USB-C options, the motherboard ensures swift data transfer and connectivity for various peripherals. The integrated 2.5 Gigabit Ethernet provides enhanced networking capabilities, making it suitable for casual users and gamers. With its cooling features, including an M.2 heatsink and VRM heatsink design, the ASUS PRIME B850-PLUS-CSM enables optimal thermal performance during intense tasks, offering a reliable foundation for any build.

Specification Summary

Product Description

ASUS PRIME B850-PLUS-CSM - motherboard - ATX - Socket AM5 - AMD B850

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet

Specifications

EAN / GTIN:

4711387982037

General

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8000 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

AMD EXPO technology, dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack

Internal Interfaces

6 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x Thunderbolt 4 - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, LANGuard, M.2 heatsink, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, 8+2+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP), chipset heatsink, 6 Layer PCB

Miscellaneous

Included Accessories

1 x M.2 rubber package, 3 x M.2 SSD screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 2+, ASUS GlideX, Norton 360 Deluxe (60 days trial), TurboV Core, WinRAR (40 days trial)

Width

30.5 cm

Depth

24.4 cm
