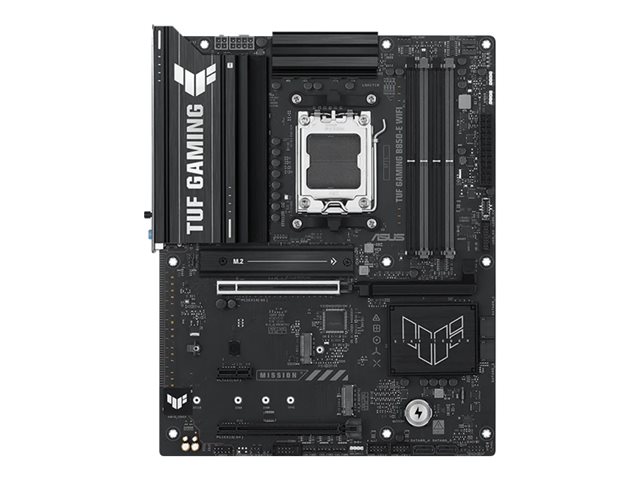

ASUS TUF GAMING B850-E WIFI

Name: ASUS TUF GAMING B850-E WIFI
Brand: ASUSTEK
SKU: WCE90MB1L20M0EAY0
Price: 205.63 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1L20-M0EAY0) - (WCE90MB1L20M0EAY0)

Model: ASUS

ASUS TUF GAMING B850-E WIFI - motherboard - ATX - Socket AM5 - AMD B850

Reliable connectivity
Enhanced audio experience
Advanced storage capabilities
Robust build quality
Easy installation features

HOT

FREE Delivery on orders over €250

1 Available to Ship
Order within 12Hrs 17Mins for: Delivery (25 Jun or 26 Jun)

€205.63 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS TUF GAMING B850-E WIFI motherboard is a solid foundation for building a powerful gaming system. Featuring an AMD B850 chipset, it supports AMD Ryzen 7000/8000/9000 series processors and offers 4 DIMM slots for DDR5 SDRAM with speeds up to 4000 MHz. This motherboard ensures a high-definition audio experience with the Realtek ALC1220P audio codec, providing an 8-channel output that enhances immersive gameplay and media consumption. With several connectivity options, the motherboard includes multiple USB ports, including USB-C 3.2 Gen 2 for fast data transfer. The integrated 2.5 Gigabit Ethernet and Wi-Fi 6E support deliver high-speed Internet connectivity, essential for online gaming and streaming. Additionally, the motherboard is designed with hardware features such as ASUS TUF Protection and ESD Guards, ensuring longevity and reliability in demanding environments.

Specification Summary

Product Description

ASUS TUF GAMING B850-E WIFI - motherboard - ATX - Socket AM5 - AMD B850

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.3

Specifications

EAN / GTIN:

4711387987544

General

Product Type

Motherboard - ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220P

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.3

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x Thunderbolt 4 - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 14+1+2 Phase Power Design, DIY Friendly Design, 8 Layer PCB, TUF 5K black metallic capacitors, chipset heatsink, enlarged M.2 heatsink, Preboot eXecution Environment (PXE)

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, TUF GAMING sticker, 2 x M.2 rubber package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)

Compliant Standards

DisplayPort 1.4

Width

30.5 cm

Depth

24.4 cm
