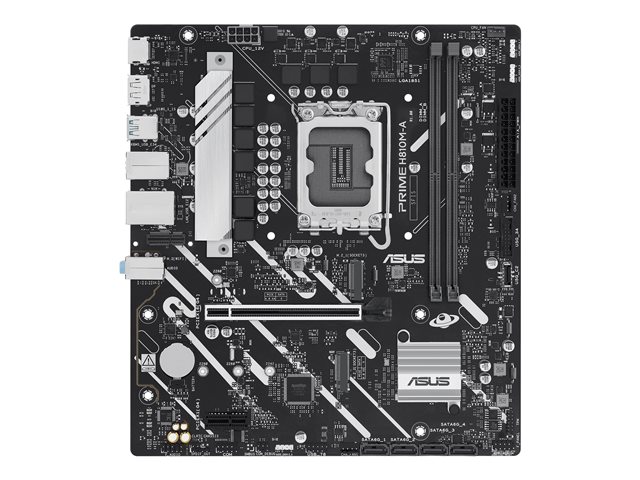

ASUS PRIME H810M-A-CSM

Name: ASUS PRIME H810M-A-CSM
Brand: ASUSTEK
SKU: WCE90MB1KK0M0EAYC
Price: 104.72 EUR
Availability: InStock

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1KK0-M0EAYC) - (WCE90MB1KK0M0EAYC)

Model: ASUS

ASUS PRIME H810M-A-CSM - motherboard - micro ATX - LGA1851 Socket - H810

Versatile memory capacity
Ample expansion capabilities
Robust connectivity options
High definition audio support
User-centric design features

FREE Delivery on orders over €250

20 Available to Ship
Order within 21Hrs 1Mins for: Delivery (13 Aug or 14 Aug)

Was €107.33 -2%

€104.72 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS PRIME H810M-A-CSM motherboard is engineered to support a range of Intel Core Ultra processors, bringing impressive performance and versatile connectivity to your computing experience. With its micro ATX form factor, this motherboard is designed for compact builds without compromising on functionality. Featuring support for DDR5 SDRAM with speeds of up to 3200 MHz and dual-channel memory architecture, it ensures fast and efficient data processing capabilities. Connectivity is a strong suit of the PRIME H810M-A-CSM, as it offers multiple ports, including USB 3.2 Gen 2 and HDMI for high-quality video output. The motherboard also comes equipped with high definition audio and a variety of expansion slots, facilitating easy upgrades. Features like ASUS Q-Design and CrashFree BIOS 3 simplify management and maintenance, allowing for a smooth user experience.

Features Summary

Versatile memory capacity
Supports up to 2 DIMM slots for DDR5 SDRAM, allowing for dual-channel memory architecture and speeds of 3200 MHz.
Ample expansion capabilities
Includes multiple expansion slots, such as PCIe 4.0 x16 and M.2 slots, enabling various upgrade options.
Robust connectivity options
Features a range of connectivity options including USB 3.2 Gen 2, HDMI, and Gigabit Ethernet for comprehensive networking and device connections.
High definition audio support
Compliant with high definition audio standards, providing an enhanced audio output experience with up to 8 channels.
User-centric design features
Incorporates ASUS Q-Design, CrashFree BIOS 3, and enhanced protection features for easy system management and safety.

Specification Summary

Product Description

ASUS PRIME H810M-A-CSM - motherboard - micro ATX - LGA1851 Socket - H810

Product Type

Motherboard - micro ATX

Chipset Type

Intel H810

Processor Socket

1 x LGA1851 Socket

Compatible Processors

(supports Intel Core Ultra processors (Series 2))

Max RAM Size

128 GB

RAM Supported

2 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports

2 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4711387844625

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel H810

Processor Socket

LGA1851 Socket

Max Processors Qty

Compatible Processors

(supports Intel Core Ultra processors (Series 2))

Supported RAM

Max Size

128 GB

Technology

DDR5

Bus Clock

3200 MHz

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Controller

Intel I219V

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2280 M.2 slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E, for wireless module)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2

Interfaces

2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

ASUS EFI BIOS, ASUS EZ Flash

Sleep / Wake Up

Wake on LAN (WOL)

Hardware Features

ASUS Enhanced Memory Profile (AEMP) II, Intel Turbo Boost Max Technology 3.0, 6+1+1+1 Phase Power Design, Intel Turbo Boost Technology 2.0, VRM heatsink design, Q-Slot, Q-DIMM, Q-Dashboard, Q-LED Core, ASUS Q-Design, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS 5X Protection III, CrashFree BIOS 3

Miscellaneous

Included Accessories

IO shield, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial)

Width

24.4 cm

Depth

22.2 cm
