EAN / GTIN:
4711387766163
Product Type

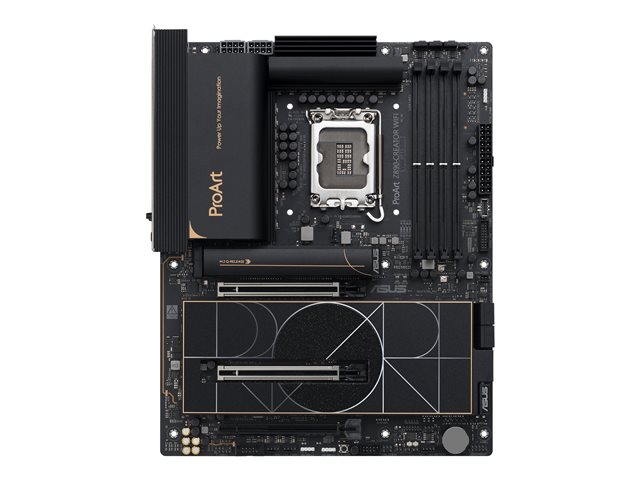

Motherboard - ATX
Processor Socket
LGA1851 Socket
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Bus Clock
4533 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 4 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x Thunderbolt 4 ¦ 2 x Thunderbolt 5 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x DisplayPort input ¦ 1 x HDMI ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial
Internal Interfaces
2 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, CUDIMM support, ASUS Enhanced Memory Profile (AEMP) III, BIOS FlashBack button, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, Clear CMOS Button, CPU Socket lever protector, ESD Guards, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, pre-mounted I/O shield, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED, Q-Release Slim, VRM heatsink design, 16+1+2+2 Phase Power Design, NPU Boost, AI Overclocking, AI Cooling II, AI Networking II, PCIe Slot Q-Release, 8 Layer PCB, ProCool II Power Connector
Included Accessories
ASUS Wi-Fi Q-antenna, Q-Connector, 2 x M.2 Q-Latch, 2 x M.2 rubber package, ACC Express Activation Key Card, ASUS ProArt accessory bag
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, ASUS ProArt Creator Hub, TurboV Core, USB Wattage Watcher, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS Control Center Express
Compliant Standards
DisplayPort 2.1
