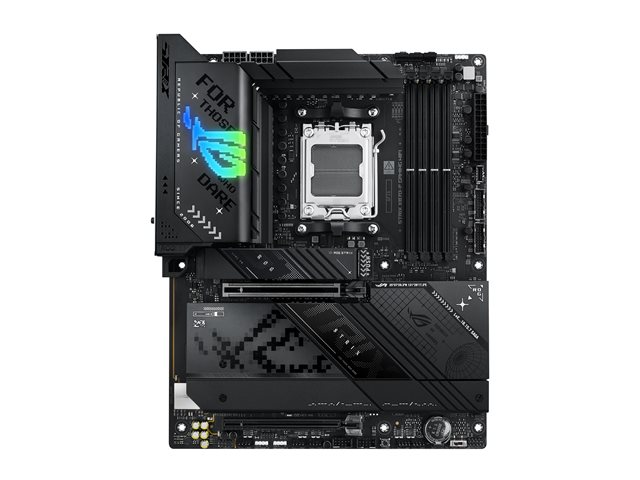

ASUS ROG STRIX X870-F GAMING WIFI

Name: ASUS ROG STRIX X870-F GAMING WIFI
Brand: ASUSTEK
SKU: WCE90MB1IV0M0EAY0
Price: 479.75 EUR
Availability: InStock
Rating: 4.7 (4 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1IV0-M0EAY0) - (WCE90MB1IV0M0EAY0)

4.7(4)

Model: ASUS

ASUS ROG STRIX X870-F GAMING WIFI - motherboard - ATX - Socket AM5 - AMD X870

Robust connectivity options
Efficient cooling solutions
High-performance audio
User-friendly design
Expandable architecture

FREE Delivery on orders over €250

10 Available to Ship
Order within 18Hrs 42Mins for: FREE Delivery (12 Jun or 15 Jun)

€479.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS ROG STRIX X870-F GAMING WIFI motherboard offers a powerful platform for gamers and PC enthusiasts. With support for the AMD X870 chipset, this motherboard is compatible with Ryzen 7000, 8000, and 9000 Series processors, allowing for performance and versatility. The motherboard features four DIMM slots that support DDR5 SDRAM with speeds up to 4000 MHz, ensuring smooth multitasking and rapid data access. An array of connectivity options, including USB 3.2 Gen 2, Thunderbolt 4, and PCIe 5.0, enhance the overall functionality and expandability of your system. The onboard high-definition audio and support for Dolby Atmos deliver immersive sound quality for gaming and multimedia experiences. With advanced cooling solutions, such as the M.2 heatsink and AI Cooling II technology, users can maintain optimal temperatures even under heavy loads. Additionally, the inclusion of ASUS Aura Sync allows for customizable RGB lighting to match your unique style. The DIY-friendly design and features like Q-DIMM and Q-LED make installation and upgrades seamless.

Specification Summary

Product Description

ASUS ROG STRIX X870-F GAMING WIFI - motherboard - ATX - Socket AM5 - AMD X870

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

2 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 5 USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711387732045

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio, Dolby Atmos

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 5 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 5K Black Metallic Capacitors, ASUS Extreme Engine Digi+, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Release Slim, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, Start button, LANGuard, AI Cooling II, AI Networking II, AI Overclocking, DIY Friendly Design, 16+2+2 Phase Power Design, chipset heatsink, Core Flex technology, AMD Precision Boost Overdrive (PBO)

Miscellaneous

Included Accessories

4 x M.2 rubber package, ASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, thermal pad for M.2 SSD

Cables Included

2 x Serial ATA cable

Software Included

Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Compliant Standards

DisplayPort 1.4

Width

30.5 cm

Depth

24.4 cm
