ASUS TUF GAMING X870-PLUS WIFI - motherboard - ATX

Images Manuals

Images for illustrative purposes

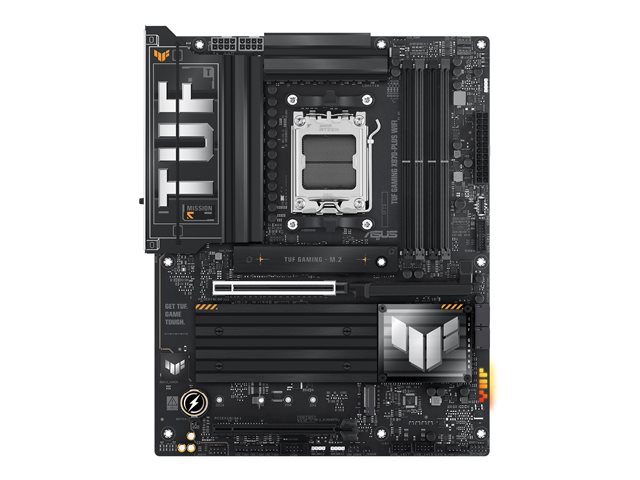

ASUS TUF GAMING X870-PLUS WIFI

Name: ASUS TUF GAMING X870-PLUS WIFI
Brand: ASUSTEK
SKU: ECE10455591
Price: 339.75 EUR
Availability: InStock
Rating: 4.5 (123 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1IU0-M0EAY0) - (ECE10455591)

4.5(123)

Model: ASUS

ASUS TUF GAMING X870-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Powerful connectivity options
Robust audio capabilities
Efficient cooling design
Versatile expansion slots
User-friendly BIOS features

FREE Delivery on orders over €250

62 Available to Ship
Order within 1Hrs 18Mins for: FREE Delivery (7 Aug or 10 Aug)

€339.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS TUF GAMING X870-PLUS WIFI motherboard offers a platform for building a gaming rig. Equipped with a socket AM5 processor interface, this motherboard supports Ryzen 7000/8000/9000 Series processors, ensuring compatibility with a range of components. With up to 4 DIMM slots supporting DDR5 SDRAM and clock speeds of up to 4000 MHz (O.C.), this motherboard caters to those seeking enhanced memory performance. Featuring multiple expansion slots including PCIe 5.0 x16 and M.2 Key M slots, the TUF GAMING X870-PLUS provides ample opportunities for upgrades and customization. The board includes connectivity options such as 2.5 Gigabit Ethernet, USB4, and Wi-Fi 7 capabilities, ensuring fast and reliable networking. This motherboard is designed with durability in mind, featuring ESD Guards, a steel backplate, and ASUS TUF Protection for longevity and performance stability.

Specification Summary

Product Description

ASUS TUF GAMING X870-PLUS WIFI - motherboard - ATX - Socket AM5 - AMD X870

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

2 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports

2 x USB4 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711387723609

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220P

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI ¦ 2 x aerial ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 3 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x serial - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 16+2+1 Phase Power Design, AI Overclocking, AI Cooling II, AI Networking II, chipset heatsink, AMD Precision Boost Overdrive (PBO), 8 Layer PCB

Miscellaneous

Included Accessories

2 x M.2 rubber package, ASUS Wi-Fi Q-antenna, M.2 screw package, TUF GAMING sticker

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Width

30.5 cm

Depth

24.4 cm
