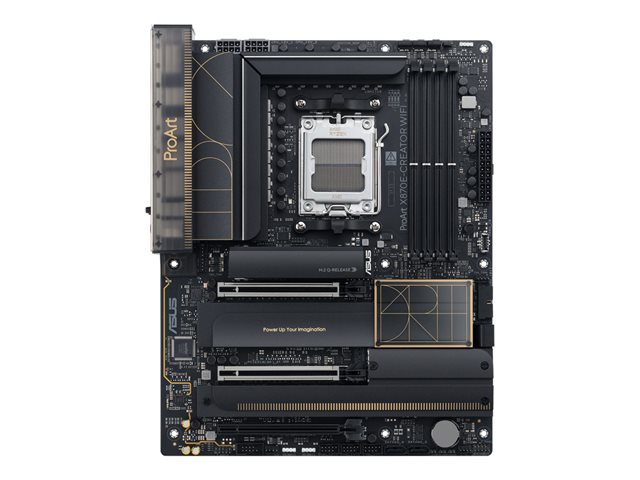

ASUS ProArt X870E-CREATOR WIFI - motherboard - ATX

Images Manuals

Images for illustrative purposes

ASUS ProArt X870E-CREATOR WIFI

Name: ASUS ProArt X870E-CREATOR WIFI
Brand: ASUSTEK
SKU: WCE90MB1IG0M0EAY0
Price: 569.75 EUR
Availability: InStock
Rating: 4.5 (123 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1IG0-M0EAY0) - (WCE90MB1IG0M0EAY0)

4.5(123)

Model: ASUS

ASUS ProArt X870E-CREATOR WIFI - motherboard - ATX - Socket AM5 - AMD X870E

Robust expansion support
Exceptional audio capabilities
Versatile connectivity options
Future-ready networking

FREE Delivery on orders over €250

37 Available to Ship
Order within 12Hrs 22Mins for: FREE Delivery (25 Jun or 26 Jun)

€569.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS ProArt X870E-CREATOR WIFI motherboard serves as a foundation for building powerful systems tailored for content creators and professional applications. This ATX motherboard supports AMD Ryzen processors, enhancing versatility within demanding computing environments. The ability to utilize DDR5 SDRAM at speeds up to 4000 MHz (O.C.) ensures that this motherboard meets the performance requirements of modern computing tasks. With a variety of expansion slots, including 4 DIMM slots and multiple M.2 connectors, it is designed for those who require extensive upgrade options and storage capabilities.

Designed with connectivity in mind, the ProArt X870E-CREATOR WIFI features an array of ports including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and both 10 Gigabit and 2.5 Gigabit Ethernet options. High definition audio capabilities, supported by the Realtek ALC1220P codec, deliver sound quality suitable for audio production or immersive gaming experiences. Moreover, built-in support for Wi-Fi 7 ensures that the motherboard remains capable of keeping pace with emerging wireless technologies.

Specification Summary

Product Description

ASUS ProArt X870E-CREATOR WIFI - motherboard - ATX - Socket AM5 - AMD X870E

Product Type

Motherboard - ATX

Chipset Type

AMD X870E

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet, Bluetooth 5.4

Specifications

EAN / GTIN:

4711387730775

General

Product Type

Motherboard - ATX

Chipset Type

AMD X870E

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4000 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Registered or Buffered

Unbuffered

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220P

Compliant Standards

High Definition Audio

LAN

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet, Bluetooth 5.4

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x DisplayPort input ¦ 1 x HDMI ¦ 2 x aerial ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool, ASUS Q-Connector, ASUS SafeDIMM, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, Q-Antenna, Q-DIMM, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, VRM heatsink design, 16+2+2 Phase Power Design, Core Flex technology, 8 Layer PCB, AI Cooling II, AI Networking II, AI Overclocking

Miscellaneous

Included Accessories

ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 Q-Slide, Q-Connector, thermal pad for M.2 SSD, 2 x M.2 rubber package, ASUS ProArt ruler, ACC Express Activation Key Card

Cables Included

4 x Serial ATA cable

Software Included

ASUS Control Center Express, Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS ProArt Creator Hub, CreationFirst, Norton 360 Deluxe (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Compliant Standards

DisplayPort 1.4

Width

30.5 cm

Depth

24.4 cm
