ASUS PRIME A620AM-K - motherboard - micro ATX - So

Images Manuals

Images for illustrative purposes

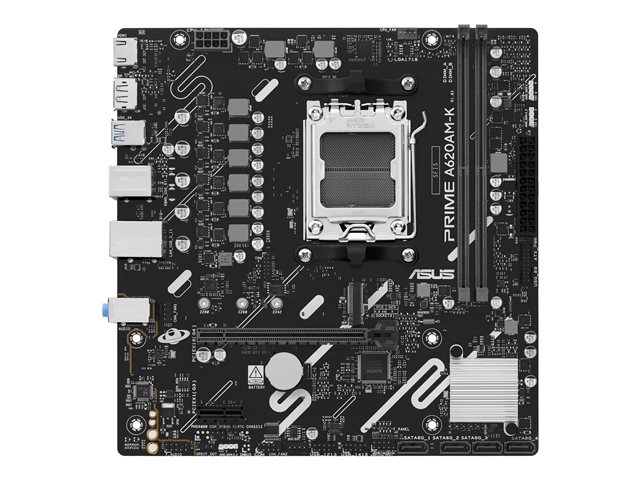

ASUS PRIME A620AM-K

Name: ASUS PRIME A620AM-K
Brand: ASUSTEK
SKU: ECE11914539
Price: 95.66 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1GX0-M0EAY0) - (ECE11914539)

Model: ASUS

ASUS PRIME A620AM-K - Motherboard - micro ATX - Socket AM5 - AMD A620A Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Versatile expansion capabilities
High-performance memory support
Robust connectivity options
Integrated high definition audio
Enhanced protection features

FREE Delivery on orders over €250

30 Available to Ship
Order within 5Hrs 53Mins for: Delivery (17 Aug or 18 Aug)

€95.66 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS PRIME A620AM-K motherboard is designed to accommodate high-performance computing. With support for Ryzen processors and dual-channel memory architecture, it ensures efficient multitasking while maintaining high speed with DDR5 SDRAM technology, capable of speeds up to 7600 MT/s with overclocking. Its micro ATX form factor and versatile expansion slots, including two M.2 Key M slots, enable customization for various system builds and storage options. Connectivity is enhanced with multiple USB ports, including USB 3.2 Gen 1 and USB 2.0, alongside HDMI and DisplayPort for high-quality audio and video output. The motherboard includes features like ASUS Aura Sync for customizable RGB lighting and ASUS SafeSlot Core for graphics card protection. The integrated high definition audio system provides an 8-channel output for an immersive multimedia experience.

Features Summary

Versatile expansion capabilities
The ASUS PRIME A620AM-K motherboard features multiple expansion slots including two M.2 Key M slots and PCIe 4.0 x16, allowing for flexible storage and graphics card options to enhance system performance.
High-performance memory support
Equipped with support for dual-channel DDR5 SDRAM, the motherboard can achieve RAM speeds of up to 7600 MT/s when overclocked, ensuring efficient processing for demanding applications.
Robust connectivity options
This motherboard includes four USB 3.2 Gen 1 ports and two USB 2.0 ports, along with HDMI and DisplayPort interfaces, enabling diverse connection options for peripherals and displays.
Integrated high definition audio
The high definition audio output supports up to 8 channels, delivering clear sound quality for an immersive audio experience whether gaming or multimedia consumption.
Enhanced protection features
Designed with ASUS Q-Design and features like overvoltage protection and ASUS SafeSlot Core, the motherboard ensures durability and stability for ongoing system reliability.

Specification Summary

Product Description

ASUS PRIME A620AM-K - motherboard - micro ATX - Socket AM5 - AMD A620A

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620A

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Max RAM Size

128 GB

RAM Supported

2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4711636227988

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620A

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

128 GB

Technology

DDR5

Bus Clock

7200 MT/s (O.C.), 7600 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse

Internal Interfaces

1 x USB 3.2 Gen 1 - header ¦ 1 x USB 2.0 - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on PME

Hardware Features

Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, aluminium heatsink design, ASUS Aura Sync

Miscellaneous

Included Accessories

IO shield, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, WinRAR, Norton 360 Deluxe (60 days trial), ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AURA Creator, ASUS Fan Xpert

Width

22.6 cm

Depth

22.1 cm
