ASUS Prime A620M-E-CSM - motherboard - micro ATX -

Images Manuals

Images for illustrative purposes

ASUS Prime A620M-E-CSM

Name: ASUS Prime A620M-E-CSM
Brand: ASUSTEK
SKU: WCE90MB1F50M0EAYC
Price: 112.72 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1F50-M0EAYC) - (WCE90MB1F50M0EAYC)

Model: ASUS

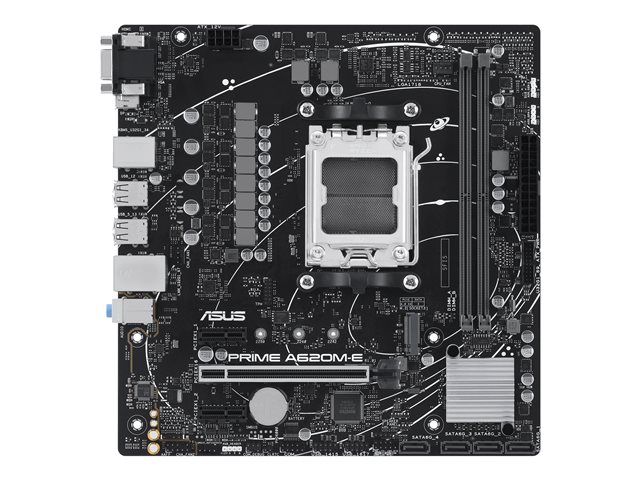

ASUS Prime A620M-E-CSM - motherboard - micro ATX - Socket AM5 - AMD A620

Enhanced connectivity
Robust audio experience
High-speed memory support
Advanced storage solutions
Durable design

FREE Delivery on orders over €250

100 Available to Ship
Order within 5Hrs 6Mins for: Delivery (7 Sep or 8 Sep)

€112.72 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS Prime A620M-E-CSM motherboard is designed to cater to the needs of today's users, offering a blend of performance, connectivity, and durability. With support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.), it sets the foundation for responsive multitasking and high-speed data processing. The motherboard is equipped with a variety of storage options, including M.2 sockets and Serial ATA-600 (RAID), allowing users to maximize their system's storage potential for fast data access and reliability.

Connectivity is a cornerstone of the Prime A620M-E-CSM, featuring HDMI, DisplayPort, VGA, and USB 3.2 Gen 1 ports to connect a wide array of peripherals and displays. This ensures that users can build a versatile and comprehensive system setup. The inclusion of high definition audio with an 8-channel sound card further enhances the multimedia experience, delivering clear sound quality for gaming, movies, and music.

Durability is not overlooked, with ASUS 5X Protection III and ASUS SafeSlot Core+ providing a solid foundation that ensures long-term system reliability and stability. This motherboard is an ideal choice for users looking to build a robust, high-performance PC setup that can handle a variety of tasks, from gaming to intensive computing applications.

Features Summary

Enhanced connectivity
With a variety of interfaces including HDMI, DisplayPort, VGA, and USB 3.2 Gen 1, this motherboard offers extensive connectivity options for a wide range of peripherals and displays.
Robust audio experience
Equipped with high definition audio and an 8-channel sound card, the Prime A620M-E-CSM delivers a rich audio experience, enhancing any gaming or multimedia setup.
High-speed memory support
Supporting DDR5 SDRAM with speeds up to 7200 MHz (O.C.), this motherboard allows for fast data transfer rates, making it ideal for high-performance computing tasks.
Advanced storage solutions
Featuring M.2 socket and Serial ATA-600 (RAID) storage interfaces, the motherboard provides flexible storage options and high-speed data access, supporting both traditional SATA drives and NVMe SSDs.
Durable design
Incorporating ASUS 5X Protection III and ASUS SafeSlot Core+, the motherboard is built to withstand daily use, ensuring reliability and stability.

Specification Summary

Product Description

ASUS Prime A620M-E-CSM - motherboard - micro ATX - Socket AM5 - AMD A620

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt)

Max RAM Size

96 GB

RAM Supported

2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4711387236772

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt)

Supported RAM

Max Size

96 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x SPDIF - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS Aura Sync, Preboot eXecution Environment (PXE), Q-DIMM, Q-LED Core, Q-Slot, ASUS Stainless Steel Back I/O, ASUS DIGI+ VRM, ASUS 5X Protection III, LANGuard, ASUS SafeSlot Core+, overvoltage protection, ASUS Q-Design, AURA RGB Lighting Control

Miscellaneous

Included Accessories

IO shield, M.2 screw package, ACC Express Activation Key Card

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR

Width

22.6 cm

Depth

22.1 cm
