ASUS PRIME A620M-A-CSM

Name: ASUS PRIME A620M-A-CSM
Brand: ASUSTEK
SKU: WCE90MB1F10M0EAYC
Price: 116.83 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1F10-M0EAYC) - (WCE90MB1F10M0EAYC)

Model: ASUS

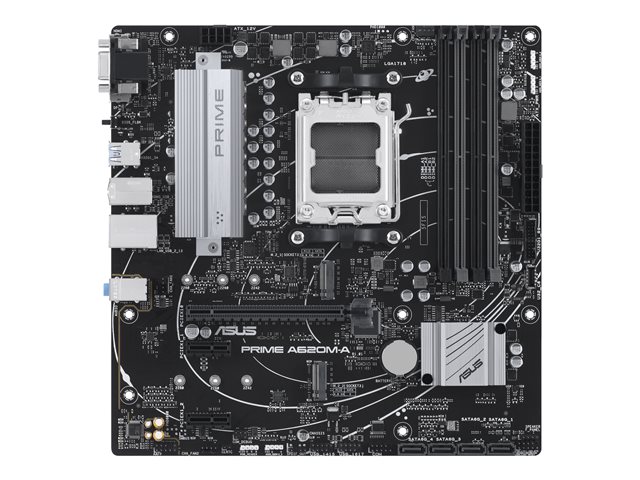

ASUS PRIME A620M-A-CSM - motherboard - micro ATX - Socket AM5 - AMD A620

All-around energy efficiency
Precise digital power control
VRM heatsink and thermal pad
Six-layer PCB design
DDR5 performance enhancement
ASUS OptiMem II
View More
PCIe 4.0 M.2 support
PCIe 4.0 slot
Front USB Type-C

FREE Delivery on orders over €250

30 Available to Ship
Order within 1Hrs 57Mins for: Delivery (12 Aug or 13 Aug)

€116.83 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Features Summary

All-around energy efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
VRM heatsink and thermal pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Six-layer PCB design
Multiple PCB layers optimize heat management for critical components to keep them at their optimal operating temperatures.
DDR5 performance enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME A620M-A-CSM, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
ASUS OptiMem II
Revisions to the motherboard's trace routing provide the processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
PCIe 4.0 M.2 support
Dual M.2 slots support up to PCle 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCle 4.0 storage devices to enjoy the fastest data transfer speeds.
PCIe 4.0 slot
PRIME A620M-A-CSM offers PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Front USB Type-C
A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5 Gbps.

Specification Summary

Product Description

ASUS PRIME A620M-A-CSM - motherboard - micro ATX - Socket AM5 - AMD A620

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4711387176405

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD A620

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC, ECC

Registered or Buffered

Unbuffered

Features

AMD EXPO technology, dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x SPI - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS OptiMem II, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, Lighting Control, ASUS Control Center Express (ACC Express), 6 Layer PCB

Miscellaneous

Included Accessories

ACC Express Activation Key Card, M.2 screw package, IO shield

Cables Included

2 x Serial ATA cable

Software Included

WinRAR, Norton 360 for Gamers (60 days trial), ASUS Control Center Express, ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 2+, ASUS AURA Creator, Armoury Crate

Width

24.4 cm

Depth

24.4 cm
