ASUS ROG STRIX B760-A GAMING WIFI - motherboard -

Images Manuals

Images for illustrative purposes

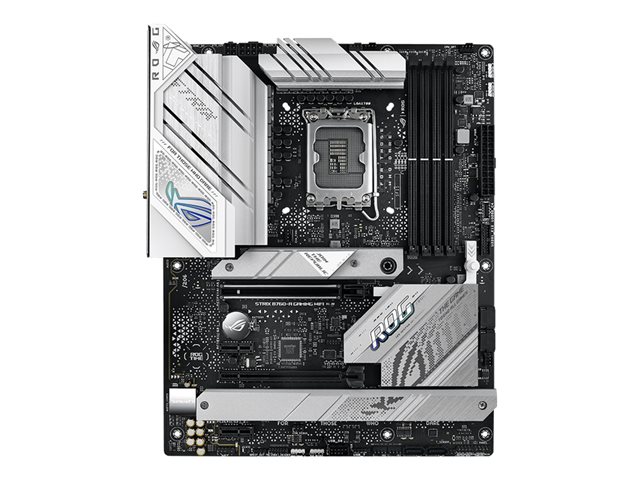

ASUS ROG STRIX B760-A GAMING WIFI

Name: ASUS ROG STRIX B760-A GAMING WIFI
Brand: ASUSTEK
SKU: WCE90MB1EP0M1EAY0
Price: 244.04 EUR
Availability: InStock
Rating: 4.5 (30 reviews)

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1EP0-M1EAY0) - (WCE90MB1EP0M1EAY0)

4.5(30)

Model: ASUS

ASUS ROG STRIX B760-A GAMING WIFI - motherboard - ATX - LGA1700 Socket - B760

All-round performance
Leading connectivity
Play in style
Software utilities

FREE Delivery on orders over €250

9 Available to Ship
Order within 3Hrs 40Mins for: Delivery (8 Jun or 9 Jun)

€244.04 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.

Features Summary

All-round performance
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast.
Leading connectivity
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
Play in style
Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.
Software utilities
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

Specification Summary

Product Description

ASUS ROG STRIX B760-A GAMING WIFI - motherboard - ATX - LGA1700 Socket - B760

Product Type

Motherboard - ATX

Chipset Type

Intel B760

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Specifications

EAN / GTIN:

4711387114063

General

Product Type

Motherboard - ATX

Chipset Type

Intel B760

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (ALC4080)

Compliant Standards

High Definition Audio, DTS Sound Unbound

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 2 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack

Internal Interfaces

1 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x SPDIF - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, CrashFree BIOS 3, ASUS EZ DIY, ASUS Aura Sync, BIOS FlashBack button, BIOS FlashBack LED, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, VRM heatsink design, Q-DIMM, Q-LED, Q-Slot, PCIe Slot Q-Release, M.2 Q-Latch, ASUS Q-Design, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, 12+1 Phase Power Design, LANGuard, 6 Layer PCB, Lighting Control

Miscellaneous

Included Accessories

Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, ROG stickers, ROG thank you card, 1 x M.2 rubber package

Cables Included

2 x Serial ATA cable

Software Included

MemTest86, WinRAR, Norton 360 for Gamers, Adobe Creative Cloud (free trial), MyAsus, PC Cleaner, ASUS AI Suite III, ASUS Fan Xpert 4, ASUS AURA Creator, AIDA64 Extreme (60 days trial), Armoury Crate, Sonic Radar III, ROG CPU-Z, ROG GameFirst VI, Sonic Studio Virtual Mixer, Sonic Suite Companion

Width

30.5 cm

Depth

24.4 cm
